Allen-Bradley ArmorStart Starter 280E-F23Z-25D-RR
Allen-Bradley 280E-F23Z-25D-RR - industrial components - Operating Temperature: -20 °C; Lifecycle Status: Discontinued; Build America, Buy America: No.
Allen-Bradley 280E-F23Z-25D-RR is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -20 °C and Lifecycle Status: Discontinued.
The specification set recorded for this part number covers Build America, Buy America: No; Repair Options Available: Yes; Degree of protection (IP): IP67; Degree of protection (NEMA): 4; Altitude: 2000 m; Mechanical life operations: Contactor C23 (AC-3): 13000000 ops per IEC; Number of poles: 3; Shipping weight, approx: 10.4 kg; Trip Class: Class 10, 15, 20; Tightening torque: Power and ground terminals: 4.5 in-lb per UL/NEMA (sary terminal); Application in industrial area permitted: true; Depth, approx: Motor connection 243 mm (9.57 in) M35 cordset. See the Specifications tab on this page for the full technical table.
| 3-phase power/motor cable connection | ArmorConnect power media connectivity with motor cable |
|---|---|
| Altitude | 2000 m |
| Application in industrial area permitted | true |
| Application in industrial area permitted (SCPD list) | Size per NFPA 70 (NEC) or NFPA 79 for group motor applications |
| Blocking voltage, max | Output ratings - sourced from control circuit (A1/A2): 35V DC |
| Build America, Buy America | No |
| Circuit breaker operational current rating, max | 60kA @ 480V (with gland type: RR) |
| Communication rate | Ethernet port: 10/100 Mbs with auto negotiate half duplex and full duplex |
| Conducted radio frequency emissions | 10V rms communications cables, 10V rms (PE), 150 kHz...80 MHz |
| Conection type | Quick disconnects |
| Configuration | Web server: status, diagnostics and configuration tabs |
| Conventional thermal current (Ith) | Output ratings - sourced from control circuit (A1/A2): 0.5 A each, 1 A maximum combined |
| Current available | Sensor source: 50 mA maximum per input, 200 mA for any single point |
| Cycle rate, max | Output ratings - sourced from control circuit (A1/A2): 30 ops/minute capacitive and inductive loads |
| Data | Ethernet port: transported over both TCP and UDP, minimum of 500 I/O packets/s (pps), supports up to 150 concurrent TCP sockets |
| Degree of protection (IP) | IP67 |
| Degree of protection (NEMA) | 4 |
| Depth, approx | Motor connection 243 mm (9.57 in) M35 cordset |
| Device connections | TCP port supports 5 concurrent incoming connections |
| Device level ring | Beacon-based performance including IEEE 1588 end to end transparent clock |
| DHCP timeout | Ethernet port: 30 s |
| Dielectric withstand | Power circuit: 2500V AC per IEC |
| Disconnect | Motor disconnect |
| Disconnect lock out | Recommend 8 mm (5/16 in) lock shackle or hasp. The hasp should not exceed 8 mm (5/16 in) when closed. |
| Web server: support simple mail transfer protocol (SMTP) | |
| Electrostatic discharge | 4 kV contact and 8 kV air |
| Ethernet receptacles | Ethernet port: 2 D-coded, 4-pin female M12 connectors |
| Fast transient | 2 kV (power), 2 kV (PE), 1 kV (communications and control) |
| Fault recovery | DLR: Ring recovery time is less than 3 ms for a 50 node network |
| Fuse operational current rating, max | 60kA @ 480V (with gland type: RR) |
| Height, approx | 287.5 mm |
| Humidity | 5...95% (noncondensing) |
| Input compatibility | Sourced from control circuit (A3/A2): IEC 1133 Type 1+ per IEC |
| Input filter - software selectable | Sourced from control circuit (A3/A2): settable from 0...64 ms in 1 ms increments (ON to OFF) |
| Input frequency response, max | Sourced from control circuit (A3/A2): 200 Hz (DeviceLogix response is greater than 200 Hz, network response depends on control system network performance.) |
| Input OFF-state current | Sourced from control circuit (A3/A2): <1.5 mA |
| Input OFF-state voltage | Sourced from control circuit (A3/A2): 0...5V DC |
| Input ON-state current | Sourced from control circuit (A3/A2): 7.2mA @ 24V DC |
| Input ON-state voltage | Sourced from control circuit (A3/A2): 10...26V DC |
| Insulation voltage | Power circuit: rated 600V |
| IP address | Ethernet port: DHCP enabled by default |
| Lifecycle Status | Discontinued |
| Load types | Output ratings - sourced from control circuit (A1/A2): resistive or light inductive |
| Mains frequency | 50/60 Hz |
| Mechanical life operations | Contactor C23 (AC-3): 13000000 ops per IEC |
| Module inrush current | EtherNet/IP version: 1.09 A (A1/A2 with HOA) |
| Module steady current | EtherNet/IP version: 0.3 A (A3/A2 without HOA) |
| Number of contacts | Output ratings - sourced from control circuit (A1/A2): 2 |
| Number of digital inputs | 4 |
| Number of digital outputs | 2 |
| Number of poles | 3 |
| Off-state leakage current, max | Output ratings - sourced from control circuit (A1/A2): 10 µA |
| On-state voltage @ max. output | Output ratings - sourced from control circuit (A1/A2): 1.5V DC |
| Operating frequency | Power circuit: 50/60 Hz |
| Operating Temperature | -20 °C |
| Operational power rating | Full voltage starters - IP67/NEMA Type 4: 7.5 kW @ 400V AC @ 50Hz |
| Option 1 | Status only keypad |
| Overload selection current range | 3.2 A |
| Overvoltage category | Control circuit: III per IEC |
| Peak output current | Output ratings - sourced from control circuit (A1/A2): current limited 2-8 A (5 A nominal) @ 24V DC |
| Pollution degree | 3 |
| Ports | Ethernet port: embedded switch with 2 ports |
| Product type | Full voltage starter |
| Protection against shock | Power circuit: IP2X per IEC |
| Radiated emissions | Class A, Group 1, equivalent to C2 emissions |
| Radio frequency electromagnetic field | 10V/m, 80 MHz...1 GHz, 3V/m, 1.4 GHz...2 GHz, 1V/m, 2.0 GHz...2.7 GHz |
| Rated impulse voltage | Power circuit: 6 kV |
| Rated input operation voltage | Sourced from control circuit (A3/A2): 24V DC |
| Rated operation voltage | Power circuit: 200...575V |
| Rated operational current | Power circuit: 16 A maximum |
| Rated output operation voltage | Output ratings - sourced from control circuit (A1/A2): 26.4V DC |
| Repair Options Available | Yes |
| RMS symmetrical amperes | 30 kA @ 480Y/277V (with gland type: RR) |
| Security | Web server: login and password configurable |
| Shipping weight, approx | 10.4 kg |
| Shock | opsal: 15 G |
| Short circuit protection | 25 A rated device |
| Short circuit protection device performance (SCPD) type | Type 1 |
| Short circuit rating | 30 kA |
| Storage and transportation temperature | -25 °C |
| Supporting protocol for EtherNet/IP | true |
| Surge suppression | Output ratings - sourced from control circuit (A1/A2): integrated diode, clA @ 35V DC |
| Surge transient | 1 kV (12) L-L, 2 kV (2) L-N (earth) |
| Thermo-protection | Output ratings - sourced from control circuit (A1/A2): integrated short circuit and over current protection |
| Tightening torque | Power and ground terminals: 4.5 in-lb per UL/NEMA (sary terminal) |
| Total control power (pick up) | EtherNet/IP version: 7.2 W (A3/A2 without HOA) |
| Total control power (running) | EtherNet/IP version: 7.2 W (A3/A2 without HOA) |
| Trip Class | Class 10, 15, 20 |
| Trip rating | 120% of full load current (FLC) setting |
| Type of contacts | Output ratings - sourced from control circuit (A1/A2): normally open (N.O.) |
| Type of control circuit | Output ratings - sourced from control circuit (A1/A2): solid state sourcing output |
| Type of current | Output ratings - sourced from control circuit (A1/A2): 24 DC |
| Utilization category | Power circuit: AC-3 per IEC |
| Vibration | opsal, 1 G, 0.15 mm (0.006 in) displacement |
| Voltage status only | Sensor source: 11...26.4V DC from unswitched power (A3-A2) |
| Web server | Embedded web server |
| Width, approx | 351 mm |
| Wire size | Power and ground terminals: #16... AWG per UL/NEMA (primary/sary terminal) |
| Wire strip length | Power and ground terminals: 0.35 in (9 mm) |
Frequently Asked Questions
How do I get pricing for 280E-F23Z-25D-RR?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 280E-F23Z-25D-RR?
280E-F23Z-25D-RR is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 280E-F23Z-25D-RR?
Key specifications include 3-phase power/motor cable connection: ArmorConnect power media connectivity with motor cable; Altitude: 2000 m; Application in industrial area permitted: true; Application in industrial area permitted (SCPD list): Size per NFPA 70 (NEC) or NFPA 79 for group motor applications. The full specification table on this page lists every published attribute for this part.
How quickly can 280E-F23Z-25D-RR ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley ArmorStart Repair Base Mod Starter 280E-FN-10-C

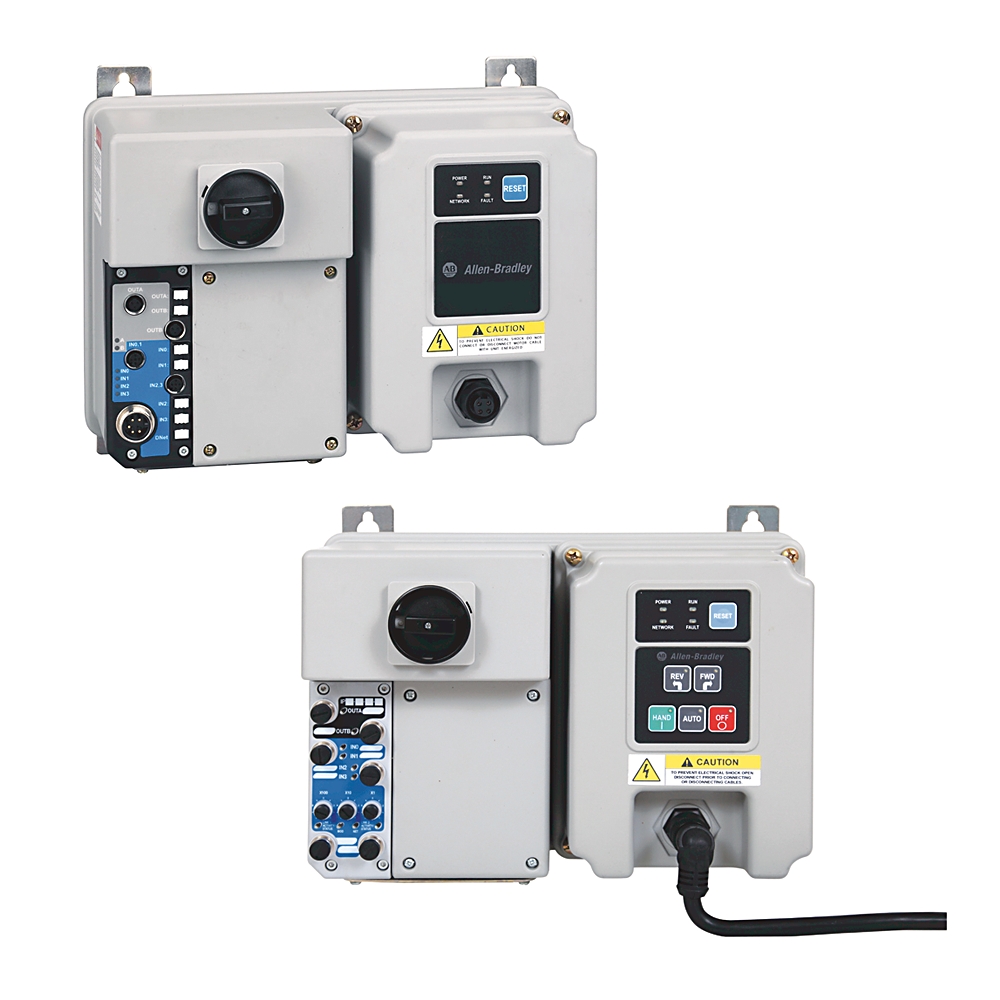

Allen-Bradley Allen-Bradley ArmorStart Starter 280E-F23Z-25D-RR-3
Allen-Bradley Allen-Bradley ArmorStart Reversing Starter 281D-F12D-10B-CR-3FR-SM

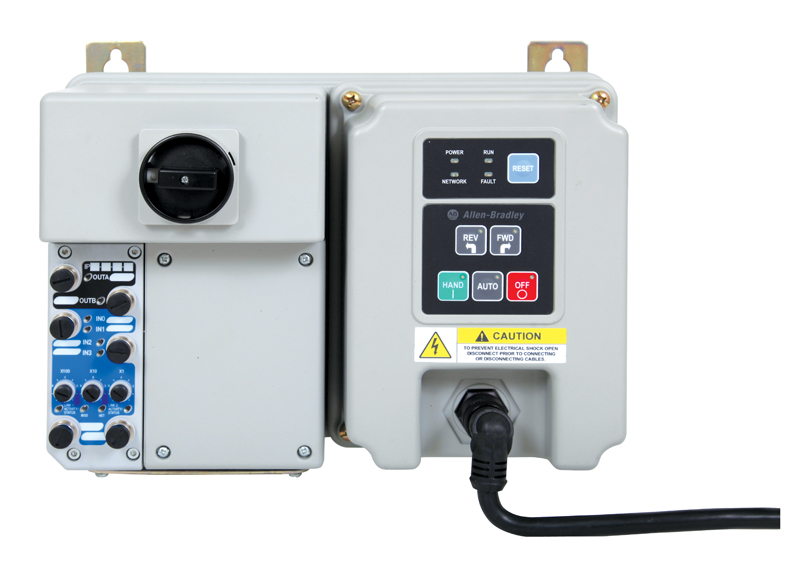

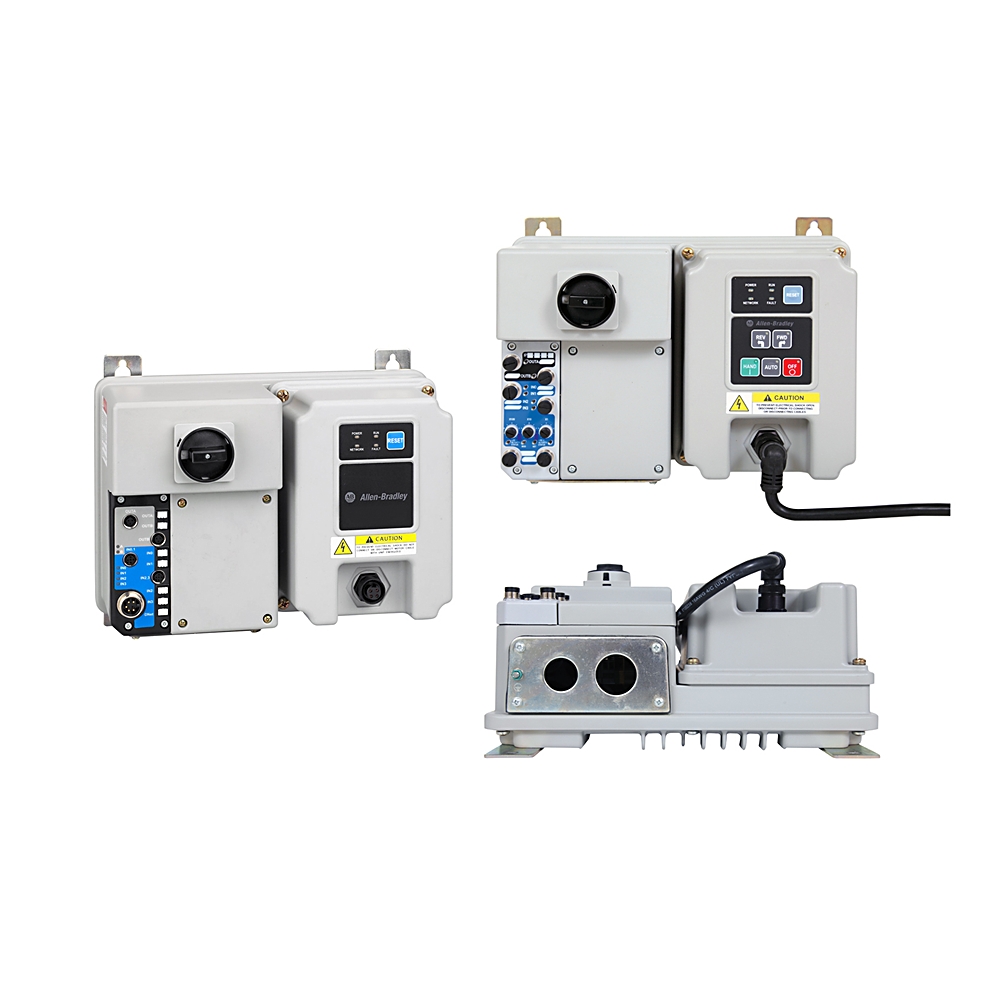

Allen-Bradley Allen-Bradley ArmorStart Starter 280E-F23Z-25D-DRW-3
