Allen-Bradley PanelView Plus 6 Graphic Terminal 2711P-K6M20D8
Allen-Bradley 2711P-K6M20D8 - HMI Panels - Operating Temperature: 0 °C; Relative Humidity: 5...95% noncondensing; Lifecycle Status: Discontinued.
Allen-Bradley 2711P-K6M20D8 is a HMI Panels catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: 0 °C and Relative Humidity: 5...95% noncondensing.
Key manufacturer data on file for this item includes Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: Yes; Rail mounting possible: false; Degree of protection (IP), front side: IP66; Number of HW-interfaces RS-232: 1; Number of HW-interfaces USB: 2; Shock: Operating: 15 G at 11 ms; Supporting protocol for CAN: false; Supporting protocol for DeviceNet: false; Supporting protocol for EtherNet/IP: false; Supporting protocol for Modbus: false. The complete technical table is shown in the Specifications tab on this page.
| Additional software components, loadable | true |
|---|---|
| Altitude, operating | 2000 m |
| Backlight | White LED, Not replaceable, 25,000 hr minimum at 25 °C (77 °F) |
| Battery (real-time clock) | Battery-backed clock timestA critical data, accuracy is ±2 min per month |
| Battery life | 4 yr minimum at 25 °C (77 °F) |
| Brightness | 440 cd/m2 (Nits) |
| Build America, Buy America | No |
| Built-in depth | 68 mm |
| Communication Ports | RS-232, 1 USB host, 1 USB device port |
| Cutout dimensions | 142 x 241 mm |
| Degree of protection (IP), front side | IP66 |
| Degree of protection (NEMA), front side | 4X |
| Description | PanelView Plus 6 - 600 terminals without extended features |
| Display area | 115 x 86 mm |
| Display size | 5.7 in |
| Display type | Grayscale TFT LCD |
| Enclosure rating | NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP66 |
| External storage | Secure Digital (SD) card, cat. no.1784-SDx, supported by hot-swappable SD card slot, USB flash drive that is supported by high-speed, hot-swappable, 2.0 USB host port |
| Heat dissipation | 85 btu/hr |
| Height of the front | 167 mm |
| Input Voltage | 18…30V DC (24V DC nominal) |
| IO link master | false |
| Keypad description | Stainless-steel membrane, Numeric, navigation and function keys |
| Keypad function keys | 10 function keys (F1...F10) |
| Keypad, actuation | 1 mon presses |
| Keypad, operating force | 340 |
| Lifecycle Status | Discontinued |
| List of degrees of protection (NEMA) | 12, 13, 4X |
| Memory | 256 MB RAM, 512 MB nonvolatile memory, (approx. 73 MB free user memory) |
| Nonoperating temperature | -25 °C |
| Number of grey-scales/blue-scales of display | 1 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces USB | 2 |
| Number of online languages | 20 |
| Number of password levels | 2 |
| Number of pixels, horizontal | 320 |
| Number of pixels, vertical | 240 |
| Operating system | Windows CE 6.0 operating system without extended features and Microsoft Office file viewers |
| Operating Temperature | 0 °C |
| Operator input | Keypad |
| Power consumption | 15 W max (0.6A @ 24V DC), 9 W typical (0.375A @ 24V DC) |
| Process default value (input) possible | true |
| Process value representation (output) possible | true |
| Radio standard Bluetooth | false |
| Radio standard GPRS | false |
| Radio standard GSM | false |
| Radio standard UMTS | false |
| Radio standard Wi-Fi 802.11 | false |
| Rail mounting possible | false |
| Recommended external power supply | Cat. no. 1606-XLE120E, SELV or PELV isolated power supply for non-isolated 400 and 600 DC-powered terminals, 100...240V AC @ 250VA max |
| Relative Humidity | 5...95% noncondensing |
| Repair Options Available | Yes |
| Screen diagonal | 5.7 in |
| Shock | Operating: 15 G at 11 ms |
| Software | FactoryTalk view machine edition software, version 6.10 or later, FactoryTalk viewpoint software is not supported on the 400 and 600 terminals |
| Suitable for safety functions | false |
| Supply voltage DC | 18 V |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for ASI | false |
| Supporting protocol for CAN | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for KNX | false |
| Supporting protocol for LON | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for TCP/IP | true |
| Touch technology | None |
| Type of display | TFT |
| Useful project memory/user memory | 73000 mb |
| Vibration | 10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 g peak acceleration |
| Voltage type of supply voltage | DC |
| Wall mounting/direct mounting | true |
| Weight, approx | 728 g |
| Width of the front | 266 mm |
| With alpha numeric keyboard | false |
| With colour display | false |
| With message indication | true |
| With message system (incl. buffer and confirmation) | true |
| With numeric keyboard | false |
| With printer output | true |
| With recipes | true |
| With SW interfaces | true |
Frequently Asked Questions
How do I get pricing for 2711P-K6M20D8?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 2711P-K6M20D8?
2711P-K6M20D8 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 2711P-K6M20D8?
Key specifications include Additional software components, loadable: true; Altitude, operating: 2000 m; Backlight: White LED, Not replaceable, 25,000 hr minimum at 25 °C (77 °F); Battery (real-time clock): Battery-backed clock timestA critical data, accuracy is ±2 min per month. The full specification table on this page lists every published attribute for this part.
How quickly can 2711P-K6M20D8 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

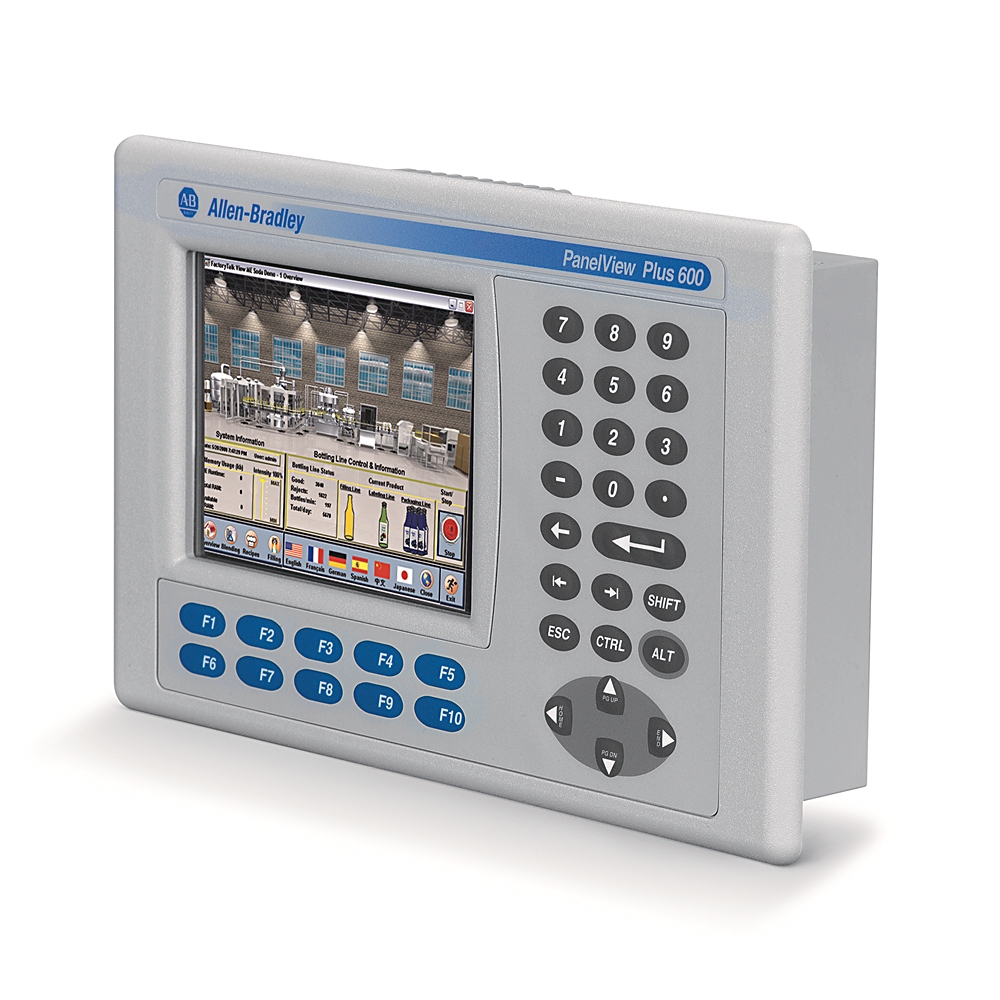

Allen-Bradley Allen-Bradley PanelView Plus 6 Graphic Terminal 2711P-K6C5D9
Allen-Bradley Allen-Bradley PanelView Plus 6 6 Gray Key AC RS232…
Allen-Bradley Allen-Bradley PanelView Plus 6 6 Color Key DC RS…
Allen-Bradley Allen-Bradley PanelView Plus Terminal 2711P-K7C4A8

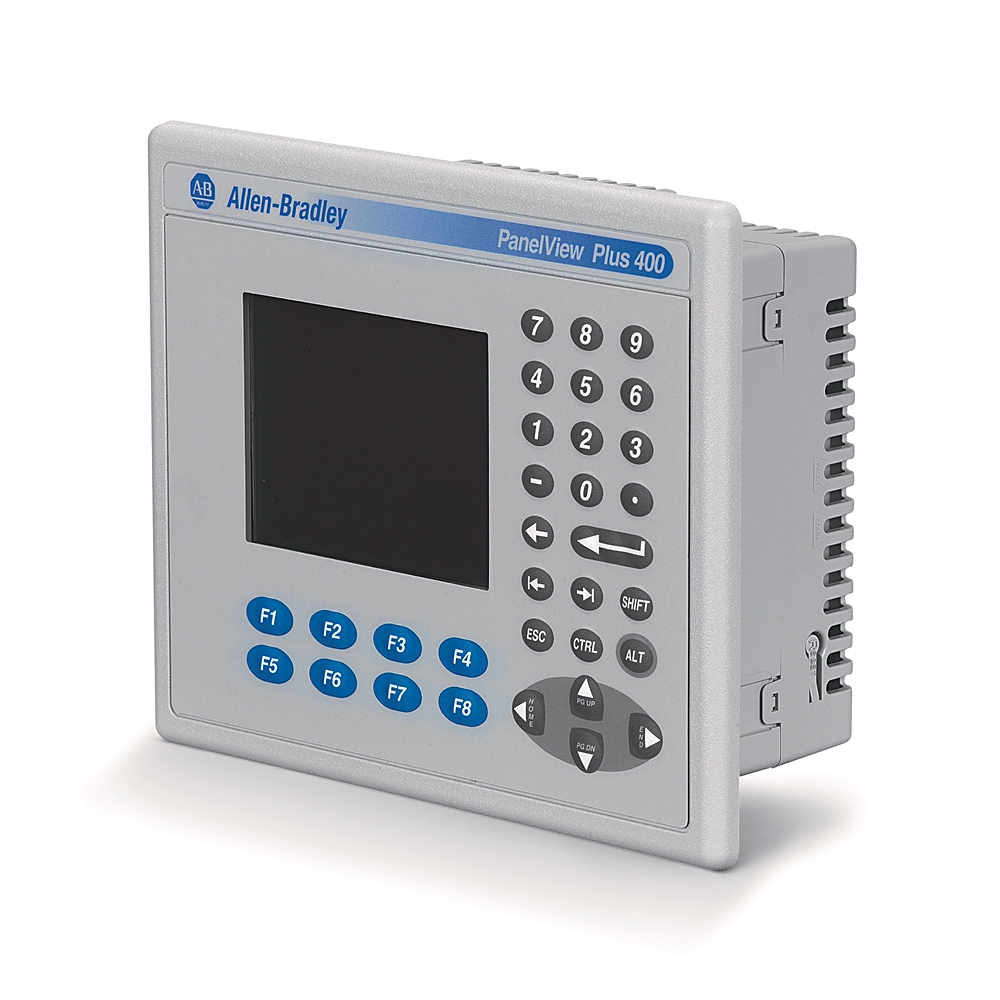

Allen-Bradley Allen-Bradley PanelView Plus 6 4 Color Keypad DC 2711P-K4C20D8
