Allen-Bradley PowerFlex Air Cooled 755 Packaged Drive 21G1AYF500AN0NNNNN-HD-L4-P3-P20
Allen-Bradley 21G1AYF500AN0NNNNN-HD-L4-P3-P20 - industrial components - Enclosure: IP54 800 mm MCC Bus ASA49; Product Series: C; Size: Frame 8.
This listing covers the Allen-Bradley 21G1AYF500AN0NNNNN-HD-L4-P3-P20, a part number in the industrial components category. The manufacturer's published data for this part number specifies Enclosure: IP54 800 mm MCC Bus ASA49 and Product Series: C.
The specification set recorded for this part number covers Size: Frame 8; Type: Air Cooled; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: Yes; Sub Brand: 755 Packaged Drive,PowerFlex; Environmental Compliance: See Details | Submit Inquiry; SVHC Information: View Guidance; Power Rating: 500 A 500 kW ND 400 kW HD; Display: Blank (No HIM); Input type: AC In Prchg Prchg No DC Term; Voltage rating: 690V AC, 3 PH. The complete technical table is shown in the Specifications tab on this page.
| Applicable Pressure Delta(Pa) | 43 |
|---|---|
| Applicable Pressure Diff (Pa) | 1234 |
| Build America, Buy America | No |
| Display | Blank (No HIM) |
| Dynamic Braking | None |
| Efficiency Category | STATIC |
| Efficiency Grade N | 68 |
| Electric input power Pe(kW) | 0.17 |
| Enclosure | IP54 800 mm MCC Bus ASA49 |
| Environmental Compliance | <a href='https://www.rockwellautomation.com/en-us/company/product-environmental-compliance.html'>See Details</a> | <a href='#modal-submit-inquiry'>Submit Inquiry</a> |
| Fan Efficiency (%) | 49.3 |
| Fan Regulatory Scope Eval | IN SCOPE |
| Fan speed (RPM) | 2385 |
| Fan Type | FORWARD CURVED CENTRIFUGAL |
| Filtering & CM Cap Config | EMC Filter |
| Input Protection | Input Circuit Breaker |
| Input type | AC In Prchg Prchg No DC Term |
| is DC Voltage lower than 100V? | No |
| Lifecycle Status | Active |
| MCC Bus Capacity | 1200 A MCC Bus |
| Measurement Category | A |
| Model Name | R3G250-AM50-01 |
| Power Rating | 500 A 500 kW ND 400 kW HD |
| Product Series | C |
| Reactors | 5 % Output Reactor |
| Repair Options Available | Yes |
| Size | Frame 8 |
| Special characteristics | DUAL USE FAN |
| Specific Ratio | 1 |
| Specific Speed σΒΕΡ | 2.2 |
| Sub Brand | 755 Packaged Drive,PowerFlex |
| SVHC Information | <a href='https://literature.rockwellautomation.com/idc/groups/literature/documents/td/pec-td011_-en-e.pdf'>View Guidance</a> |
| System Duty Cycle | Heavy Duty |
| Type | Air Cooled |
| Voltage rating | 690V AC, 3 PH |
| Volume flow rate(m3/h) | 890 |
| Volume flow rate(m3/s) | 0.24 |
| VSD Integration | VSD INTEGRATED IN FAN |
Frequently Asked Questions
How do I get pricing for 21G1AYF500AN0NNNNN-HD-L4-P3-P20?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 21G1AYF500AN0NNNNN-HD-L4-P3-P20?
21G1AYF500AN0NNNNN-HD-L4-P3-P20 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 21G1AYF500AN0NNNNN-HD-L4-P3-P20?
Key specifications include Applicable Pressure Delta(Pa): 43; Applicable Pressure Diff (Pa): 1234; Build America, Buy America: No; Display: Blank (No HIM). The full specification table on this page lists every published attribute for this part.
How quickly can 21G1AYF500AN0NNNNN-HD-L4-P3-P20 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley PowerFlex Air Cooled 755 Packaged Drive 21G1ALD740AN4NNNNN-HD-L1-P5-P14

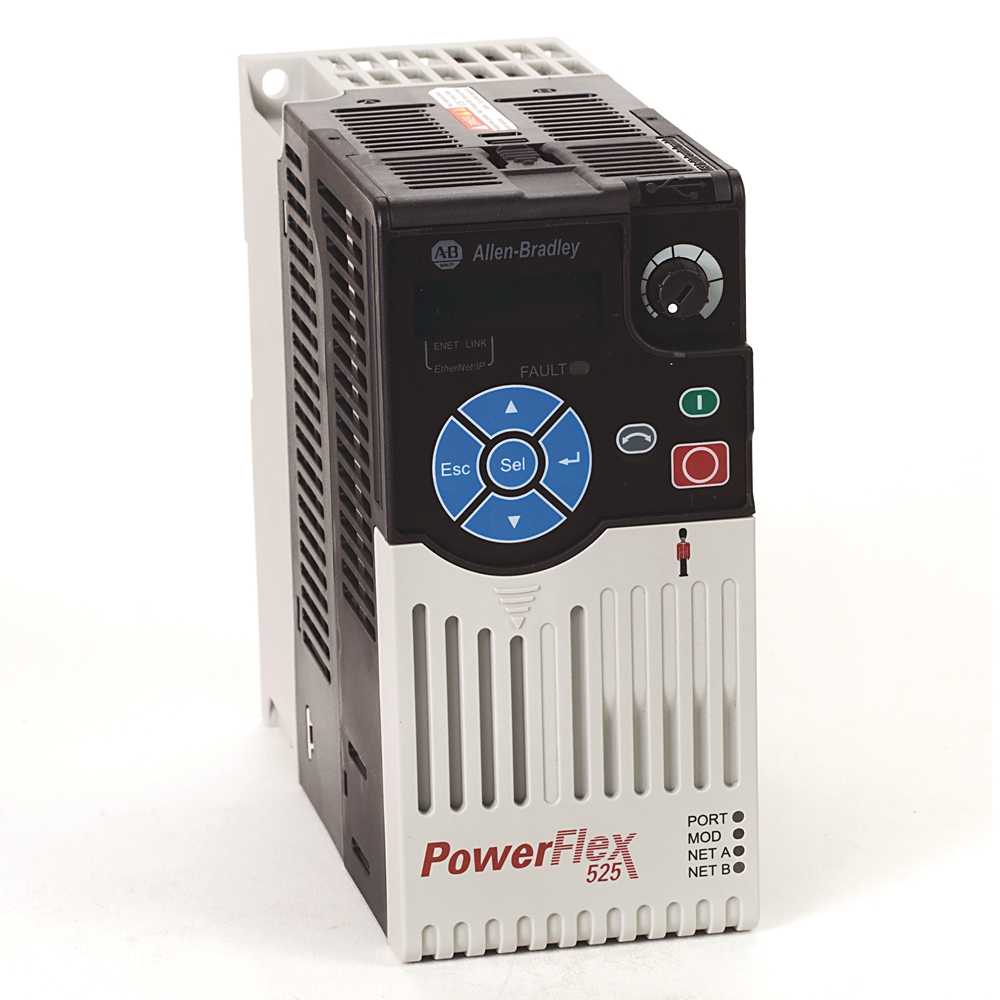

Allen-Bradley Allen-Bradley PowerFlex 525 2.2kW (3Hp) AC Drive 25B-E4P2N104

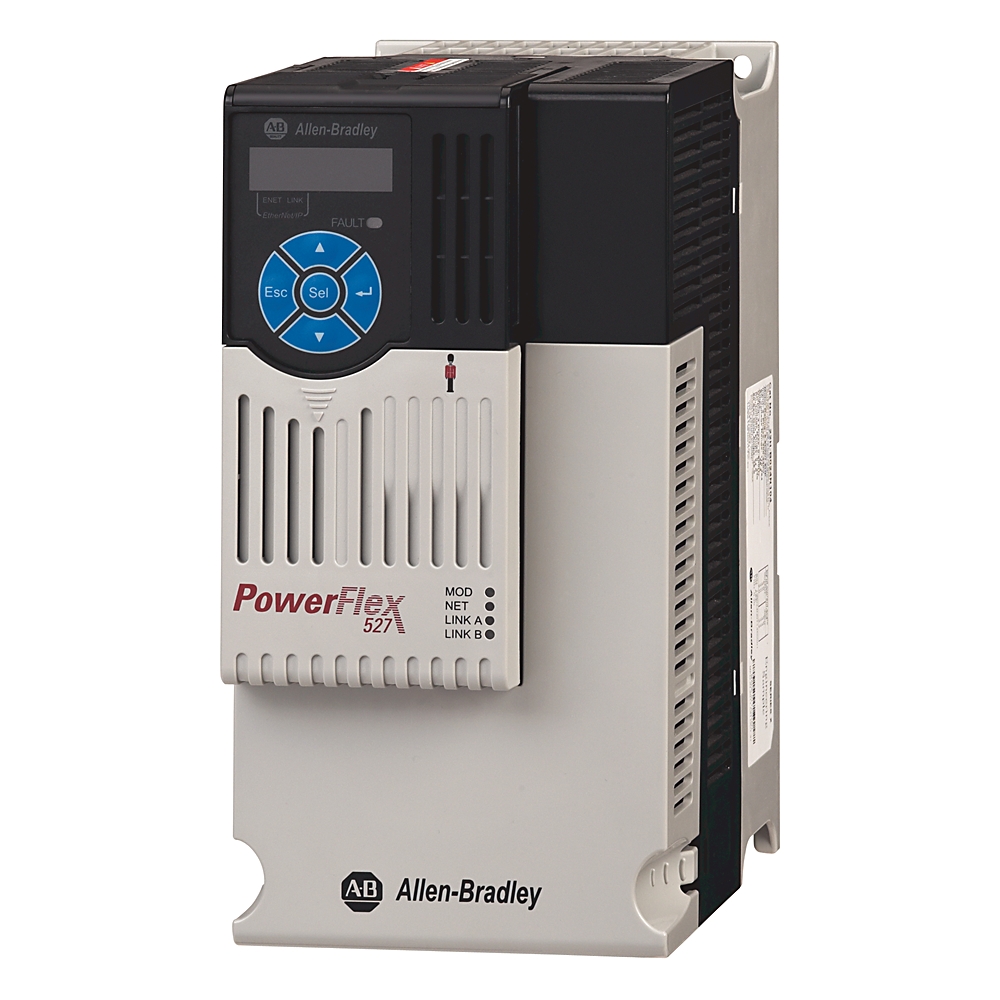

Allen-Bradley Allen-Bradley PowerFlex 527 7.5kW / 10Hp AC Drive 25C-D017N104

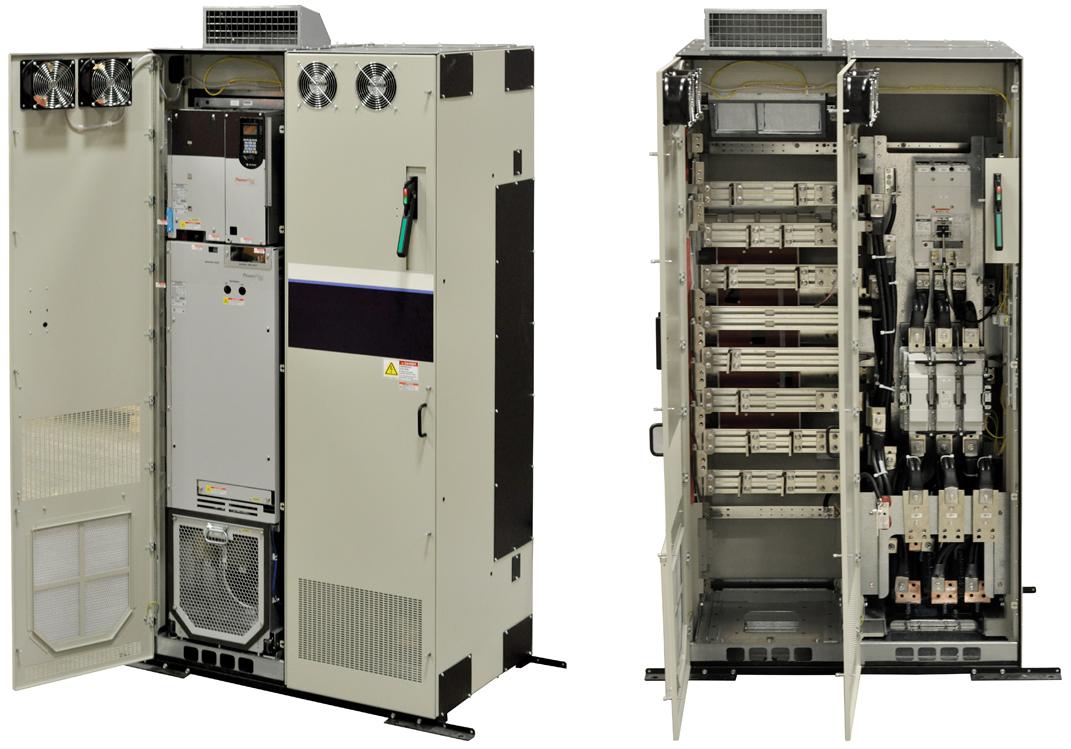

Allen-Bradley Allen-Bradley PowerFlex Air Cooled 755 Packaged Drive 21G1ALD710AN2NNNNN-ND-L1-P3

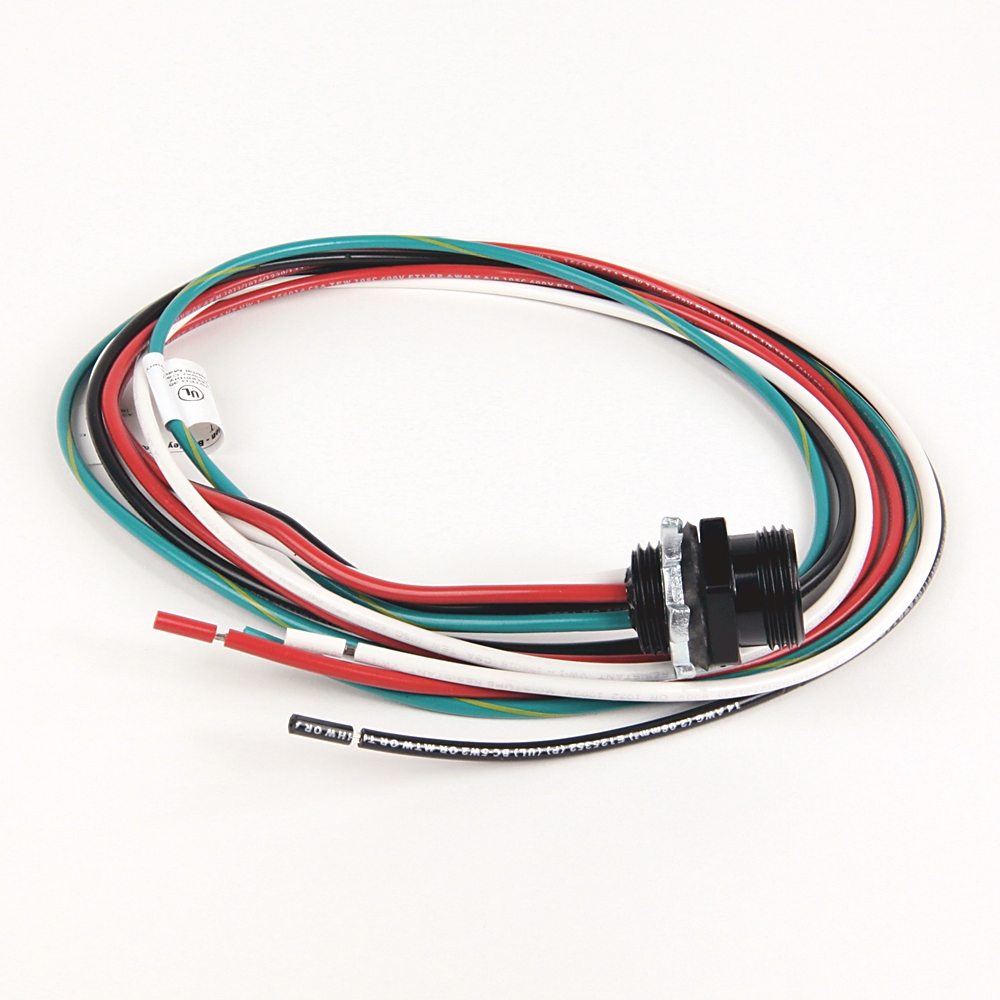

Allen-Bradley Allen-Bradley ArmorStart Three-Phase Power Media 280-M24F-M1
