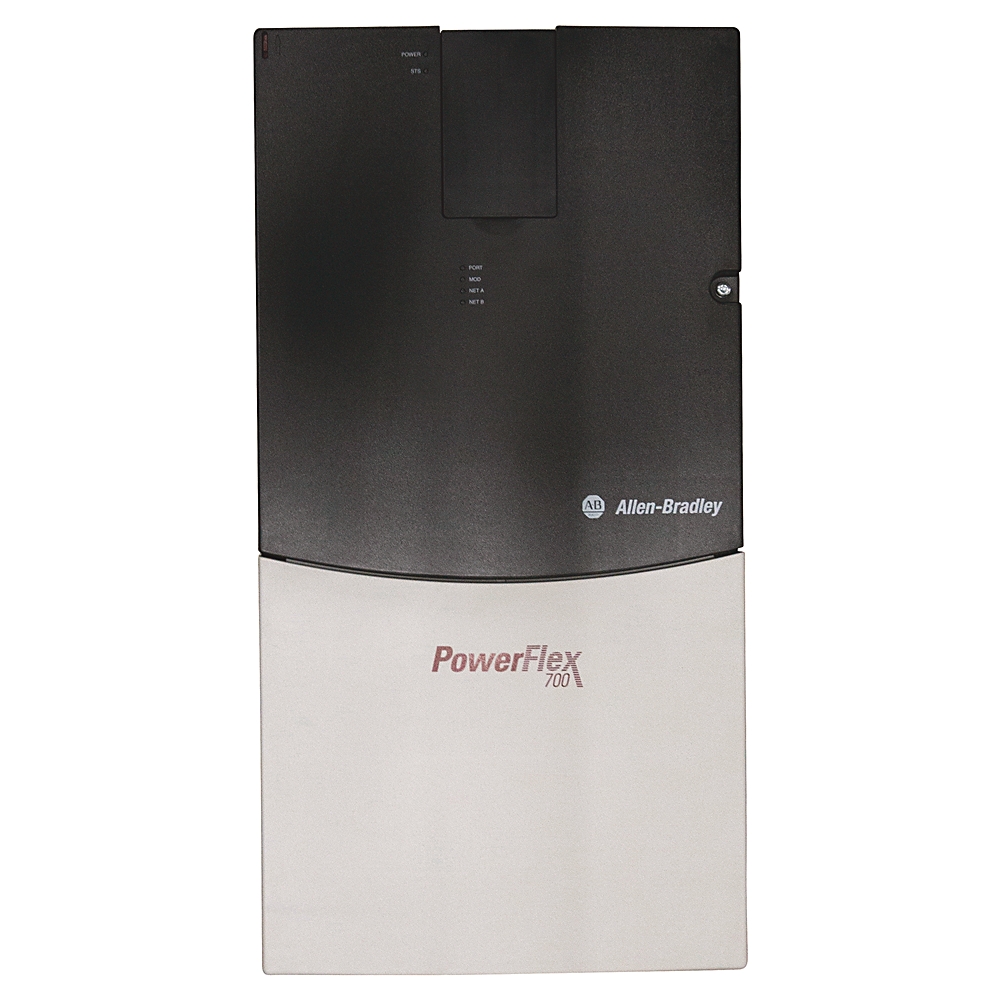

Allen-Bradley PowerFlex 700S AC Drive 20D 20DJ156A0EYNANANE
Brand: Allen-Bradley
SKU: 20DJ156A0EYNANANE
Ships Same Day*
Worldwide Shipping
| Acceleration/deceleration | Independently progmable accel and decel times adjustable from 0 to 6553.5 in 0.1 s increments |
|---|---|
| Additional configuration | Phase II control |
| Altitude | 1000 m (3300 ft.) maximum without derating |
| Atmosphere | Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors, or dust, If the drive is not going to be installed for a period of time, it must be stored in an area where it will not be exposed to a corrosi |
| Brake IGBT | Brake IGBT installed |
| Brake Resistor | No internal brake resistor |
| Build America, Buy America | No |
| Carrier frequency | Drive rating: 4 kHz, settings: 2, 4, 6, 8, 10 kHz (6 kHz is for V/Hz ops only) |
| Control logic noise immunity | Showering arc transients upto 1500V peak |
| Control method | Induction motor and brushless motor: sine coded PWM with progmable carrier frequency, indirect self organized, field-oriented control, current-regulated, ratings apply to all drives, refer to the PowerFlex 700S Phase ll control reference manual, public |
| Control options | Phase II control, expanded cassette |
| Current limit capability | Independent motoring and regenerative power limits progmable to 800% of rated output current |
| DC bus undervoltage trip | Adjustable |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Depth, approx | 275.5 mm |
| Displacement power factor | 0.98 across speed range |
| Documentation | English documentation |
| Drive overcurrent trip | Software current limit: 105% of motor rated to 200% of drive rated current |
| Drive to motor power ratio, max | The drive to motor rating cannot exceed a 2:1 ratio |
| Efficiency | 97.5% at rated A, nominal line volts |
| Electronic motor overload protection | Class 10 motor overload protection according to NEC article 430 and motor over-temperature protection according to NEC article 430.126 (A)(2). UL 508C file E59272 |
| Enclosure Type | IP20/NEMA/UL Type 1 |
| Encoder voltage supply | 5V DC or 12V DC 320 mA/channel, 5V DC minimum high state voltage state of 0.4V DC @ 12V DC minimum high state voltage of 7.0V DC, maximum low state voltage of 0.4V DC |
| Feedback option | Future use |
| Fuse current rating | 300A @ 650V DC, normal duty |
| Ground fault trip | Phase-to-ground on drive output |
| Heat sink thermistor | Monitored by microprocessor overtemperature trip |
| Height, approx | 850.0 mm |
| Human interface model | No HIM (no blank plastic inserted) |
| Input current rating | 171A @ 650V DC, normal duty |
| Input frequency, max | 400 Hz |
| Input phases | Six-pulse, 3-phase input provides full rating for all drives, single-phase ops provides 50% of rated current |
| Input voltage rating | 650V DC no precharge |
| Integrated breaking resistance | false |
| Intermittent overload | 110% overload capability for up to 1 min, 150% overload capability for up to 3 s |
| Internal Communication Module | No communication module |
| Internal EMC filtering | With EMC filter & common mode choke |
| Lifecycle Status | Discontinued |
| Line transients | Up to 6000 volts peak per IEEE C62.41-1991 |
| Logic control ride-thru | 0.25 s, drive not running |
| Mains voltage | 650 V |
| Max. output frequency | 400 Hz |
| Max. output voltage | 932 V |
| Number of analogue inputs | 3 |
| Number of analogue outputs | 2 |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Operating Temperature | 50 °C @ 650V DC, normal duty |
| Output current rating | 156 A, 125 Hp normal duty, 100 Hp heavy duty, frame 6 |
| Output current, 1 min | 188A @ 650V DC, heavy duty |
| Output current, 3 sec | 250A @ 650V DC, heavy duty |
| Output current, continuous | 156A @ 650V DC, normal duty |
| Output frequency range | 0 Hz |
| Output voltage range | 0 to rated motor voltage |
| Power ride-thru | 15 ms at full load |
| PWM frequency | 4 kHz @ 650V DC, normal duty |
| Rated power rating | 125Hp @ 650V DC, normal duty |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Repair Options Available | Yes |
| S-curve time | Adjustable 0.5...4.0 s |
| Selectable motor control | Field oriented control with and without a ftdback device and permanent magnet motor control |
| Shock | 10 G peak for 11 ms duration (±1.0 ms) |
| Short circuit current, max | Using recommended fuse or circuit breaker type: maximum short circuit current rating to match specified fuse/circuit breaker capability ≤200000 A |
| Short circuit trip | Phase-to-phase on drive output |
| Sound level | Frame 6: 72 dB @ 300 CFM fan speed |
| Speed control | Speed regulation - without ftdback: 0.1% of base speed across 120:1 speed range, 120:1 operating range, 50 rad/sec bandwidth |
| Stop modes | Multiple progmable stop modes including - RA, Coast, and Current Limit |
| Storage Temperature | -40 °C |
| Surrounding air temperature without derating | NEMA/UL Type 1: 0° to 40° C (32° to 104° F) |
| Torque regulation | Torque regulation - without ftdback: ±5%, 600 rad/sec bandwidth |
| Vibration | 0.152 mm (0.006 in.) displacement, 1 G peak, 5.5 Hz |
| Watt loss | 1605 W @ 650V DC @ 125Hp normal duty |
| Weight, approx | Drive: 71.44 kg |
| Width, approx | 435.8 mm |
