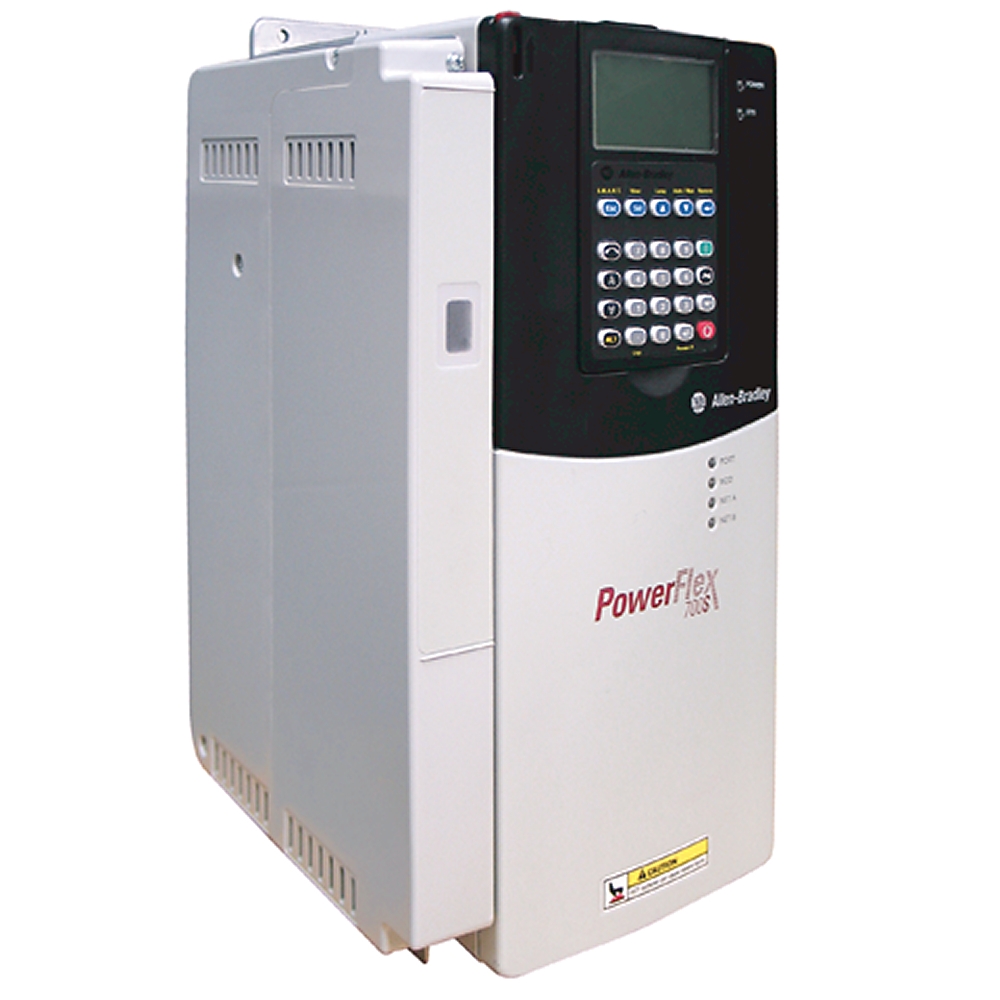

Allen-Bradley PowerFlex 700S AC Drive 20D 20DD011A3EYNAEBNE
Brand: Allen-Bradley
SKU: 20DD011A3EYNAEBNE
Ships Same Day*
Worldwide Shipping
| AC input overvoltage trip | 600V AC @ 480V (six pulse, 3-phase) |
|---|---|
| Acceleration/deceleration | Independently progmable accel and decel times adjustable from 0 to 6553.5 in 0.1 s increments |
| Additional configuration | Phase II control |
| Altitude | 1000 m (3300 ft.) maximum without derating |
| Atmosphere | Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors, or dust, If the drive is not going to be installed for a period of time, it must be stored in an area where it will not be exposed to a corrosi |
| Brake IGBT | Brake IGBT installed |
| Brake Resistor | No internal brake resistor |
| Build America, Buy America | No |
| Carrier frequency | Drive rating: 4 kHz, settings: 2, 4, 6, 8, 10 kHz (6 kHz is for V/Hz ops only) |
| Circuit breaker current rating, max | 40A @ 480V AC, 3-phase |
| Control logic noise immunity | Showering arc transients upto 1500V peak |
| Control method | Induction motor and brushless motor: sine coded PWM with progmable carrier frequency, indirect self organized, field-oriented control, current-regulated, ratings apply to all drives, refer to the PowerFlex 700S Phase ll control reference manual, public |
| Control options | Phase II control with synchlink, expanded cassette |
| Current limit capability | Independent motoring and regenerative power limits progmable to 800% of rated output current |
| DC bus overvoltage trip | 810V DC @ 480V |
| DC bus undervoltage trip | Adjustable |
| DC nominal bus voltage | 648V DC @ 480V |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Depth, approx | 200 mm |
| Displacement power factor | 0.98 across speed range |
| Documentation | English documentation |
| Drive full power range | 460...528V @ 380...400V drive rating, 460V nominal motor voltage |
| Drive operating range | 325...528V @ 380...400V drive rating, 460V nominal motor voltage |
| Drive overcurrent trip | Software current limit: 105% of motor rated to 200% of drive rated current |
| Drive to motor power ratio, max | The drive to motor rating cannot exceed a 2:1 ratio |
| Dual element time delay fuse current rating | 15...20A @ 480V AC, 3-phase |
| Efficiency | 97.5% at rated A, nominal line volts |
| Electronic motor overload protection | Class 10 motor overload protection according to NEC article 430 and motor over-temperature protection according to NEC article 430.126 (A)(2). UL 508C file E59272 |
| Enclosure Type | IP20/NEMA/UL Type 1 |
| Encoder voltage supply | 5V DC or 12V DC 320 mA/channel, 5V DC minimum high state voltage state of 0.4V DC @ 12V DC minimum high state voltage of 7.0V DC, maximum low state voltage of 0.4V DC |
| Feedback option | Future use |
| Fuse current rating | 20A @ 650V DC |
| Ground fault trip | Phase-to-ground on drive output |
| Heat sink thermistor | Monitored by microprocessor overtemperature trip |
| Height, approx | 336 mm |
| Human interface model | LCD Display, full numeric keypad |
| Input current rating | 9.5A @ 480V AC, 3-phase |
| Input frequency, max | 400 Hz |
| Input phases | Six-pulse, 3-phase input provides full rating for all drives, single-phase ops provides 50% of rated current |
| Input power rating | 7.9 kVA @ 480V AC, 3-phase |
| Input voltage rating | 480V AC, 3-phase, 60 Hz |
| Integrated breaking resistance | false |
| Intermittent overload | 110% overload capability for up to 1 min, 150% overload capability for up to 3 s |
| Internal Communication Module | EtherNet/IP |
| Internal dynamic brake resistors | 115 ohm |
| Internal EMC filtering | With EMC filter & common mode choke |
| Lifecycle Status | Discontinued |
| Line transients | Up to 6000 volts peak per IEEE C62.41-1991 |
| Line voltage, nom | 480V @ 380...400V drive rating, 460V nominal motor voltage |
| Logic control ride-thru | 0.25 s, drive not running |
| Mains frequency | 60 Hz |
| Mains voltage | 480 V |
| Max. output frequency | 400 Hz |
| Max. output voltage | 932 V |
| Motor circuit protector current rating, max | 15A @ 480V AC, 3-phase |
| Motor voltage, nom | 460V @ 380...400V drive rating, 480V nominal line voltage |
| Non-time delay fuse current rating | 15...40A @ 480V AC, 3-phase |
| Number of analogue inputs | 3 |
| Number of analogue outputs | 2 |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Operating Temperature | 50 °C @ 650V DC |
| Output current rating | 11 A, 7.5 Hp normal duty, 5 Hp heavy duty, frame 1 |
| Output current, 1 min | 12.1A @ 650V DC |
| Output current, 3 sec | 16.5A @ 650V DC |
| Output current, continuous | 11A @ 650V DC |
| Output frequency range | 0 Hz |
| Output voltage range | 0 to rated motor voltage |
| Power ride-thru | 15 ms at full load |
| PWM frequency | 4 kHz @ 650V DC |
| Rated power rating | 7.5Hp @ 650V DC, normal duty |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Repair Options Available | Yes |
| S-curve time | Adjustable 0.5...4.0 s |
| Selectable motor control | Field oriented control with and without a ftdback device and permanent magnet motor control |
| Shock | 10 G peak for 11 ms duration (±1.0 ms) |
| Short circuit current, max | Using recommended fuse or circuit breaker type: maximum short circuit current rating to match specified fuse/circuit breaker capability ≤200000 A |
| Short circuit trip | Phase-to-phase on drive output |
| Sound level | Frame 1: 59 dB @ 30 CFM fan speed |
| Speed control | Speed regulation - without ftdback: 0.1% of base speed across 120:1 speed range, 120:1 operating range, 50 rad/sec bandwidth |
| Stop modes | Multiple progmable stop modes including - RA, Coast, and Current Limit |
| Storage Temperature | -40 °C |
| Surrounding air temperature without derating | NEMA/UL Type 1: 0° to 40° C (32° to 104° F) |
| Torque regulation | Torque regulation - without ftdback: ±5%, 600 rad/sec bandwidth |
| Vibration | 0.152 mm (0.006 in.) displacement, 1 G peak, 5.5 Hz |
| Watt loss | 243 W @ 480V AC @ 7.5Hp normal duty, 5 Hp heavy duty |
| Weight, approx | Drive: 7.03 kg |
| Width, approx | 166.9 mm |
Frequently Asked Questions
How do I get pricing for 20DD011A3EYNAEBNE?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20DD011A3EYNAEBNE?
20DD011A3EYNAEBNE is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20DD011A3EYNAEBNE?
Key specifications include AC input overvoltage trip: 600V AC @ 480V (six pulse, 3-phase); Acceleration/deceleration: Independently progmable accel and decel times adjustable from 0 to 6553.5 in 0.1 s increments; Additional configuration: Phase II control; Altitude: 1000 m (3300 ft.) maximum without derating. The full specification table on this page lists every published attribute for this part.
How quickly can 20DD011A3EYNAEBNE ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
