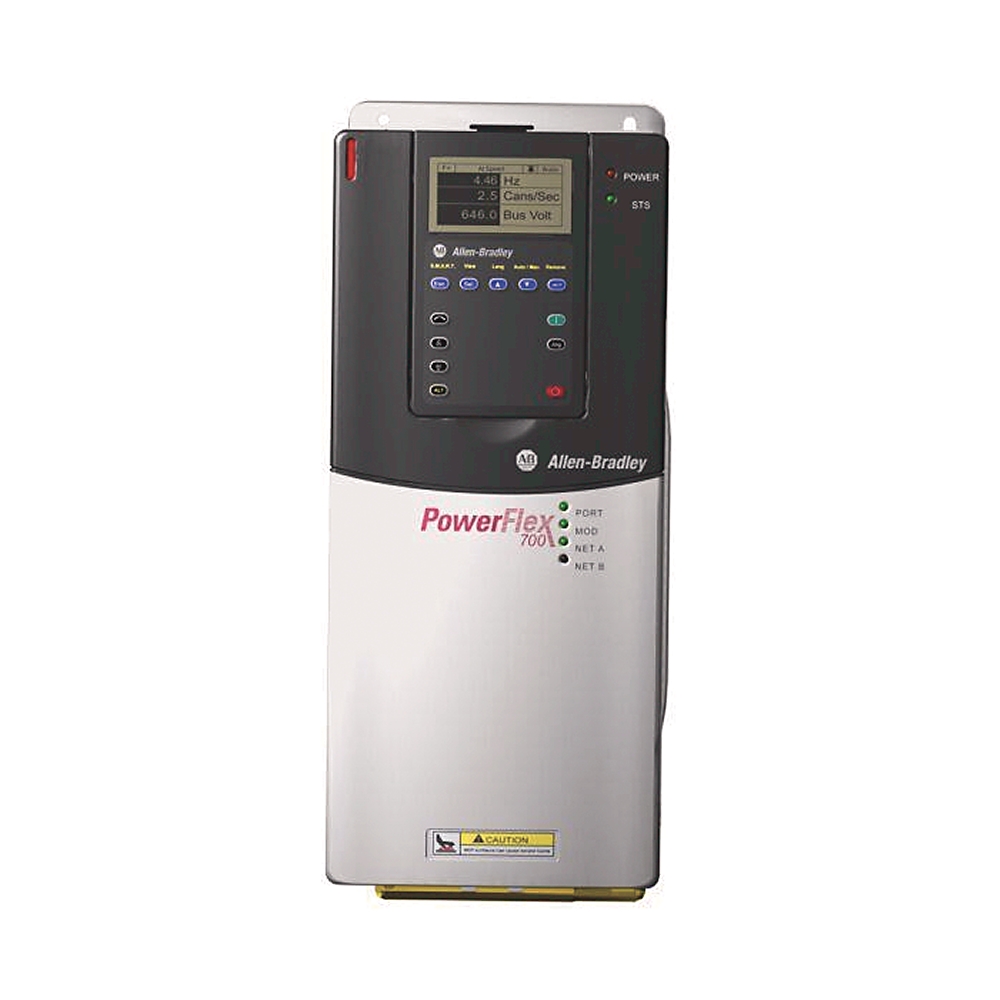

Allen-Bradley PowerFlex 700 AC Drive 20B 20BC2P1A0AYNANA0
Brand: Allen-Bradley
SKU: 20BC2P1A0AYNANA0
Ships Same Day*
Worldwide Shipping
| AC input overvoltage trip | 570V AC @ 380/400V |
|---|---|
| AC input undervoltage trip | 233V AC @ 380/400V |
| Acceleration/deceleration | Two independently progmable accel and decel times. Each time can be progmed from 0...3600 s in 0.1 s increments |
| Actual short circuit rating | Determined by AIC rating of installed fuse/circuit breaker |
| Altitude | 1000 m (3300 ft.) maximum without derating |
| Analog input latency | 4.8...12.4 ms @ speed signal for SVC motor control |
| Analog input latency, typical | 6.4 ms @ speed signal for SVC motor control |
| Atmosphere | Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors or dust, If the drive is not going to be installed immediately, store the drive where it is not exposed to a corrosive atmosphere |
| Brake IGBT | Brake IGBT installed |
| Brake Resistor | No internal brake resistor |
| Build America, Buy America | No |
| Bus overvoltage trip | 810V DC @ 380/400V |
| Bus undervoltage shutoff/fault | 305V DC @ 380/400V |
| Bus voltage, nom | 540V DC @ 380/400V |
| Carrier frequency | 2, 4, 8, and 10 kHz. Drive rating based on 4 kHz |
| Circuit breaker current rating, max | 15A @ 400V AC, 3-phase |
| Control logic noise immunity | Showering arc transients upto 1500V peak |
| Control method | Sine coded PWM with progmable carrier frequency, ratings apply to all drives, the drive can be supplied as 6 pulse or 18 pulse in an engineered solution |
| Control options | Standard control with 24V AC/DC I/O |
| Current limit capability | Proactive current limit progmable from 20...160% of rated output current, Independently progmable proportional and integral gain |
| Custom Drive/Firmware | No custom firmware |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Depth, approx | IP20, NEMA/UL type 1: 200 mm |
| Digital input latency | 9.2...16.0 ms @ start signal for SVC motor control |
| Digital input latency, typical | 9.2 ms @ stop signal for SVC motor control |
| Displacement power factor (all drives) | 0.98 across speed range |
| Documentation | Manual |
| Drive full power range | 400...528V @ 380...480V drive rating |
| Drive operating range | 342...528V @ 380...480V drive rating |
| Drive overcurrent trip | Instantaneous current limit: 220...300% of rated current (dependent on drive rating) |
| Drive to motor power ratio, max | Recommended not greater than 2:1 ratio |
| Drive to motor power ratio, min | Recommended not less than 1:2 ratio |
| Dual element time delay fuse current rating | 3...6A @ 400V AC, 3-phase |
| Efficiency | 97.5% at rated A, nominal line volts |
| Enclosure Type | IP20/NEMA/UL Type 1 |
| Encoder duty cycle | 50% ±10% |
| Encoder quadrature | 90 degrees, ±27 degrees at 25 °C (77 °F) |
| Encoder requirements | Encoders must be line driver type, quadrature (dual channel) or pulse (single channel), 8...15V DC output (4...6V DC when jumpers are in 5V position), single-ended or differential and capable of supplying a min. of 10 mA per channel, maximum input frequen |
| Encoder supply | 12V @ 250mA. 12V @ 10mA minimum inputs isolated with differential transmitter, 250 kHz maximum |
| Encoder Type | Incremental, dual channel |
| External watts loss | 19 W @ 400V @ 0.75Hp normal duty (IP20, NEMA/UL Type 1) |
| Feedback option | No ftdback |
| Feedback Options | No ftdback |
| Frequency accuracy | Digital input: within ±0.01% of set output frequency |
| Frequency control-speed regulation | With slip compensation (Volts per Hz mode): 0.5% of base speed across 40:1 speed range, 40:1 operating range, 10 rad/sec bandwidth |
| Fuse current rating | 6A @ 540V DC |
| Ground fault trip | Phase-to-ground on drive output |
| Heat sink thermistor | Monitored by microprocessor overtemp trip |
| Height, approx | IP20, NEMA/UL type 1: 336 mm |
| Human interface model | No HIM (blank plate inserted) |
| Input current rating | 2.1A @ 540V DC |
| Input frequency tolerance | 47 Hz |
| Input phases | 3-phase input provides full rating for all drives. 1-phase ops possible on certain drives and provides 50 % of rated current. Frames 0...6: drive can be supplied as 6 pulse or 18 pulse in an engineered package. |
| Input power rating | 1.3 kVA @ 400V AC, 3-phase |
| Input voltage rating | 400V AC, 3-phase, 50 Hz |
| Integrated breaking resistance | false |
| Intermittent overload | 110% overload capability for up to 1 min, 150% overload capability for up to 3 s |
| Internal Communication Module | No communication module |
| Internal EMC filtering | With EMC filter with common mode choke |
| Internal watts loss | 44 W @ 400V @ 0.75Hp normal duty (IP20, NEMA/UL Type 1) |
| Lifecycle Status | Discontinued |
| Line transients | Up to 6000 volts peak per IEEE C62.41-1991 |
| Line voltage, nom | 400V @ 380...480V drive rating, 400V nominal motor voltage |
| Logic control ride-thru | 0.5 s minimum, 2 s typical |
| Mains frequency | 50 Hz |
| Mains voltage | 400 V |
| Max. output frequency | 400 Hz |
| Motor circuit protector current rating, max | 3A @ 400V AC, 3-phase |
| Motor overload protection | Frames 0...6 standard control: powerflex 700 drives with standard control, which is identified by an N, A, or B in position 15 of the catalog number, only provide Class 10 motor overload protection according to NEC article 430, they do not provide speed |
| Motor voltage, nom | 400V @ 380...480V drive rating, 400V nominal line voltage |
| Non-time delay fuse current rating | 3...8A @ 400V AC, 3-phase |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Operating Temperature | 50 °C @ 540V DC |
| Output current rating | 2.1 A, 0.75 kW normal duty, 0.55 kW heavy duty, frame 0 |
| Output current rating, 1 min | 2.4A @ 540V DC |
| Output current rating, 3 sec | 3.2A @ 540V DC |
| Output current rating, continuous | 2.1A @ 540V DC |
| Output frequency range | Standard control: 0...400 Hz, vector control: 0...420 Hz |
| Output voltage range | 0 to rated motor voltage |
| Output voltage rating | 0...400V AC @ 380...400V AC, 1-phase |
| Pollution degree 1 according to EN 61800-5-1 | No pollution occurs, only dry non-conductive pollution occurs, and has no influence |
| Pollution degree 2 according to EN 61800-5-1 | Normally only non-conductive pollution occurs, Occasionally a temporary conductivity, caused by condensation is expected when the drive is out of ops |
| Pollution degree 3 according to EN 61800-5-1 | Conductive pollution occurs, dry non-conductive pollution occurs and becomes conductive due to condensation |
| Pollution degree 4 according to EN 61800-5-1 | The pollution generates persistent conductivity caused, for exAle, by conductive dust, rain or snow |
| Power ride-thru | 15 ms at full load |
| PWM frequency | 4 kHz @ 540V DC |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Repair Options Available | Yes |
| Selectable motor control | Sensorless vector with full tuning. Standards V/Hz with full custom capability and vector control |
| Shock | 15 G peak for 11 ms duration (±1.0 ms) |
| Short circuit rating, max | 200000 A symmetrical |
| Short circuit trip | Phase-to-phase on drive output |
| Sound level | Frame 0: 58 dB @ 30 CFM fan velocity |
| Speed control-speed regulation | Without ftdback (Vector Control Mode): 0.1 % of base speed across 120:1 speed range, 120:1 operating range, 50 rad/sec bandwidth |
| Stop modes | Multiple progmable stop modes including - RA, Coast, DC-brake, Fast brake, RA-to-hold and S-curve |
| Storage Temperature | -40 °C |
| Supporting protocol for CAN | true |
| Supporting protocol for DeviceNet | true |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for LON | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | true |
| Surrounding air temperature | IP20, NEMA/UL type 1 (with top label): 0...50 °C (0...122 °F) @ frames 5…6, most ratings |
| Surrounding environment pollution degree | All enclosures are acceptable for pollution degree 1 and 2, an enclosure that meets or exceeds IP54, NEMA/UL Type 12, is required for pollution degree 3 and 4 |
| Torque regulation | Without ftdback: ±5 %, 600 rad/sec bandwidth |
| Total watts loss | 63 W @ 400V @ 0.75Hp normal duty (IP20, NEMA/UL Type 1) |
| Vibration | 0.152 mm (0.006 in) displacement, 1 G peak |
| Weight, approx | IP20, NEMA/UL type 1: 8.16 kg (drive and packaging weight) |
| Width, approx | IP20, NEMA/UL type 1: 110 mm |
| With control element | true |
