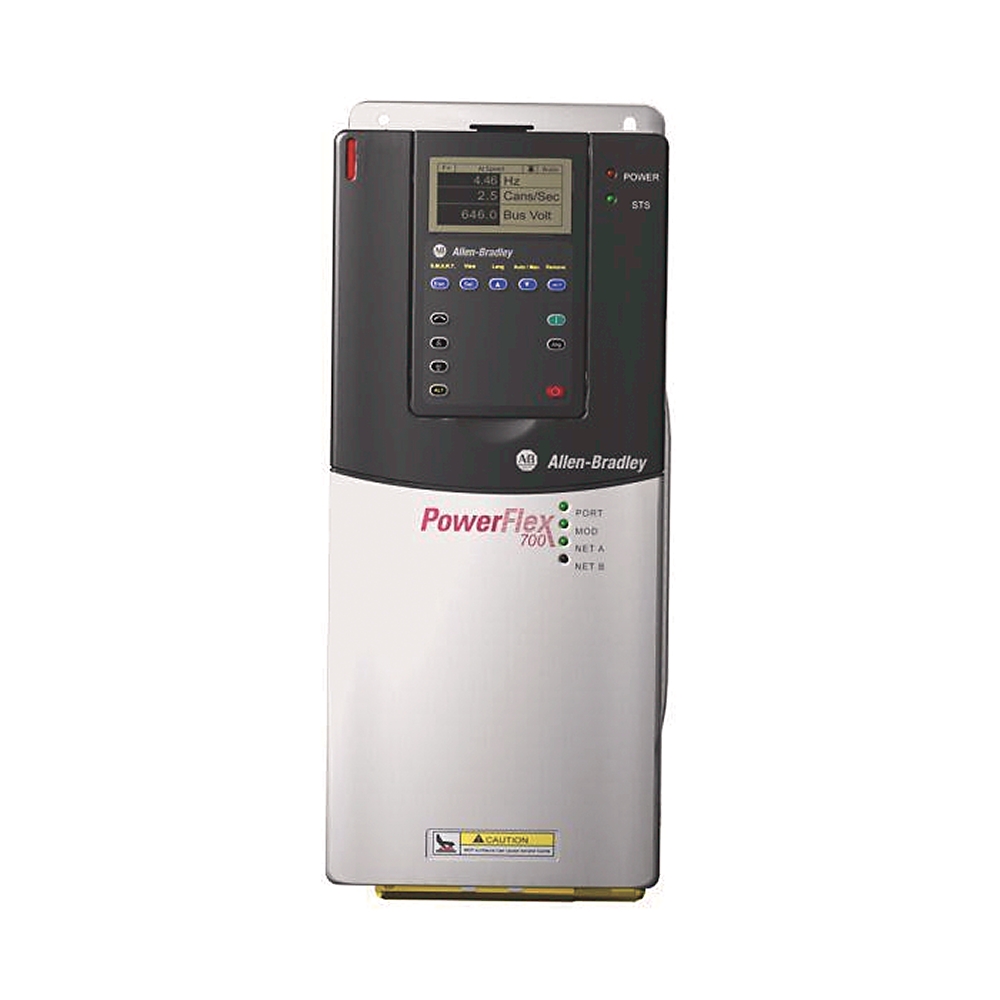

Allen-Bradley PowerFlex 700 AC Drive 43 A at 22 kW 20B 20BC043A3AYNANN0
| Altitude | 1000 m (3300 ft.) maximum without derating |
|---|---|
| Brake IGBT | Brake IGBT Installed |
| Brake Resistor | No Internal |
| Build America, Buy America | No |
| Custom Drive/Firmware | No Custom Firmware |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Efficiency | 97.5% at rated A, nominal line volts |
| Feedback Options | No ftdback |
| Input frequency tolerance | 47 Hz |
| Integrated breaking resistance | false |
| Internal Communication Module | No Communication Module |
| Lifecycle Status | Discontinued |
| Line voltage, nom | 400V @ 380...480V drive rating, 400V nominal motor voltage |
| Mains frequency | 50 Hz |
| Mains voltage | 400 V |
| Max. output frequency | 400 Hz |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Operating Temperature | 50 °C @ 540V DC |
| Relative Humidity | 5...95% noncondensing |
| Relative symmetric net voltage tolerance | 10 % |
| Repair Options Available | Yes |
| Shock | 15 G peak for 11 ms duration (±1.0 ms) |
| Storage Temperature | -40 °C |
| Sub Brand | PowerFlex 700 AC Drive |
| Supporting protocol for CAN | true |
| Supporting protocol for DeviceNet | true |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for LON | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | true |
| Vibration | 0.152 mm (0.006 in) displacement, 1 G peak |
| With control element | true |
Frequently Asked Questions
How do I get pricing for 20BC043A3AYNANN0?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20BC043A3AYNANN0?
20BC043A3AYNANN0 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20BC043A3AYNANN0?
Key specifications include Altitude: 1000 m (3300 ft.) maximum without derating; Brake IGBT: Brake IGBT Installed; Brake Resistor: No Internal; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 20BC043A3AYNANN0 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
