Allen-Bradley Kinetix Cable Single DSL 2090 Series 2090-CSWM1DE-14AA33
| Accessory component | Cable |
|---|---|
| AWG-size | 14 AWG |
| Build America, Buy America | No |
| Cable description | Power only: 1000V hybrid cable with four power and two ftdback (digital communication) conductors |
| Cable length | 33 m |
| Cable style | Standard, non-flexible |
| Cable type | Single motor power only |
| Color cable code | RAL2003 |
| Colour outer sheath | Orange |
| Conductor material | Copper |
| Conductor surface | Tinned |
| Core color | White/blue |
| Core colour | Green/Yellow |
| Core identification | Colour |
| Drive-end Connector Type | Drive-end, flying-leads with factory pre-installed connector kit (optimized for Kinetix 5700) |
| Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol |
| Lifecycle Status | Active |
| Max. conductor temperature | 105 °C |
| Motor-end Connector Type | Single speedTec DIN connector |
| Nominal cross section conductor | 2.08 |
| Nominal cross section conductor (AWG) | 4.1 |
| Nominal voltage U | 1000 V |
| Number of cores | 8 |
| Outer diameter approx. | 17 mm |
| Repair Options Available | No |
| Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
| Twisted cores | false |
| Weight, approx | Standard (non-flex), power wire: 0.185 kg/m |
| With protective conductor | true |
Frequently Asked Questions
How do I get pricing for 2090-CSWM1DE-14AA33?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 2090-CSWM1DE-14AA33?
2090-CSWM1DE-14AA33 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 2090-CSWM1DE-14AA33?
Key specifications include Accessory component: Cable; AWG-size: 14 AWG; Build America, Buy America: No; Cable description: Power only: 1000V hybrid cable with four power and two ftdback (digital communication) conductors. The full specification table on this page lists every published attribute for this part.
How quickly can 2090-CSWM1DE-14AA33 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Kinetix Cable Single DSL 2090 Series 2090-CSWM1DE-14AA36
Allen-Bradley Allen-Bradley Kinetix Cable Single DSL 2090 Series 2090-CSWM1DE-14AA32

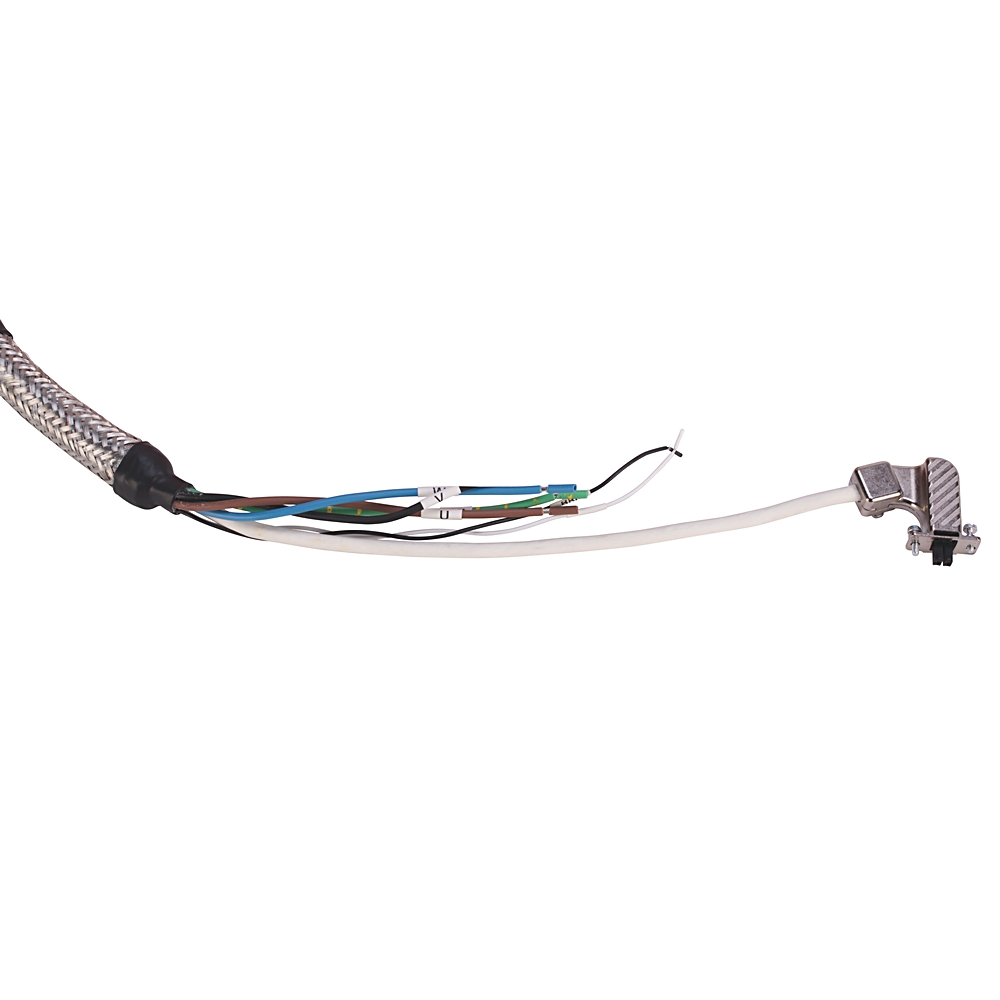

Allen-Bradley Allen-Bradley Kinetix Cable Single DSL 2090 Series 2090-CSWM1DE-14AA60
Allen-Bradley Allen-Bradley Kinetix Cable Single DSL 2090 Series 2090-CSWM1DE-14AA07

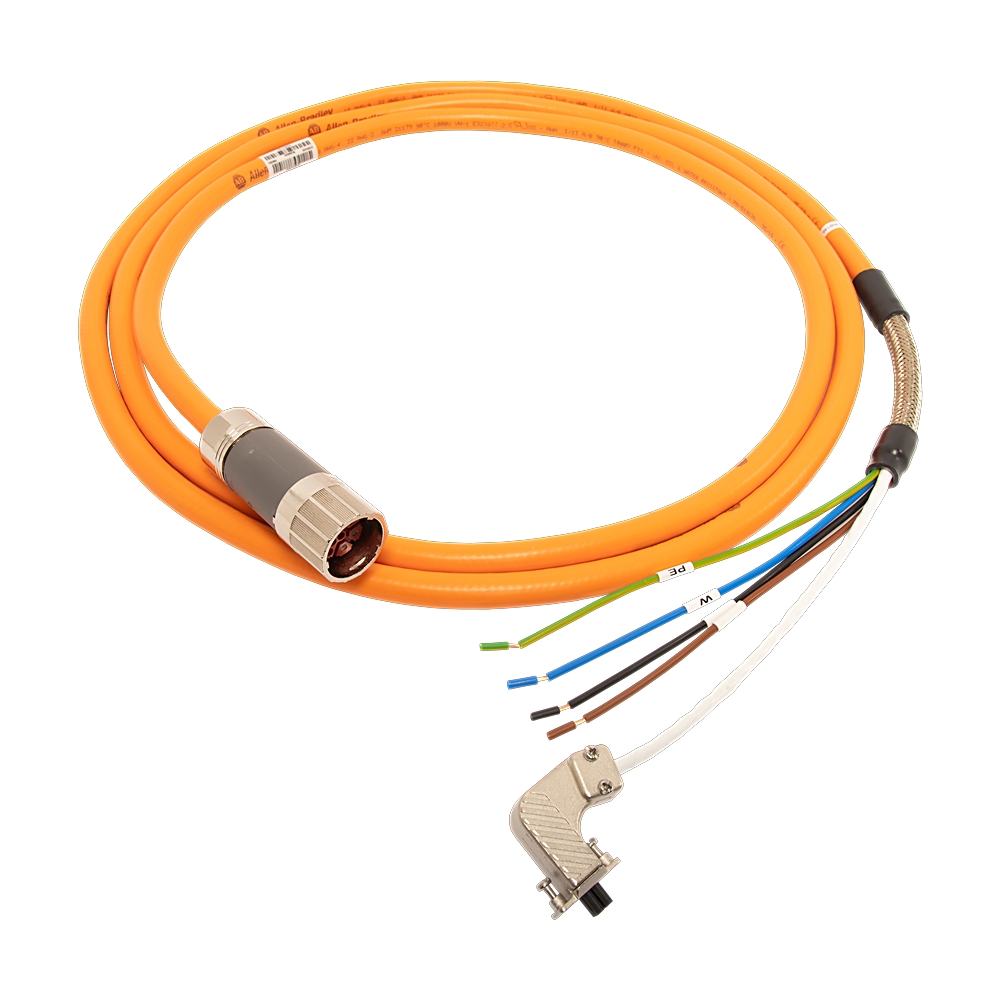

Allen-Bradley Allen-Bradley Kinetix Cable Single DSL 2090 Series 2090-CSWM1DE-14AA62
