Allen-Bradley Kinetix Cable Single DSL 2090 Series 2090-CSBM1DE-10AF19
Allen-Bradley 2090-CSBM1DE-10AF19 - industrial components - Cable length: 19 m; Lifecycle Status: Active; Build America, Buy America: No.
Allen-Bradley 2090-CSBM1DE-10AF19 is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Cable length: 19 m and Lifecycle Status: Active.
Key manufacturer data on file for this item includes Build America, Buy America: No; Repair Options Available: No; AWG-size: 10 AWG; Cable type: Single motor power with brake wires; Colour outer sheath: Orange; Drive-end Connector Type: Drive-end, flying-leads with factory pre-installed connector kit (optimized for Kinetix 5700); Motor-end Connector Type: Single speedTec DIN connector; Weight, approx: Continuous-flex, power with brake wire: 0.551 kg/m; Accessory component: Cable; Cable description: Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors; Cable style: Continuous-flexible; Color cable code: RAL2003. The complete technical table is shown in the Specifications tab on this page.
| Accessory component | Cable |
|---|---|
| AWG-size | 10 AWG |
| Build America, Buy America | No |
| Cable description | Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors |
| Cable length | 19 m |
| Cable style | Continuous-flexible |
| Cable type | Single motor power with brake wires |
| Color cable code | RAL2003 |
| Colour outer sheath | Orange |
| Conductor material | Copper |
| Conductor surface | Tinned |
| Continuous bend radius | Continuous flex: 10 times the cable diam |
| Core color | White/blue |
| Core colour | White |
| Core identification | Colour |

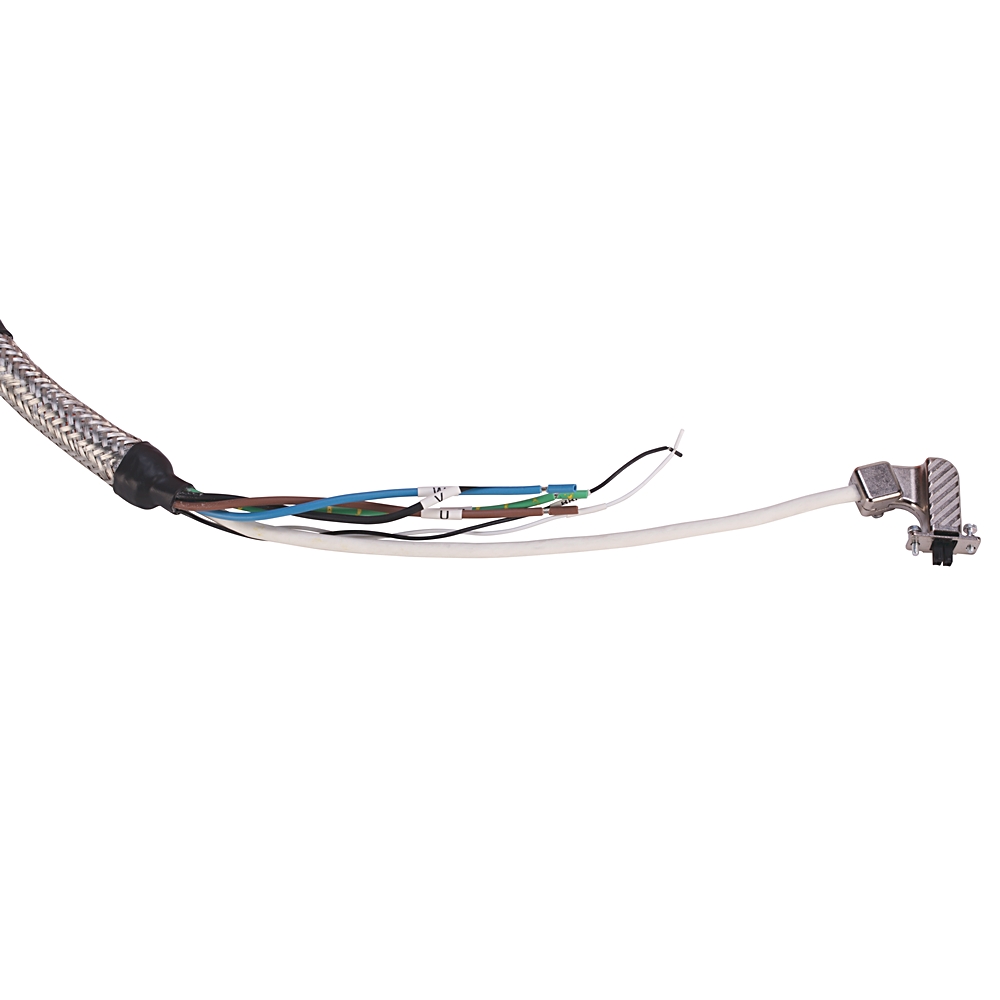

| Drive-end Connector Type | Drive-end, flying-leads with factory pre-installed connector kit (optimized for Kinetix 5700) |
| Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol |
| Lifecycle Status | Active |
| Max. conductor temperature | 105 °C |
| Motor-end Connector Type | Single speedTec DIN connector |
| Nominal cross section conductor | 5.26 |
| Nominal cross section conductor (AWG) | 10.38 |
| Nominal voltage U | 1000 V |
| Number of cores | 8 |
| Outer diameter approx. | 19 mm |
| Repair Options Available | No |
| Twisted cores | false |
| Weight, approx | Continuous-flex, power with brake wire: 0.551 kg/m |
| With protective conductor | true |
