Allen-Bradley 100 A 194E Load switch 194E-E100-1753-6G
Brand: Allen-Bradley
SKU: 194E-E100-1753-6G
Ships Same Day*
Worldwide Shipping
| Actuator type | Supplied with a type G black/grey actuator |
|---|---|
| Ambient enclosed temperature | -20 °C |
| Ambient operation temperature | -25 °C |
| Ambient storage temperature | -40 °C |
| Build America, Buy America | No |
| Colour control element | Black |
| Conditioned rated short-circuit current Iq | 25 kA |
| Continuous current | UL/CSA (applications): 100 A |
| Conventional enclosed thermal current (Ie) | 100 A per IEC |
| Conventional free air thermal current (Ith) | 120 A per IEC |
| Degree of protection (IP), front side | IP20 |
| Degree of protection (NEMA) | Other |
| Device construction | Built-in device fixed built-in technique |
| Fine strands wire gauge | 4...35 mm2 (10...1 AWG) |
| Fuse rating of circuit (type g, G), max | Short circuit current (co-ordination type 2): 100A @ 400/415V |
| Hp motor rating | UL/CSA application: 7.5Hp @ 120V, 60 Hz, 1 pole, 1 phase |
| Installation | Open-front/door |
| Interlockable | true |
| Knockouts | PG-type cable gland entry |
| Lifecycle Status | Active |
| Lost power per pole | 5.5 W |
| Max. rated operation voltage Ue AC | 690 V |
| Mechanical life operations | 200000 |
| Motor drive integrated | false |
| Motor FLA rating | UL/CSA application: 84A @ 120V, 60 Hz, 3 pole, 3 phase |
| Number of auxiliary contacts as normally closed contact | 0.000000 |
| Number of auxiliary contacts as normally open contact | 0.000000 |
| Number of switches | 1 |
| Protection class according to IEC 529 | Switch bodies: IP20 @ motor rating 60 Hz |
| Rated breaking capacity | AC-23A (cosφ 0.45): 800A @ 400V |
| Rated current (Ie) | DC-21A (for resistive loads): 80A @ 110V, 2 pole in series, T ≤1 ms, Ue max = 660V |
| Rated frequency | 60 Hz |
| Rated impulse voltage (Uimp) | 8 kV per UL, CSA |
| Rated isolation voltage (Ui) | 690V per IEC |
| Rated operation power at AC-23, 400 V | 55 kw |
| Rated operation power at AC-3, 400 V | 37 kw |
| Rated operational voltage (Ue) | 690V per IEC |
| Rated permanent current Iu | 100 A |
| Rated power (Pe) | AC-3: 22 kW @ 690V |
| Rated short-time withstand current lcw | 2500 kA |
| Repair Options Available | No |
| Rigid wire gauge | 4...50 mm2 (10...1 AWG) |
| Suitable for distribution board installation | false |
| Suitable for front mounting 4-hole | true |
| Suitable for front mounting centre | true |
| Switch body depth, approx | 90 mm (3-35/64 in) @ 100 A |
| Switch body height, approx | 90 mm (3-35/64 in) @ 100 A |
| Switch body width, approx | 72 mm (2-27/32 in) @ 100 A |
| Switch configuration | OFF-ON 90° |
| Switch size | 100 A |
| Switching rate | 120 ops/h |
| Test voltage (Ui) | 2.5kV @ 1min |
| Tightening torque | 5.6 Nm (50 in-lb) |
| Type of control element | Long turning handle |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | false |
| Version as main switch | true |
| Version as maintenance-/service switch | true |
| Version as reversing switch | false |
| Voltage release optional | false |
| Wire gauge, max | Terminal size per IEC 947-1: A9 |
Frequently Asked Questions
How do I get pricing for 194E-E100-1753-6G?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 194E-E100-1753-6G?
194E-E100-1753-6G is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 194E-E100-1753-6G?
Key specifications include Actuator type: Supplied with a type G black/grey actuator; Ambient enclosed temperature: -20 °C; Ambient operation temperature: -25 °C; Ambient storage temperature: -40 °C. The full specification table on this page lists every published attribute for this part.
How quickly can 194E-E100-1753-6G ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 194E 1 NO-1 NC L.B. Aux. Contact Block…
SKU: 194E-E-PL11
Same-day dispatch*
Allen-Bradley Allen-Bradley 100 A 194E Load switch 194E-E100-1753-6N
SKU: 194E-E100-1753-6N
Same-day dispatch*
Allen-Bradley Allen-Bradley 194E 2 NO-2 NC Auxiliary Contact Block 194E-E-P22
SKU: 194E-E-P22
Same-day dispatch*

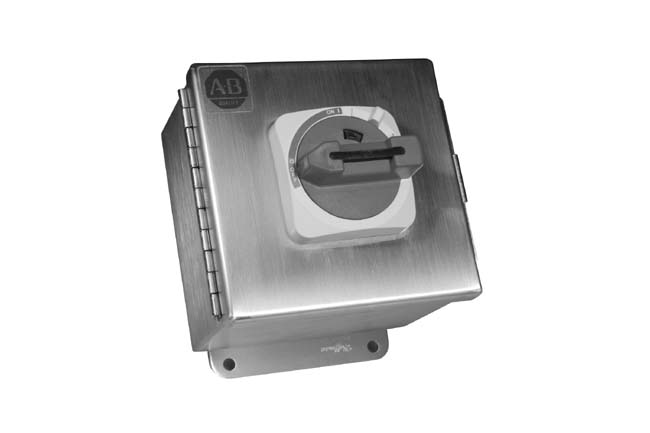

Allen-Bradley Allen-Bradley 194E Load switch 194E-DA32E
