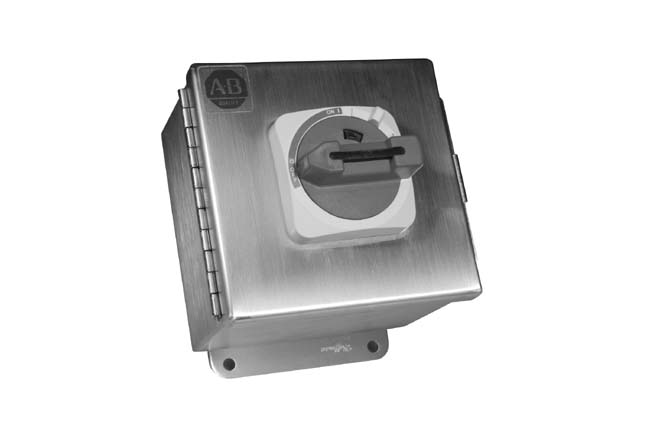

Allen-Bradley 194E Load switch 194E-DA32-P22
Brand: Allen-Bradley
SKU: 194E-DA32-P22
Ships Same Day*
Worldwide Shipping
| Actuator colour | Grey/black |
|---|---|
| Ambient enclosed temperature | -20 °C |
| Ambient operation temperature | -25 °C |
| Ambient storage temperature | -40 °C |
| Build America, Buy America | No |
| Colour control element | Black |
| Conditioned rated short-circuit current Iq | 15 kA |
| Continuous current | UL/CSA (applications): 32 A |
| Conventional enclosed thermal current (Ie) | 40 A per IEC |
| Conventional free air thermal current (Ith) | 50 A per IEC |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Device construction | Complete device in housing |
| Enclosed switch depth, approx | 160.53 mm (6.32 in) @ 63 A |
| Enclosed switch height, approx | 177.8 mm (7 in) @ 63 A |
| Enclosed switch width, approx | 171.45 mm (6.75 in) @ 63 A |
| Enclosure size | Standard size enclosure |
| Fine strands wire gauge | 1.5...10 mm2 (14...8 AWG) |
| Fuse rating of circuit (type g, G), max | Short circuit current (co-ordination type 2): 35A @ 400/415V |
| Heavy pilot duty | UL/CSA (applications): A600, AC |
| Hp motor rating | UL/CSA application: 7.5Hp @ 240V, 60 Hz, 3 pole, 3 phase |
| Installation | NEMA 4/4X-IP66 stainless steel-base/DIN rail, 6 x 6 x 4 |
| Interlockable | false |
| Lifecycle Status | Active |
| Lost power per pole | 1.5 W |
| Material housing | Stainless steel |
| Max. rated operation voltage Ue AC | 600 V |
| Mechanical life operations | 200000 |
| Model | Surface mounting |
| Motor drive integrated | false |
| Motor drive optional | false |
| Motor FLA rating | UL/CSA application: 22A @ 240V, 60 Hz, 3 pole, 3 phase |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of poles | 3 |
| Number of switches | 1 |
| Protection class according to IEC 529 | Switch bodies: IP20 @ motor rating 60 Hz |
| Rated breaking capacity | AC-23A (cosφ 0.45): 296A @ 230V |
| Rated current (Ie) | DC-21A (for resistive loads): 6A @ 220V, 2 pole in series, T ≤1 ms, Ue max = 660V |
| Rated frequency | 60 Hz |
| Rated impulse voltage (Uimp) | 8 kV per UL, CSA |
| Rated isolation voltage (Ui) | 690V per IEC |
| Rated operation power at AC-23, 400 V | 15 kw |
| Rated operation power at AC-3, 400 V | 11 kw |
| Rated operational voltage (Ue) | 690V per IEC |
| Rated permanent current Iu | 32 A |
| Rated power (Pe) | AC-3: 7.5 kW @ 230V |
| Rated short-time withstand current lcw | 900 kA |
| Repair Options Available | No |
| Right side mounting | No modification |
| Rigid wire gauge | 1.5...16 mm2 (14...8 AWG) |
| Suitable for distribution board installation | false |
| Suitable for floor mounting | false |
| Suitable for front mounting 4-hole | false |
| Suitable for front mounting centre | false |
| Suitable for intermediate mounting | false |
| Switch size | 32 A |
| Switching rate | 120 ops/h |
| Test voltage (Ui) | 2.5kV @ 1min |
| Tightening torque | 2 Nm (17 in-lb) |
| Type of control element | Door coupling rotary drive |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | true |
| Version as main switch | true |
| Version as maintenance-/service switch | true |
| Version as reversing switch | false |
| Version as safety switch | false |
| Voltage release optional | false |
| Wire gauge, max | Terminal size per IEC 947-1: A6 |
| With transparent cover | false |
