Allen-Bradley 80 A 194E Load switch 194E-A80-1753-6N
Allen-Bradley 194E-A80-1753-6N - Disconnect Switches - Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No.
The Allen-Bradley 194E-A80-1753-6N is part of the Disconnect Switches range in our industrial catalog. The manufacturer's published data for this part number specifies Lifecycle Status: Active and Build America, Buy America: No.
Key manufacturer data on file for this item includes Repair Options Available: No; Degree of protection (NEMA): Other; Type of electrical connection of main circuit: Screw connection; Device construction: Built-in device fixed built-in technique; Max. rated operation voltage Ue AC: 690 V; Mechanical life operations: 200000; Rated permanent current Iu: 80 A; Type of control element: Long turning handle; Version as main switch: true; Number of auxiliary contacts as normally open contact: 0; Number of auxiliary contacts as normally closed contact: 0; Ambient enclosed temperature: -20 °C. See the Specifications tab on this page for the full technical table.

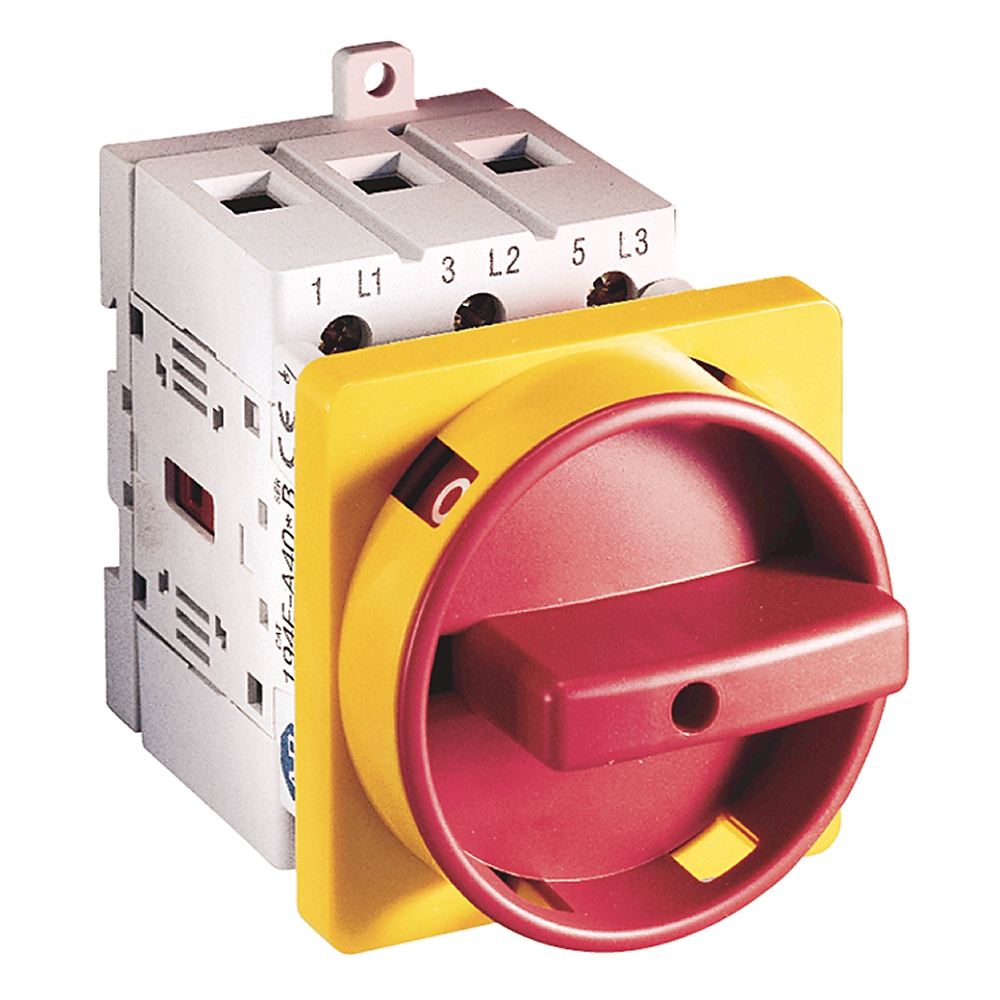

| Actuator type | Supplied with a type N red/yellow actuator |
|---|---|
| Ambient enclosed temperature | -20 °C |
| Ambient operation temperature | -25 °C |
| Ambient storage temperature | -40 °C |
| Build America, Buy America | No |
| Colour control element | Red |
| Conditioned rated short-circuit current Iq | 30 kA |
| Continuous current | UL/CSA (applications): 80 A |
| Conventional enclosed thermal current (Ie) | 80 A per IEC |
| Conventional free air thermal current (Ith) | 100 A per IEC |
| Degree of protection (IP), front side | IP20 |
| Degree of protection (NEMA) | Other |
| Device construction | Built-in device fixed built-in technique |
| Fine strands wire gauge | 4...35 mm2 (10...1 AWG) |
| Fuse rating of circuit (type g, G), max | Short circuit current (co-ordination type 2): 80A @ 400/415V |
| Hp motor rating | UL/CSA application: 50Hp @ 600V, 60 Hz, 3 pole, 3 phase |
| Installation | Open-base/DIN rail |
| Interlockable | true |
| Lifecycle Status | Active |
| Lost power per pole | 3.6 W |
| Max. rated operation voltage Ue AC | 690 V |
| Mechanical life operations | 200000 |
| Motor FLA rating | UL/CSA application: 68A @ 240V, 60 Hz, 3 pole, 3 phase |
| Number of auxiliary contacts as normally closed contact | 0.000000 |
| Number of auxiliary contacts as normally open contact | 0.000000 |
| Number of switches | 1 |
| Protection class according to IEC 529 | Switch bodies: IP20 @ motor rating 60 Hz |
| Rated breaking capacity | AC-23A (cosφ 0.45): 800A @ 400V |
| Rated current (Ie) | DC-21A (for resistive loads): 80A @ 96V, 2 pole in series, T ≤1 ms, Ue max = 660V |
| Rated frequency | 60 Hz |
| Rated impulse voltage (Uimp) | 8 kV per UL, CSA |
| Rated isolation voltage (Ui) | 690V per IEC |
| Rated operation power at AC-23, 400 V | 37 kw |
| Rated operation power at AC-3, 400 V | 30 kw |
| Rated operational voltage (Ue) | 690V per IEC |
| Rated permanent current Iu | 80 A |
| Rated power (Pe) | AC-3: 30 kW @ 690V |
| Rated short-time withstand current lcw | 2500 kA |
| Repair Options Available | No |
| Rigid wire gauge | 4...50 mm2 (10...1 AWG) |
| Suitable for distribution board installation | false |
| Switch body depth, approx | 89 mm (3.5 in) @ 80 A |
| Switch body height, approx | 90 mm (3-35/64 in) @ 80 A |
| Switch body width, approx | 72 mm (2-27/32 in) @ 80 A |
| Switch configuration | OFF-ON 90° |
| Switch size | 80 A |
| Switching rate | 120 ops/h |
| Test voltage (Ui) | 2.5kV @ 1min |
| Tightening torque | 5.6 Nm (50 in-lb) |
| Type of control element | Long turning handle |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | false |
| Version as main switch | true |
| Version as maintenance-/service switch | true |
| Version as reversing switch | false |
| Wire gauge, max | Terminal size per IEC 947-1: A9 |
