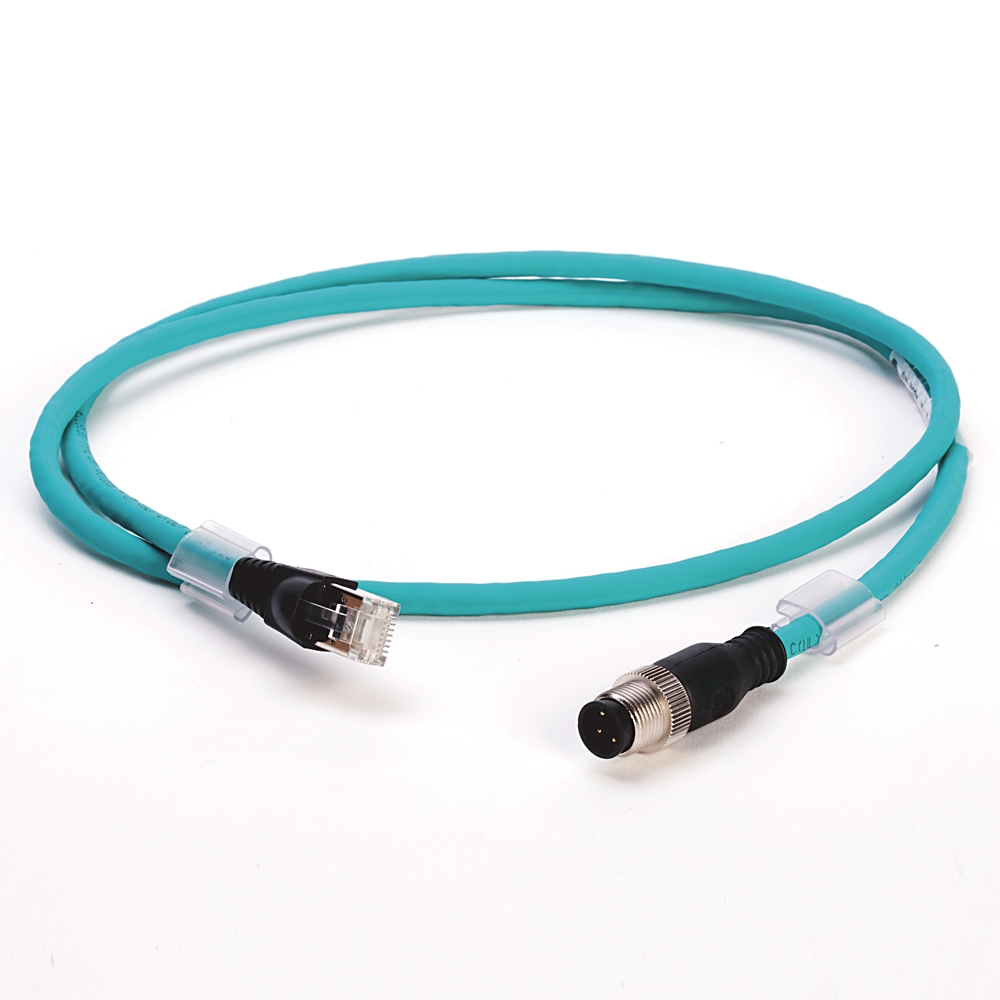

Allen-Bradley Micro D-Code, QD Style Ethernet Media 1585D-M4TBJM-45
Allen-Bradley 1585D-M4TBJM-45 - industrial components - Material: Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass; Length: 45 m ft; Voltage: 300 V V.
Allen-Bradley 1585D-M4TBJM-45 is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Material: Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass and Length: 45 m ft.
Key manufacturer data on file for this item includes Voltage: 300 V V; Operating Temperature: '-40 to 75 °C; Category: 5E; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP67; First End Description: Straight male; Number of Conductors: 4 conductors (2-pair); Second End Description: Straight male; AWG-size: 24 AWG; Cable bandwidth: 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring. See the Specifications tab on this page for the full technical table.
| AWG-size | 24 AWG |
|---|---|
| Bend radius | 10 x cable diam |
| Build America, Buy America | No |
| Cable bandwidth | 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring |
| Cable outer diameter | 5.6 mm |
| Cable rating | Weld splatter, sunlight, and oil resistant, UL CM, CMX, c-UL CM, TIA 568B |
| Cable type | Teal, unshielded twisted pair, TPE, high-flex, 24 AWG |
| Category | 5E |
| Crossover | Standard |
| Degree of protection (IP) | IP67 |
| First End Description | Straight male |
| Length | 45 m ft |
| Length, approx | 47 mm |
| Lifecycle Status | Active |
| Material | Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass |
| Material connector housing, connection 1 | Plastic |
| Mounting | Front-mount |
| Number of Conductors | 4 conductors (2-pair) |
| Operating Temperature | '-40 to 75 °C |
| Repair Options Available | No |
| Second End Description | Straight male |
| Secondary end connector | RJ45 connector |
| Special characteristic | Standard |
| Type of connector connection 1 | M12 |
| Voltage | 300 V V |
Frequently Asked Questions
How do I get pricing for 1585D-M4TBJM-45?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1585D-M4TBJM-45?
1585D-M4TBJM-45 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1585D-M4TBJM-45?
Key specifications include AWG-size: 24 AWG; Bend radius: 10 x cable diam; Build America, Buy America: No; Cable bandwidth: 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring. The full specification table on this page lists every published attribute for this part.
How quickly can 1585D-M4TBJM-45 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Micro D-Code, QD Style Ethernet Media 1585D-M4TBJM-4

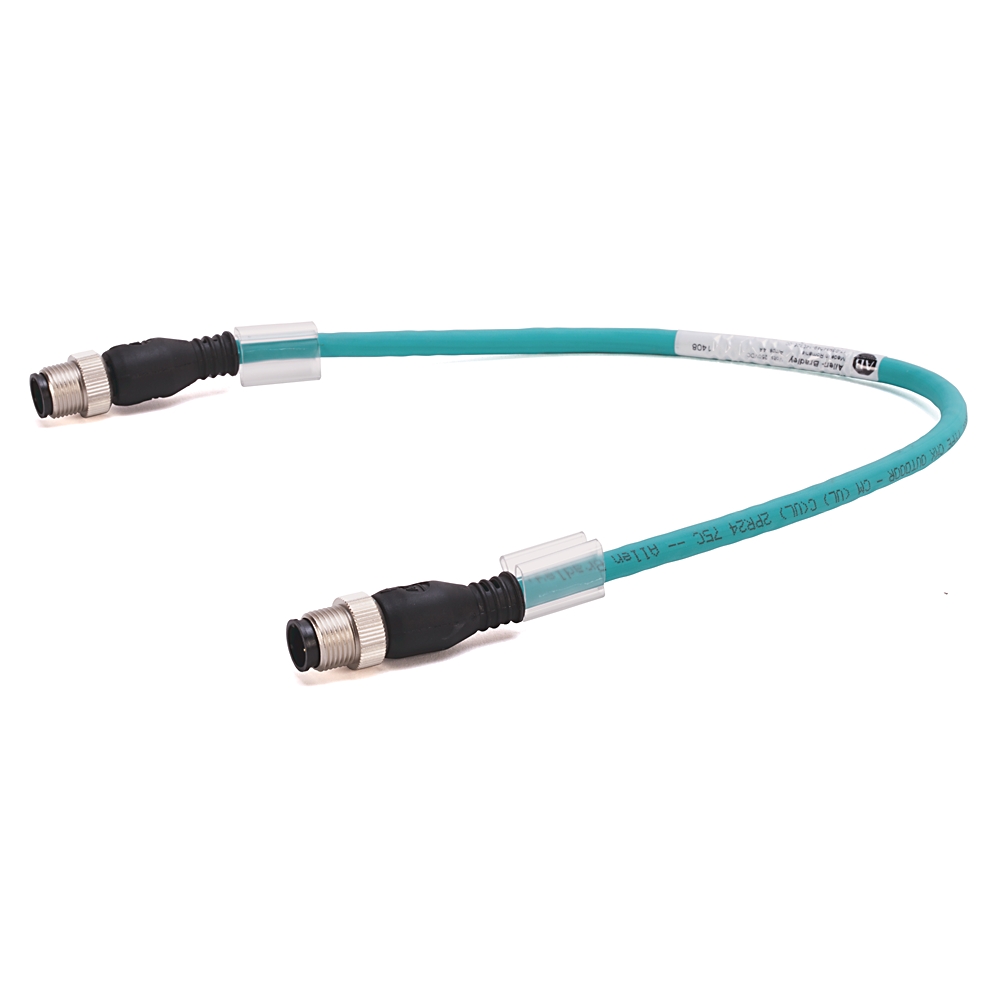

Allen-Bradley Allen-Bradley Micro D-Code, QD Style Ethernet Media 1585D-M4TBJM-55
