Allen-Bradley Micro D-Code, QD Style Ethernet Media 1585D-M4HBJM-12
Allen-Bradley 1585D-M4HBJM-12 - industrial components - Material: Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass; Length: 12 m ft; Voltage: 300 V V.
Allen-Bradley 1585D-M4HBJM-12 is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Material: Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass and Length: 12 m ft.
The specification set recorded for this part number covers Voltage: 300 V V; Operating Temperature: '-20 to 80 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP67; Construction: Standard; Data Transfer Rate: 100BASE-TX, 100 Mbit/s; First End Connector: Micro D-Code, QD Style; First End Description: Straight male; Number of Conductors: 4 conductors (2-pair); Second End Connector: RJ45 Connector. The complete technical table is shown in the Specifications tab on this page.
| AWG-size | 22 AWG |
|---|---|
| Bend radius | 10 x cable diam |
| Build America, Buy America | No |
| Cable bandwidth | 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring |
| Cable outer diameter | 8.13 mm |
| Cable rating | (UL) CMX, CMR, c(UL) CMG, (UL) PLTC or AWM 2570 80°C @ 600V, TIA-568-B |
| Cable type | Teal, foil shield, 600V PVC, 22 AWG |
| Construction | Standard |
| Crossover | Standard |
| Data Transfer Rate | 100BASE-TX, 100 Mbit/s |
| Degree of protection (IP) | IP67 |
| First End Connector | Micro D-Code, QD Style |
| First End Description | Straight male |
| Length | 12 m ft |
| Length, approx | 47 mm |
| Lifecycle Status | Active |
| Material | Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass |
| Material connector housing, connection 1 | Plastic |
| Mounting | Front-mount |
| Number of Conductors | 4 conductors (2-pair) |
| Operating Temperature | '-20 to 80 °C |
| Repair Options Available | No |
| Second End Connector | RJ45 Connector |
| Second End Description | Straight male |
| Secondary end connector | RJ45 connector |
| Special characteristic | Standard |
| Type of connector connection 1 | M12 |
| Voltage | 300 V V |
Frequently Asked Questions
How do I get pricing for 1585D-M4HBJM-12?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1585D-M4HBJM-12?
1585D-M4HBJM-12 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1585D-M4HBJM-12?
Key specifications include AWG-size: 22 AWG; Bend radius: 10 x cable diam; Build America, Buy America: No; Cable bandwidth: 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring. The full specification table on this page lists every published attribute for this part.
How quickly can 1585D-M4HBJM-12 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

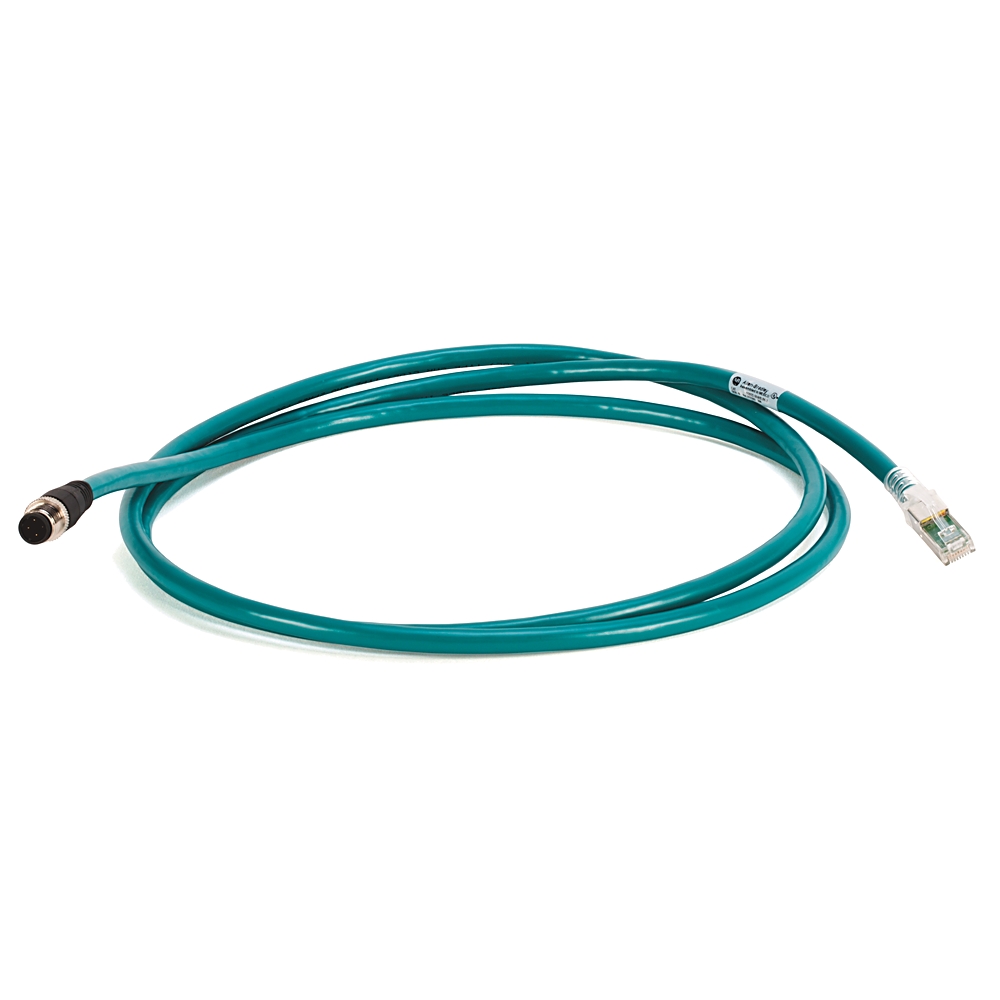

Allen-Bradley Allen-Bradley Micro D-Code, QD Style Ethernet Media 1585D-M4HBJM-2
Allen-Bradley Allen-Bradley Micro D-Code, QD Style Ethernet Media 1585D-M4HBJM-10
Allen-Bradley Allen-Bradley Micro D-Code, QD Style Ethernet Media 1585D-M4HBJM-3

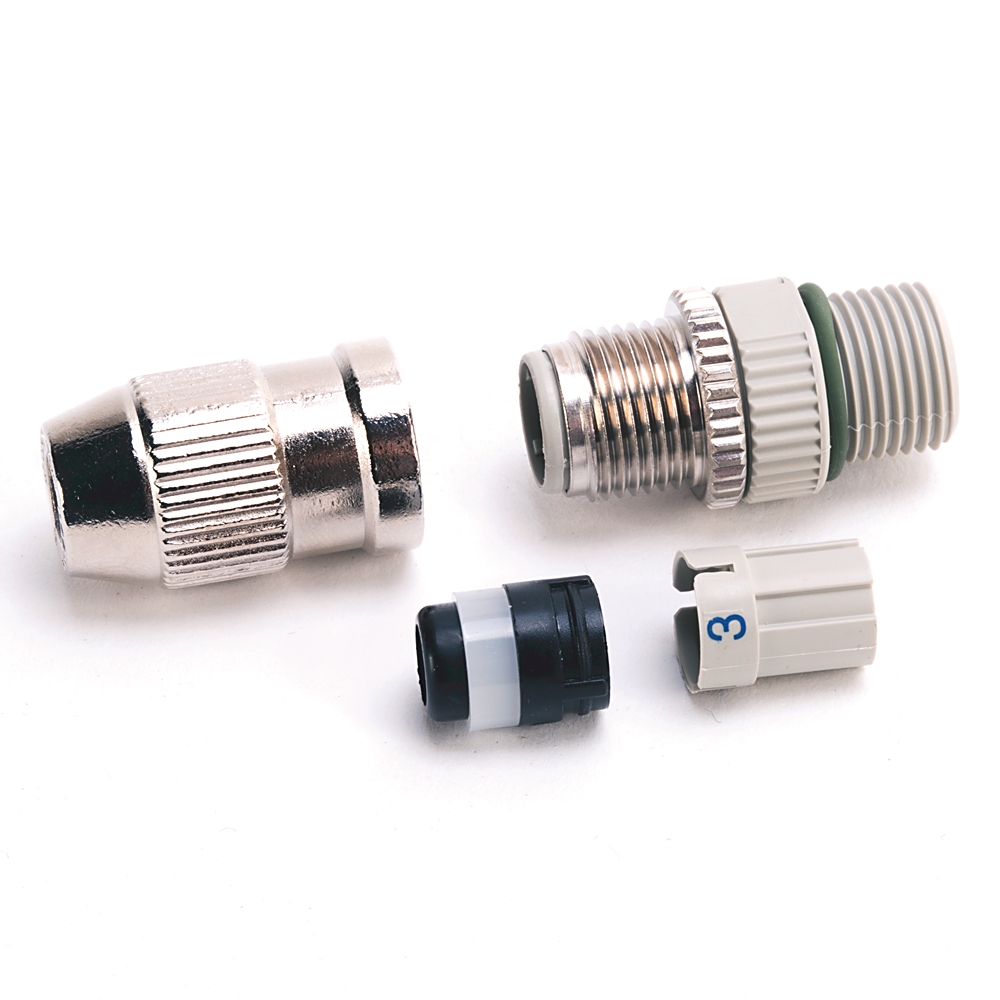

Allen-Bradley Allen-Bradley Micro D-Code, QD Style Ethernet Media 1585D-M4HBDM-35
