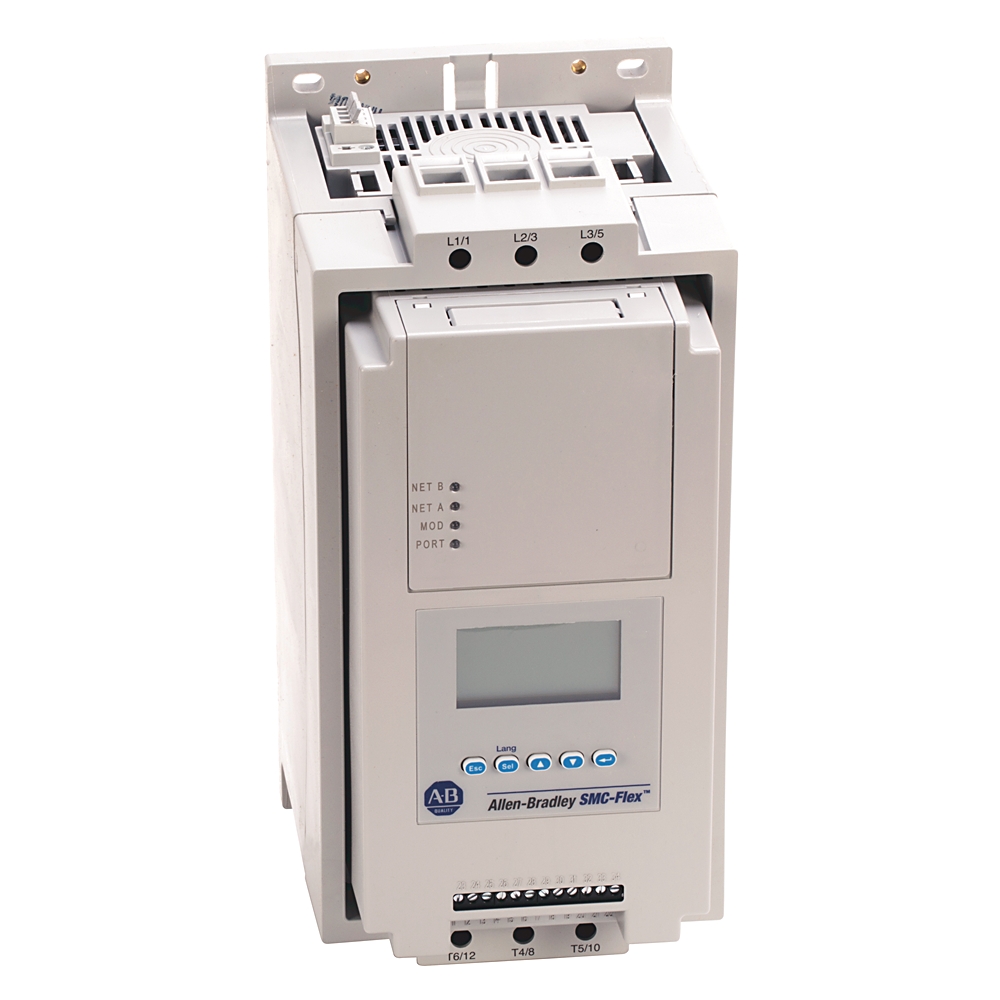

Allen-Bradley SMC Flex Smart Motor Controller 150-F1250NCE
Allen-Bradley 150-F1250NCE - Compact AC Motor Soft Starters - Width: 596.9 mm (23.50 in) mm; Height: 1041.1 mm (41 in) mm; Enclosure: Open type.
This listing covers the Allen-Bradley 150-F1250NCE, a part number in the Compact AC Motor Soft Starters category. The manufacturer's published data for this part number specifies Width: 596.9 mm (23.50 in) mm and Height: 1041.1 mm (41 in) mm.
The specification set recorded for this part number covers Enclosure: Open type; Function: Single direction; Weight: 224 kg; Operating Temperature: Open: -5 to 50 °C (23 to 122 °F); Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: Yes; Sub Brand: SMC Flex; Depth: 346.2 mm (13.63 in); Rated control supply voltage at AC 50 Hz: 110 V; Rated control supply voltage at AC 60 Hz: 110 V; Voltage type for actuating: AC. See the Specifications tab on this page for the full technical table.
| Altitude | 2000 m |
|---|---|
| Ampere tested european style, max | Two fuses in parallel 6,6URD33xxx1250 @ 690V for maximum FLC |
| Ampere tested north american style, max | Two fuses in parallel A070URD33xxx1250 @ 690V for maximum FLC |
| Break | 360VA for auxiliary contacts |
| Build America, Buy America | No |
| Cold resistance of PTC sensor chain, max | 1500 Ω for PTC input ratings |
| Contact type | auxiliary contacts 19/20 (Aux #1), 29/30 (Aux #2), 31/32 (Aux #3) and 33/34 (Aux #4) |
| Control modules construction | Thermoset and thermoplastic moldings |
| Control options | None |
| Control terminals | ClAing yoke connection, M3 screw clA |
| Control Voltage | 100...120V AC |
| Controller Rating | 1250 A 1000Hp @ 460V AC |
| Controller type | Soft starter |
| Conventional thermal current (Ith) | AC/DC: 5 A for auxiliary contacts |
| Delta connected motor current | 533...1600A @ 500/575V AC, 3-phase |
| Delta connected motor power, max | 900 kW @ 400/415V AC @ 50Hz, 3-phase |
| Depth | 346.2 mm (13.63 in) |
| Dielectric withstand | 2500V per IEC for power circuit |
| DV/DT protection | RC snubber network for power circuit |
| EMC emission levels | Radiated emission: Class A |
| EMC immunity levels | Surge transient: per EN/IEC 60947-4-2 |
| Enclosure | Open type |
| Function | Single direction |
| Heatsink fan rating | 150VA @ 110/120V AC or 220/240V AC |
| Height | 1041.1 mm (41 in) mm |
| High capacity available fault current, max | 85kA @ 600V, maximum current 3000 A time delay Class J or Class L fuse for line connected motors |
| Humidity | 5...95% (noncondensing) |
| Input OFF-state current | <10 mA AC, <3 mA DC for control circuit @ input OFF-state voltage |
| Input OFF-state voltage, max | 50V AC @ 10V DC/12V AC for control circuit |
| Input ON-state current | 20mA @ 120V AC/40mA @ 240V AC, 7.6mA @ 24V AC/DC for control circuit |
| Input ON-state voltage, min | 85V AC @ 19.2V DC/20.4V AC for control circuit |
| Insulation voltage | Rated 500V per IEC for power circuit |
| Integrated motor overload protection | true |
| Internal bypass | true |
| Lifecycle Status | Discontinued |
| Line connected motor current | 416...1250 A @ 600/Y/690V AC, 3-phase |
| Line connected motor power, max | 900 kW @ 500V AC @ 50Hz, 3-phase |
| Line/load side power terminals | Two 13.5 mm (0.53 in) diam holes per power pole |
| Make | 3600VA for auxiliary contacts |
| Metal parts construction | Plated brass, copper or painted steel |
| Number of contacts | 1 for auxiliary contacts |
| Number of poles | 3 |
| Number of sensors, max | 6 for PTC input ratings |
| Operating frequency | 50/60 Hz for power circuit |
| Operating Temperature | Open: -5 to 50 °C (23 to 122 °F) |
| Optional controller feature | SMB smart motor braking control: provides motor braking without additional equipment for applications that require the motor to stop quickly, braking current is adjustable from 0...400% of the motor’s full-load current rating |
| Overload current for delta connected devices | 533 A |
| Overload current for line connected devices | 416 A |
| Pollution degree | 2 |
| Power pole construction | Heatsink hockey puck thyristor modular design |
| Power terminal markings | NEMA, CENELEC EN50 012 |
| Protection against electrical shock | IP00 (open device) per IEC for power circuit |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 110 V |
| Rated impulse voltage | 6000V per IEC for power circuit |
| Rated operating voltage Ue | 200 V |
| Rated operational current | 3A @ 120V AC, 1.5A @ 240V AC for auxiliary contacts |
| Rated operational voltage | 200...600V AC (-15%, +10%) per UL/CSA/NEMA for power circuit |
| Repair Options Available | Yes |
| Repetitive peak inverse voltage rating | 1600V per UL/CSA/NEMA for power circuit |
| Reset resistance | 1600 Ω ± 100 Ω for PTC input ratings |
| Response resistance | 3400 Ω ± 150 Ω for PTC input ratings |
| Response time | 800 ms for PTC input ratings |
| Shock | opsal: 4 G |
| Short circuit protection device performance (SCPD) type | Type 1 |
| Short circuit trip resistance | 25 Ω ± 10 Ω for PTC input ratings |
| Short-circuit protection device list | Standard fuse, circuit breaker and high capacity time delay class CC/J/L |
| Standard available fault current, max | 85kA @ 690V for maximum FLC |
| Standard controller feature | Status indication: stopped, starting, stopping, at speed, alarm and fault |
| Steady state heat dissipation with control and fan power | 1222 W |
| Storage and transportation temperature | -20 °C |
| Sub Brand | SMC Flex |
| Tachometer input | 0...5V DC @ 4.5V DC = 100% Speed |
| Transformer rating control module | 751 VA (recommended 800 VA) |
| Transient protection | Metal oxide varistors: 220 J (optional) for power circuit |
| Trip classes | 10, 15, 20 and 30 |
| Trip current rating | 117% of motor FLC |
| Type of contacts | Progmable NO/NC for auxiliary contacts |
| Type of control circuit | Electromagnetic relay for auxiliary contacts |
| Type of current | AC for auxiliary contacts |
| Utilization category | MG 1 per UL/CSA/NEMA for power circuit |
| Vibration | opsal: 1.0 G peak, 0.15 mm (0.006 in) displacement |
| Voltage at PTC terminals (RPTC = 4 kΩ), max | <7.5 for PTC input ratings |
| Voltage at PTC terminals (RPTC = open), max | 30V for PTC input ratings |
| Voltage type for actuating | AC |
| Weight | 224 kg |
| Width | 596.9 mm (23.50 in) mm |
| With display | true |
