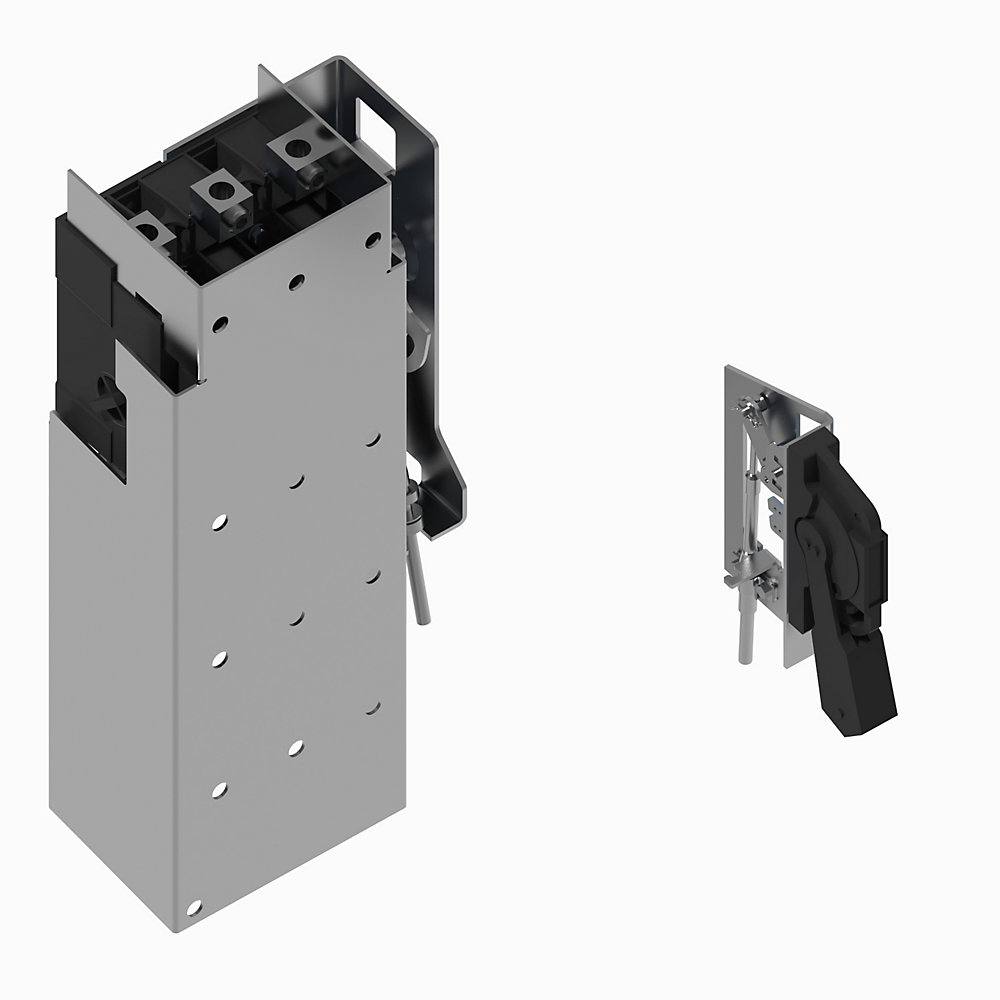

Allen-Bradley 200 A Switch Disconnect Kits 1494U-N200-C4-LC-M-PC
Allen-Bradley 1494U-N200-C4-LC-M-PC - industrial components - Width: 8.41 in mm; Material: Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish; Height: 12.4 in mm.
The 1494U-N200-C4-LC-M-PC from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Width: 8.41 in mm and Material: Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish.
Key manufacturer data on file for this item includes Height: 12.4 in mm; Relative Humidity: 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1; Ambient temperature: Storage: -40...65 °C (-40...149 °F); Degree of protection: Operating handles: painted Type 1, 3R, 4, 12; Lifecycle Status: Active; Build America, Buy America: Yes; Repair Options Available: No; Depth: 4.71 in; Type of electrical connection of main circuit: Screw connection; Altitude: 2000 m (6562 ft) per IEC 947-1; Auxiliary contact electrical ratings: AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC; Conductor size: Single Port copper lug: 6…250 AWG @ copper conductor. See the Specifications tab on this page for the full technical table.
| Altitude | 2000 m (6562 ft) per IEC 947-1 |
|---|---|
| Ambient temperature | Storage: -40...65 °C (-40...149 °F) |
| Auxiliary contact electrical ratings | AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC |
| Build America, Buy America | Yes |
| Conductor size | Single Port copper lug: 6…250 AWG @ copper conductor |
| Connection type | Switch body : glass-filled thermoplastic |
| Continuous current rating | 200 A |
| Degree of protection | Operating handles: painted Type 1, 3R, 4, 12 |
| Depth | 4.71 in |
| Device construction | Built-in device fixed built-in technique |
| Dielectric strength | 2200V @ 1min |
| Efficiency | -20 |
| Electrical interlock ratings | Standard contact 2 NO: 10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC |
| Factory option | Protective cover |
| Flicker | 10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC |
| Fuse block option | 110 kW @ 500...600V AC, 3-phase, 50 Hz |
| Height | 12.4 in mm |
| Hold-up time | -40 |
| Hp rating, max | 60Hp @ 230V AC, 3-phase, 60 Hz per UL and CSA |
| Individual harmonics (DC-127th) | 40Hp @ 600V DC per UL and CSA |
| Interharmonics | AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA min per IEC |
| Interlockable | true |
| KW rating, max | 90 kW @ 380...440V AC, 3-phase, 50 Hz per IEC (AC23) |
| LED status | 8000 |
| Level-5 lens color | 2000 m per IEC 947-1 |
| Lifecycle Status | Active |
| Material | Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish |
| Mechanical life operations | 8000 |
| Motor drive optional | false |
| NEMA rating designation | 200A @ 250/600V DC |
| Number of poles | 3 |
| Number of switches | 1 |
| Operating distance | 2200V @ 1min |
| Operating handle style | Knife switch style handle |
| Operational range | 10000A @ 600V AC/DC : unfused or with class H fuses |
| Power losses | 16 |
| Rated input current | Lug to terminal : 175 in-lb |
| Rated output current | 200 A switch, non-fusible |
| Rated permanent current Iu | 200 A |
| Recommended torque | Switch side: 275 in-lb |
| Relative Humidity | 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1 |
| Repair Options Available | No |
| Short circuit withstand capability | 10000A @ 600V AC/DC, unfused or with class H fuses |
| Special family function | 5 |
| Special product function | Knife switch style handle |
| Spot size | 90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1 |
| Sub group | -20 |
| Switch and fuse rating (fusing) | 200 A switch, non-fusible |
| Switching frequency, max | 5 ops/m |
| Temperature, max | Protective cover |
| Transient detect | AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 5V @ 1mA min per IEC |
| Type of control element | Long turning handle |
| Type of electrical connection of main circuit | Screw connection |
| Version as main switch | true |
| Voltage release optional | false |
| Width | 8.41 in mm |
| With pre-assembled cabling | false |
Frequently Asked Questions
How do I get pricing for 1494U-N200-C4-LC-M-PC?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1494U-N200-C4-LC-M-PC?
1494U-N200-C4-LC-M-PC is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1494U-N200-C4-LC-M-PC?
Key specifications include Altitude: 2000 m (6562 ft) per IEC 947-1; Ambient temperature: Storage: -40...65 °C (-40...149 °F); Auxiliary contact electrical ratings: AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC; Build America, Buy America: Yes. The full specification table on this page lists every published attribute for this part.
How quickly can 1494U-N200-C4-LC-M-PC ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30A switch Disconnect Kits 1494U-N30-C3-M-PC
Allen-Bradley Allen-Bradley Disconnect Kits 1494U-J60-CR-M-NONO-PC
Allen-Bradley Allen-Bradley 30A switch Disconnect Kits 1494U-N30-CR-M-NO-PC

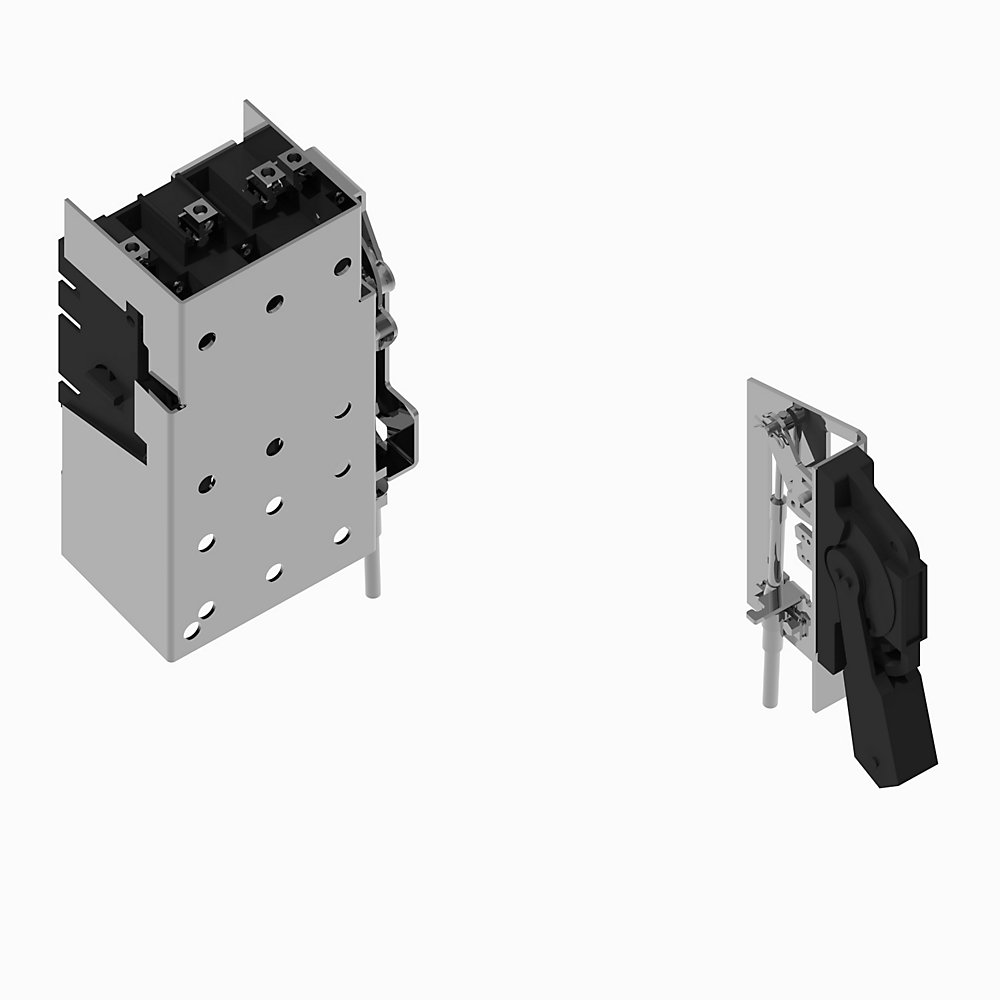

Allen-Bradley Allen-Bradley Disconnect Kits 1494U-J60-CR-M-NCNO-PC
