Allen-Bradley DeviceNet Physical Media 1485RS-P2N5-M5
Allen-Bradley 1485RS-P2N5-M5 - industrial components - Material: Coupling nut: Epoxy-coated Zinc, jacket: yellow CPE (chemical resistant) or grey PVC, contact, mini: Gold-plated machined Brass, contact, micro: Gold over Nickel‐plated Brass; Length: 2,0-3M ft; Cable length: 2000 mm.
This listing covers the Allen-Bradley 1485RS-P2N5-M5, a part number in the industrial components category. The manufacturer's published data for this part number specifies Material: Coupling nut: Epoxy-coated Zinc, jacket: yellow CPE (chemical resistant) or grey PVC, contact, mini: Gold-plated machined Brass, contact, micro: Gold over Nickel‐plated Brass and Length: 2,0-3M ft.
The specification set recorded for this part number covers Cable length: 2000 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 5; Number of Conductors: 1 pair 22 AWG, 1 pair 24 AWG and drain; Cable rating: Grey PVC: UL CL2 or CMG 75 °C (167 °F) or AWM 600V or c(UL) CMG or AWM I/II 80 °C (176 °F) 300V FT4, Grey High-Flex PVC: UL CL2 75 °C (167 °F) or AWM 20201 80 °C (176 °F) 600V or CSA AWM I/II 80 °C (176 °F) 600V FT4, Yellow CPE: UL- CL2 or CM 75 °C (167 °; Cable type: Thin media, yellow CPE; Special characteristic: Stainless Steel hardware; Enclosure type rating: NEMA 1, 2, 3, 4, 6P, 12, 13, IP67, 1200 psi (8720 kPa) washdown; Assembly rating: 250V @ 4A; Degree of protection (IP), mounted: IP67. See the Specifications tab on this page for the full technical table.
| Assembly rating | 250V @ 4A |
|---|---|
| Bend radius | 10 x diam |
| Build America, Buy America | No |
| Cable details | Standard passive cable |
| Cable diameter | 6.9 mm (0.27 in) |
| Cable length | 2000 mm |
| Cable rating | Grey PVC: UL CL2 or CMG 75 °C (167 °F) or AWM 600V or c(UL) CMG or AWM I/II 80 °C (176 °F) 300V FT4, Grey High-Flex PVC: UL CL2 75 °C (167 °F) or AWM 20201 80 °C (176 °F) 600V or CSA AWM I/II 80 °C (176 °F) 600V FT4, Yellow CPE: UL- CL2 or CM 75 °C (167 ° |
| Cable type | Thin media, yellow CPE |
| Current, max | 4 A |
| Degree of protection (IP), mounted | IP67 |
| Enclosure type rating | NEMA 1, 2, 3, 4, 6P, 12, 13, IP67, 1200 psi (8720 kPa) washdown |
| First end connector style | Mini, straight female |
| Length | 2,0-3M ft |
| Lifecycle Status | Active |
| Material | Coupling nut: Epoxy-coated Zinc, jacket: yellow CPE (chemical resistant) or grey PVC, contact, mini: Gold-plated machined Brass, contact, micro: Gold over Nickel‐plated Brass |
| Material of contact surface | Gold |
| Number of Conductors | 1 pair 22 AWG, 1 pair 24 AWG and drain |
| Number Of Pins | Standard 5-pin |
| Number of poles | 5 |
| Repair Options Available | No |
| Second end conductors | Standard 5-pin |
| Second end termination style | Mini, straight male |
| Special characteristic | Stainless Steel hardware |
Frequently Asked Questions
How do I get pricing for 1485RS-P2N5-M5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1485RS-P2N5-M5?
1485RS-P2N5-M5 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1485RS-P2N5-M5?
Key specifications include Assembly rating: 250V @ 4A; Bend radius: 10 x diam; Build America, Buy America: No; Cable details: Standard passive cable. The full specification table on this page lists every published attribute for this part.
How quickly can 1485RS-P2N5-M5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley DeviceNet Physical Media 1485RS-P2M5-R5
Allen-Bradley Allen-Bradley DeviceNet Physical Media 1485RS-P3N5-C
Allen-Bradley Allen-Bradley DeviceNet Physical Media 1485RS-P1M5-R5

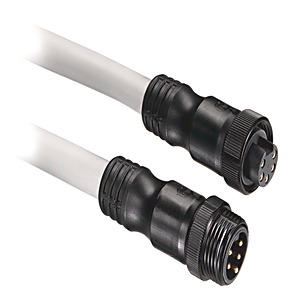

Allen-Bradley Allen-Bradley DeviceNet Physical Media 1485RS-P5F5-C
