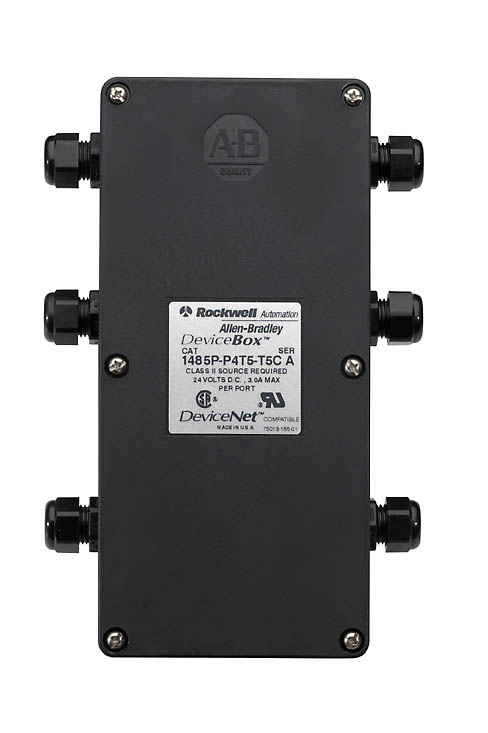

Allen-Bradley DeviceNet Connection Device 1485P-P2T5-T5
Allen-Bradley 1485P-P2T5-T5 - industrial components - Material: Devicebox™, round media: Black Polymer; Operating Temperature: -25 °C; Storage Temperature: -40 °C.
Allen-Bradley 1485P-P2T5-T5 is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Material: Devicebox™, round media: Black Polymer and Operating Temperature: -25 °C.
Published specifications for this part include Storage Temperature: -40 °C; Relative Humidity: Devicebox™, round media: 5...95% (noncondensing); Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (NEMA): 13; Connector: Terminal Connection,Thick cable terminals,standard key location; Special characteristic: Standard material: Epoxy-coated Zinc coupling nuts; Enclosure type rating: Devicebox™, round media: NEMA 3, 4X, 12 and 13, 1200 psi (8270 kPa) washdown; Assembly rating: Devicebox™, round media: 24V @ 8A; Material of contact surface: Gold; Bulletin Number: Tap devices used to provide drop connections, allowing connection of DeviceNet products to a DeviceNet trunk. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | Devicebox™, round media: 24V @ 8A |
|---|---|
| Build America, Buy America | No |
| Bulletin Number | Tap devices used to provide drop connections, allowing connection of DeviceNet products to a DeviceNet trunk |
| Colour housing | Black |
| Connector | Terminal Connection,Thick cable terminals,standard key location |
| Current, max | Devicebox™, round media, thick: 8 A max. total current, (7.5 A max. per trunk) |
| Degree of protection (NEMA) | 13 |
| Drop connector type | Cable glands designed for use with devicenet thin cable, drop cable connection via terminal block connectors |
| Enclosure type rating | Devicebox™, round media: NEMA 3, 4X, 12 and 13, 1200 psi (8270 kPa) washdown |
| Keyway orientation | Standard key location |
| Lifecycle Status | Active |
| Material | Devicebox™, round media: Black Polymer |
| Material of contact surface | Gold |
| Number of drop ports | 2 drop connectors |
| Operating Temperature | -25 °C |
| Relative Humidity | Devicebox™, round media: 5...95% (noncondensing) |
| Repair Options Available | No |
| Special characteristic | Standard material: Epoxy-coated Zinc coupling nuts |
| Storage Temperature | -40 °C |
| Trunk connection | Cable glands designed for use with devicenet thick cable, trunk cable connection via terminal block connectors |
| With LED indication | false |
Frequently Asked Questions
How do I get pricing for 1485P-P2T5-T5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1485P-P2T5-T5?
1485P-P2T5-T5 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1485P-P2T5-T5?
Key specifications include Assembly rating: Devicebox™, round media: 24V @ 8A; Build America, Buy America: No; Bulletin Number: Tap devices used to provide drop connections, allowing connection of DeviceNet products to a DeviceNet trunk; Colour housing: Black. The full specification table on this page lists every published attribute for this part.
How quickly can 1485P-P2T5-T5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

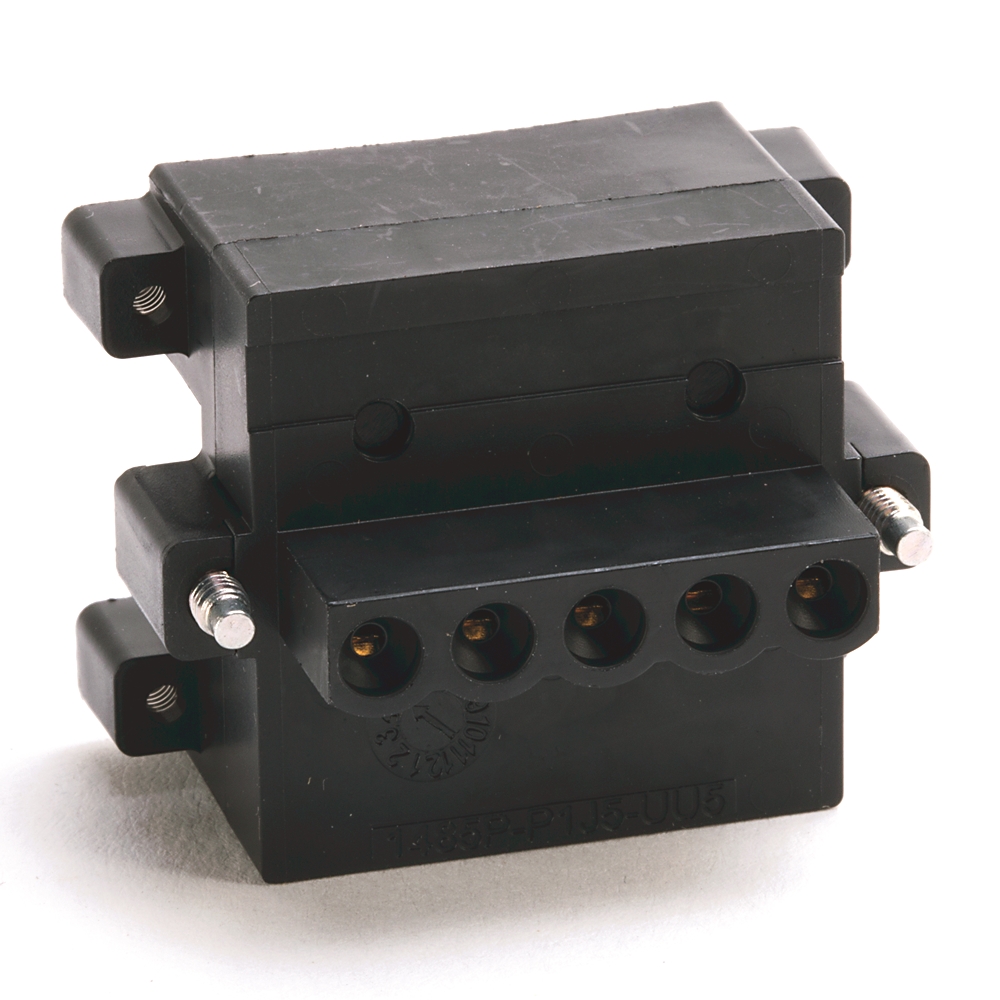

Allen-Bradley Allen-Bradley DeviceNet Connection Device 1485P-P1R5-MN5
Allen-Bradley Allen-Bradley DeviceNet Connection Device 1485P-P2T5-T5C

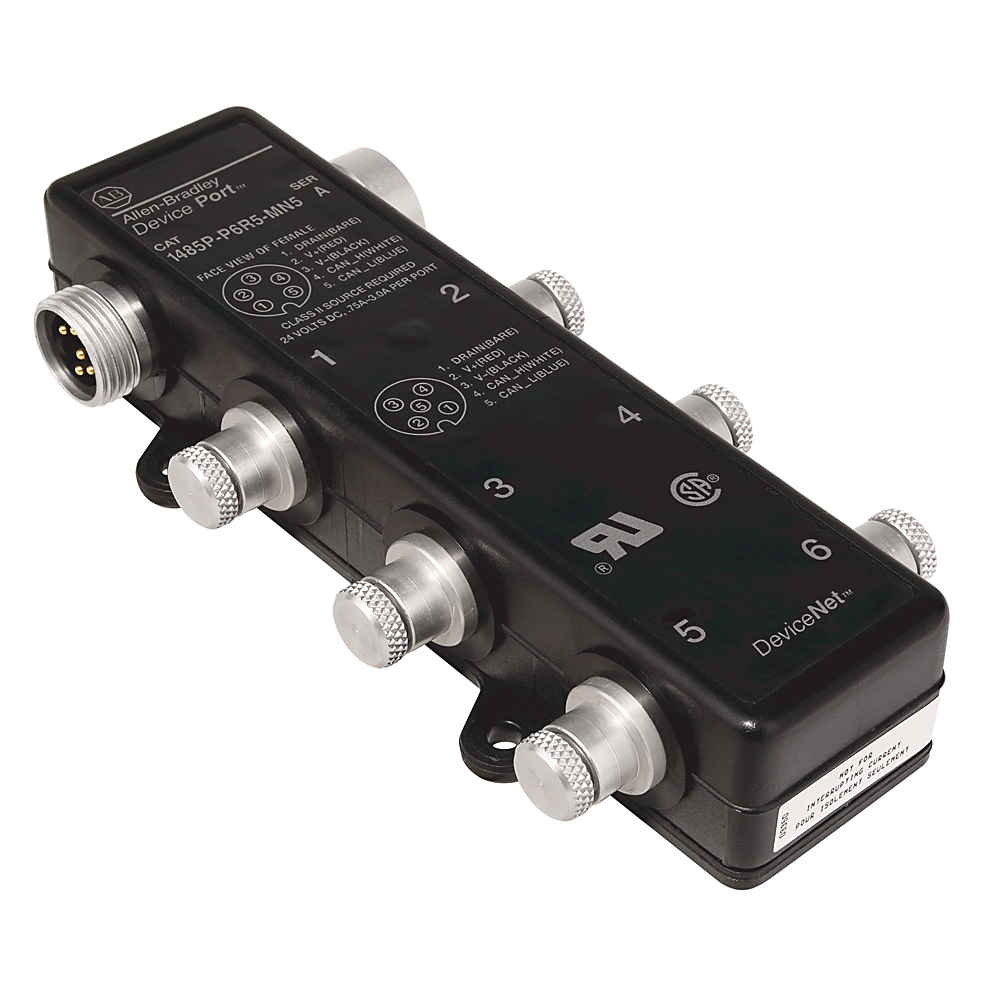

Allen-Bradley Allen-Bradley DeviceNet Connection Device 1485P-P6N5-MN5

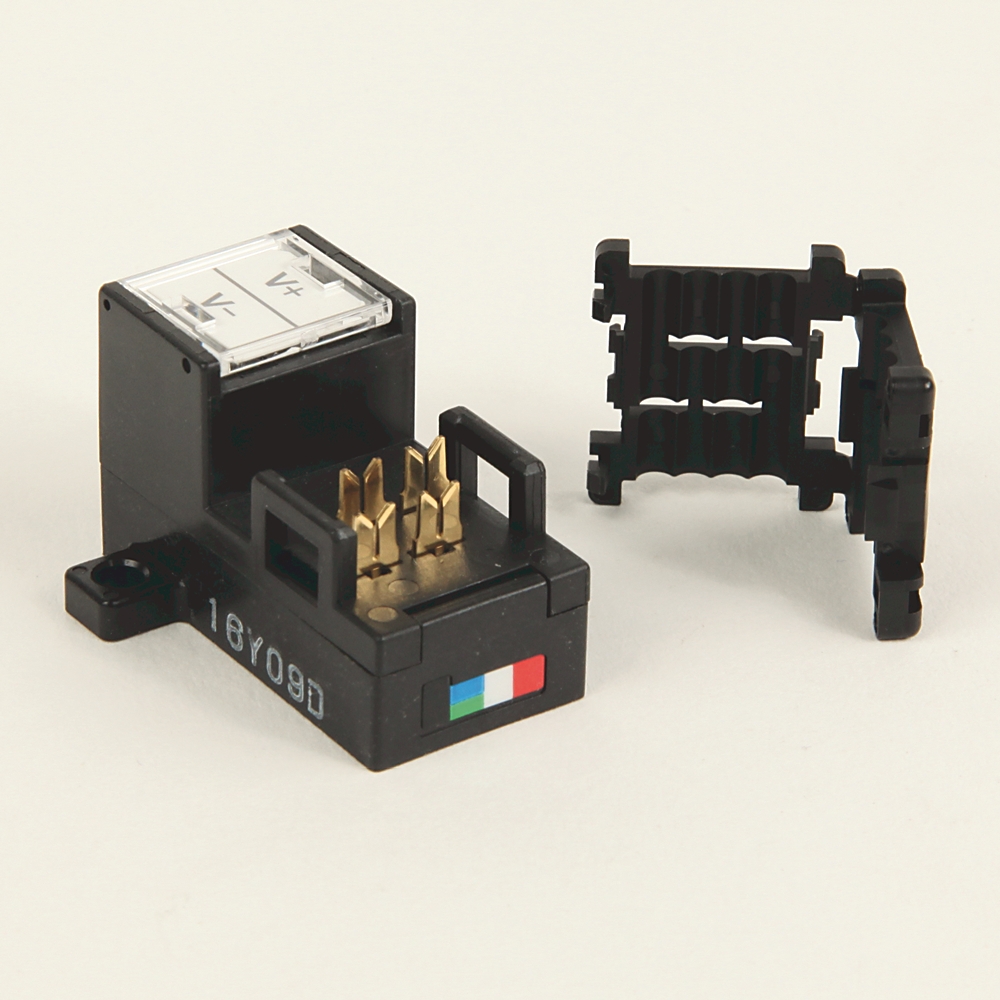

Allen-Bradley Allen-Bradley 1485P Media Insulation TRM Block 1485P-K1TLR4

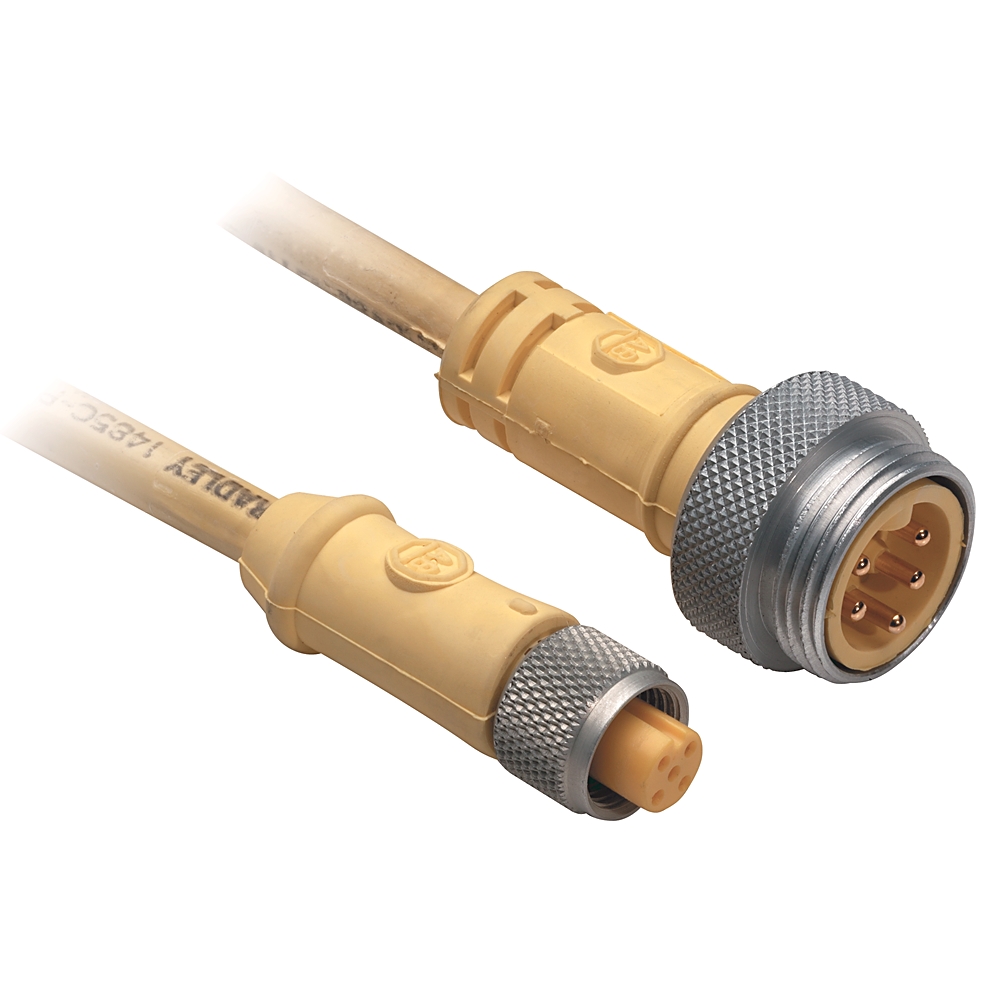

Allen-Bradley Allen-Bradley DeviceNet Physical Media 1485R-P10F5-C
