Allen-Bradley A Terminal Base 1444-TB-A
Allen-Bradley 1444-TB-A - industrial components - Width: 103.5 mm mm; Height: 116 mm mm; Weight: 204.12 g.
Allen-Bradley 1444-TB-A is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Width: 103.5 mm mm and Height: 116 mm mm.
The specification set recorded for this part number covers Weight: 204.12 g; Operating Temperature: -25 °C; Relative Humidity: 5...95% noncondensing; Conformal Coating: All printed circuit boards are conformal coated in accordance with IPC-A-610C and in compliance with: IPC-CC-830 B, UL508; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Depth: 155.5 mm; Rail mounting possible: true; Shock: Operating: 15 G; Surrounding air temperature, max: 70 °C; Vibration: 2.0 G @ 10…500 Hz. The complete technical table is shown in the Specifications tab on this page.
| Auxiliary bus voltage range | 18...32V @ 8A maximum |
|---|---|
| Build America, Buy America | No |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Conformal Coating | All printed circuit boards are conformal coated in accordance with IPC-A-610C and in compliance with: IPC-CC-830 B, UL508 |
| Depth | 155.5 mm |
| DIN rail | 35 x 7.5 mm according to EN 50022, BS 5584 or DIN 46277-6 |
| Emissions | IEC 61000-6-4 |
| Enclosure type rating | None (open-style) |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Front built-in possible | true |
| Height | 116 mm mm |
| Input voltage at DC | 18 V |
| Input voltage range | North American: 18...32V, max 8 A, limited voltage source |
| Lifecycle Status | Active |
| Max. input current DC | 8 A |
| Module | 1444-DYN04-01RA |
| Nonoperating temperature | -40 °C |
| Number of slots | 1 |
| Operating Temperature | -25 °C |
| Rack-assembly possible | true |
| Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz |
| Rail mounting possible | true |
| Relative Humidity | 5...95% noncondensing |
| Repair Options Available | No |
| Shock | Operating: 15 G |
| Surrounding air temperature, max | 70 °C |
| Type of output voltage | DC |
| Type of voltage (input voltage) | DC |
| Vibration | 2.0 G @ 10…500 Hz |
| Wall mounting/direct mounting | true |
| Weight | 204.12 g |
| Width | 103.5 mm mm |
| With integrated power supply | false |
Frequently Asked Questions
How do I get pricing for 1444-TB-A?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1444-TB-A?
1444-TB-A is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1444-TB-A?
Key specifications include Auxiliary bus voltage range: 18...32V @ 8A maximum; Build America, Buy America: No; Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz; Conformal Coating: All printed circuit boards are conformal coated in accordance with IPC-A-610C and in compliance with: IPC-CC-830 B, UL508. The full specification table on this page lists every published attribute for this part.
How quickly can 1444-TB-A ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Expansion Relay Module 1444-RELX00-04RB
Allen-Bradley Allen-Bradley B Terminal Base 1444-TB-B

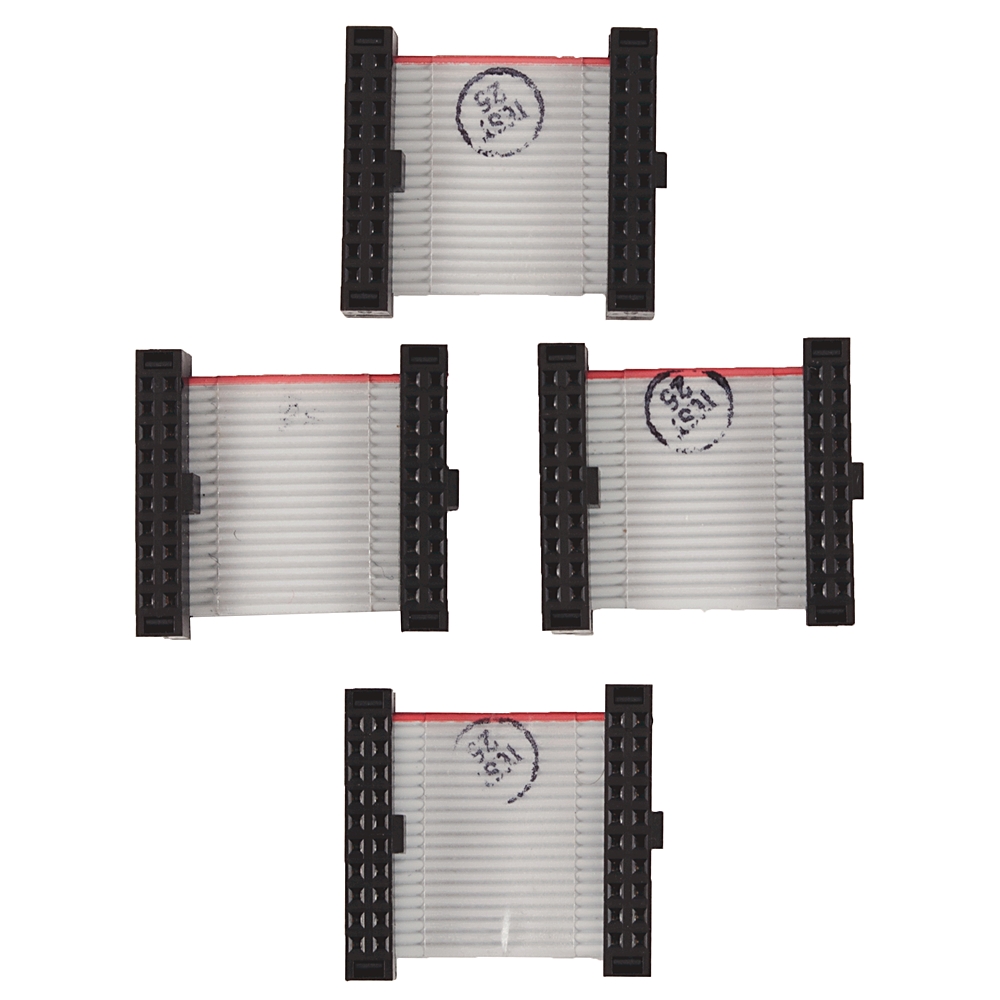

Allen-Bradley Allen-Bradley Local Bus Interconnect Cable (qty 4) 1444-LBIC-04
Allen-Bradley Allen-Bradley Screw Clamp Removable Connector Set 1444-TBA-RPC-SCW-01

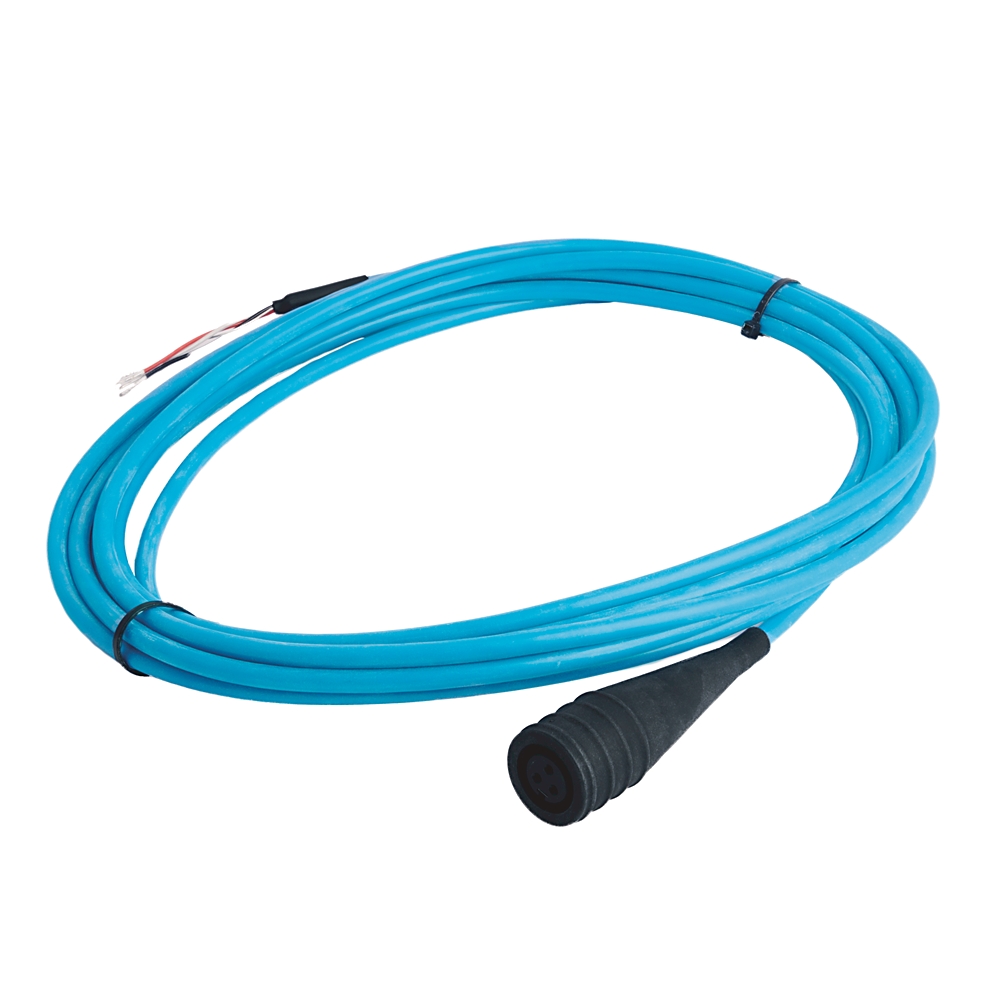

Allen-Bradley Allen-Bradley Twisted Pair 2 Conductor Accel. Cable 1443-CBL-MS2IBC-64S
