Allen-Bradley 250A J Frame Mtr Protection Ckt-Bkr 140MG-J8E-D15-SA-KA
Allen-Bradley 140MG-J8E-D15-SA-KA - industrial components - Width: 4.13 mm mm; Height: 6.3 mm mm; Weight: 5.5 lb.
The 140MG-J8E-D15-SA-KA from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Width: 4.13 mm mm and Height: 6.3 mm mm.
Published specifications for this part include Weight: 5.5 lb; Operating Temperature: -13 °F; Storage Temperature: -40 °F; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP20; Depth: 82.5 mm; Overload release current setting: 60 A; Type of electrical connection of main circuit: Screw-/spring clA connection; Device construction: Built-in device fixed built-in technique; Electrical life cycle: 8000 @ 415V AC. See the Specifications tab on this page for the full technical table.
| Adjustable rated motor current | I1 = 0.4...1 x In (60...150 A) |
|---|---|
| Ambient temperature without derating | 104 °F [40 °C] |
| Build America, Buy America | No |
| Control element | Toggle |
| Degree of protection (IP) | IP20 |
| Depth | 82.5 mm |
| Device construction | Built-in device fixed built-in technique |
| Electrical life cycle | 8000 @ 415V AC |
| Factory option | Shunt open release, 220...240V AC/220...250V DC |
| Frame Size | 250 A |
| Height | 6.3 mm mm |
| Instantaneous current | Adjustable from 6...13 x In (150 A maximum rated motor current) |
| Insulation voltage (Ui) | Rated 1000V per IEC |
| Interrupting rating | NEMA, UL 489, CSA C22.2 no. 5: 65kA @ 480V AC, 50/60 Hz |
| Interrupting rating/breaking capacity | High break |
| Lifecycle Status | Active |
| Mechanical life operations | 25000 /h |
| Number of poles | 3 |
| Operating Temperature | -13 °F |
| Overload release current setting | 60 A |
| Phase failure sensitive | true |
| Protection type | Thermal/magnetic- adjustable thermal/fixed magnetic TMD |
| Rated impulse voltage withstand (Uimp) | 8 kV |
| Rated motor current | 150 A |
| Rated operating voltage | 690 A |
| Rated permanent current Iu | 150 A |
| Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 100% @ 690V AC |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 70 kA |
| Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 70kA @ 500V DC, 3 poles in series |
| Repair Options Available | No |
| Storage Temperature | -40 °F |
| Switch off technique | Thermomagnetic |
| Trip Class | Class 3E, 5E, 10E, 20E (approx. 2...20 s) |
| Type of control element | Other |
| Type of electrical connection of main circuit | Screw-/spring clA connection |
| Unbalace detection (50 % of I1) | ON or OFF |
| Voltage for reverse-fed circuit breaker, max | 600V AC max. per UL/CSA, 600V AC max. per IEC |
| Weight | 5.5 lb |
| Width | 4.13 mm mm |
| Wire temperature rating | Al or Cu 75 °C |
| With integrated auxiliary switch | false |
| With integrated under voltage release | false |
| With thermal protection | true |
Frequently Asked Questions
How do I get pricing for 140MG-J8E-D15-SA-KA?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 140MG-J8E-D15-SA-KA?
140MG-J8E-D15-SA-KA is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 140MG-J8E-D15-SA-KA?
Key specifications include Adjustable rated motor current: I1 = 0.4...1 x In (60...150 A); Ambient temperature without derating: 104 °F [40 °C]; Build America, Buy America: No; Control element: Toggle. The full specification table on this page lists every published attribute for this part.
How quickly can 140MG-J8E-D15-SA-KA ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 250A J Frame Mtr Protection Ckt-Bkr 140MG-J8E-D15-KA
Allen-Bradley Allen-Bradley 250A J Frame Mtr Protection Ckt-Bkr 140MG-J8E-D15-SD-KA

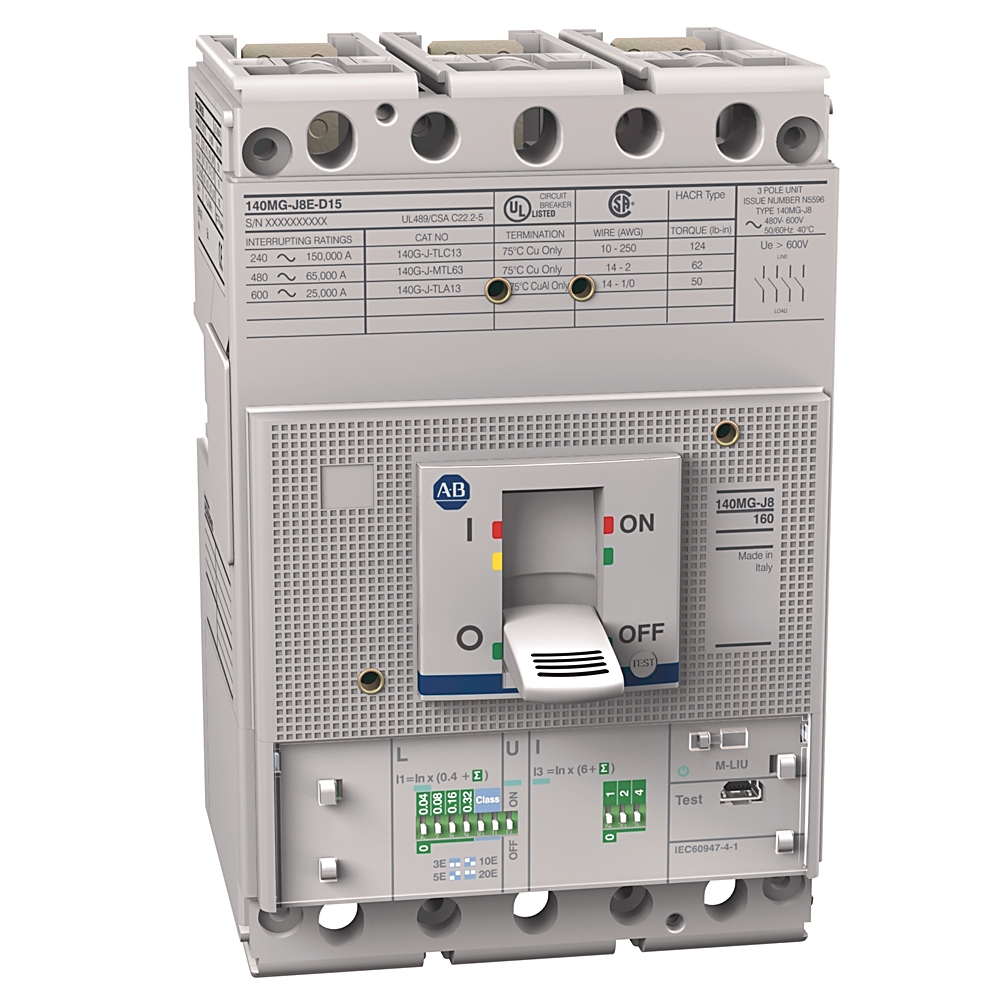

Allen-Bradley Allen-Bradley 250A J Frame Mtr Protection Ckt-Bkr 140MG-J8E-D15-FB

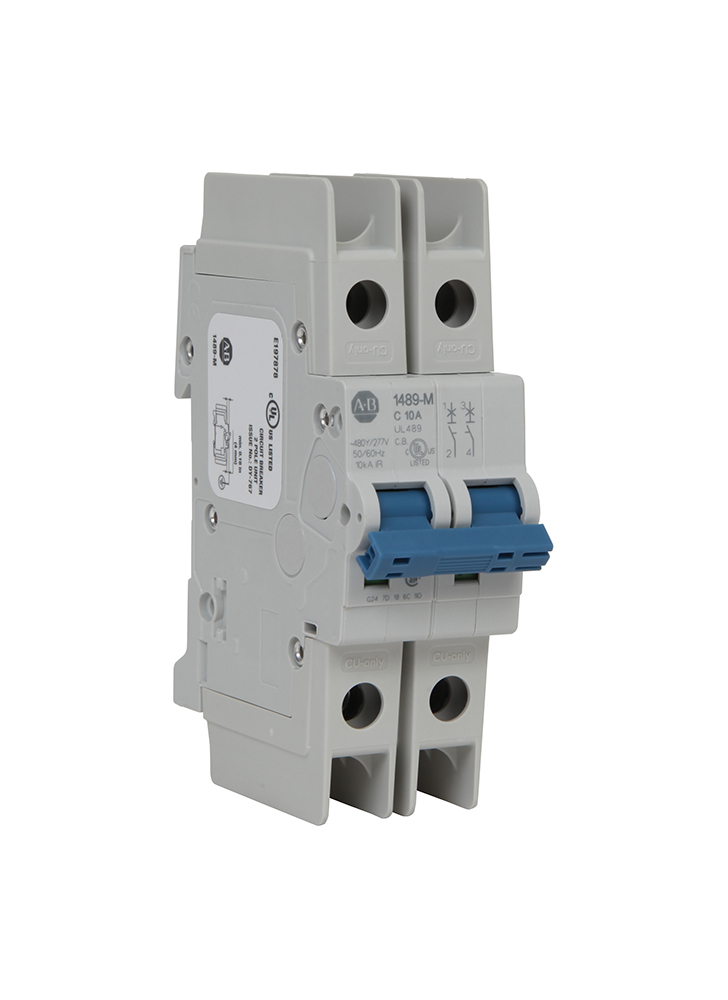

Allen-Bradley Allen-Bradley UL489 1.5 A Miniature Circuit Breaker 1489-M2D016
