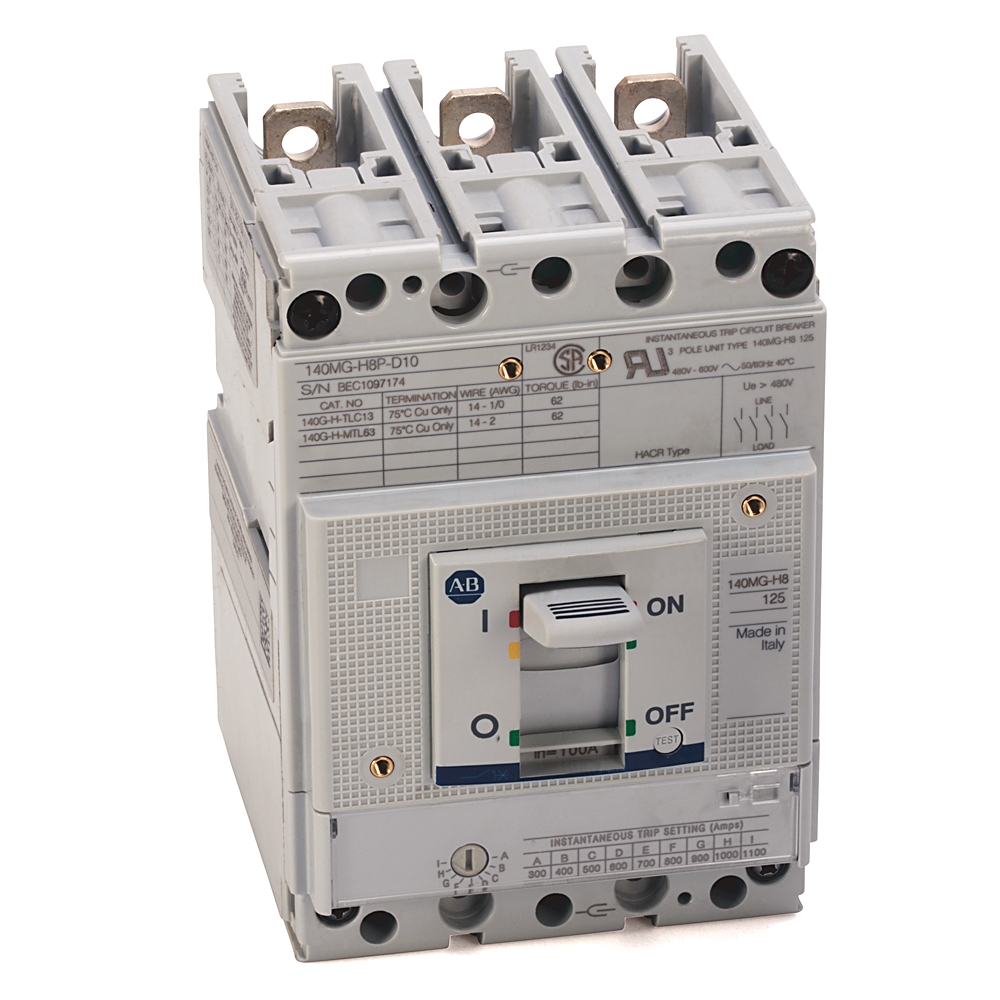

Allen-Bradley 125A H Frame Mtr Protection Ckt-Bkr 140MG-H8P-C70-SD-AA
Allen-Bradley 140MG-H8P-C70-SD-AA - industrial components - Width: 90 mm mm; Height: 130 mm mm; Operating Temperature: -13 °F.
This listing covers the Allen-Bradley 140MG-H8P-C70-SD-AA, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 90 mm mm and Height: 130 mm mm.
The specification set recorded for this part number covers Operating Temperature: -13 °F; Storage Temperature: -40 °F; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP20; Depth: 82.55 mm; Hp rating: 40Hp @ 575V, 3-phase; Type of electrical connection of main circuit: Screw connection; Device construction: Built-in device fixed built-in technique; Electrical life cycle: 8000 @ 415V AC; Mechanical life operations: 25000 /h. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature without derating | 104 °F |
|---|---|
| Build America, Buy America | No |
| Degree of protection (IP) | IP20 |
| Depth | 82.55 mm |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | true |
| Electrical life cycle | 8000 @ 415V AC |
| Factory option | Shunt open release, 110...120V AC/DC |
| Frame Size | 125 A |
| Height | 130 mm mm |
| Hp rating | 40Hp @ 575V, 3-phase |
| Instantaneous trip circuit breaker (magnetic only) SCCR, max | 65kA @ 480V AC per NEMA/UL-489/CSA for combination controller rating |
| Instantaneous trip setting | 3 to 125 A |
| Insulation voltage (Ui) | Rated 1000V per IEC |
| Interrupting rating/breaking capacity | 35...65kA @ 480V |
| KW rating, max | 55 kW @ 690V, 3-phase, AC-3 |
| Lifecycle Status | Active |
| Magnetic trip current | Cam setting I: 770 A |
| Mechanical life operations | 25000 /h |
| Motor drive integrated | false |
| Motor drive optional | true |
| Number of auxiliary contacts as change-over contact | 1 |
| Number of poles | 3 |
| Operating Temperature | -13 °F |
| Position of connection for main current circuit | Front side |
| Protection type | Adjustable magnetic only (less than 13 x In) |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated permanent current Iu | 70 A |
| Rated service short-circuit breaking capacity (Ics) | 100% of Icu @ 690V AC per IEC 60947-2/GB 14048.2 |
| Rated service short-circuit breaking capacity for Type D combination (Ics) | 100% of Icu @ 690V AC per IEC 60947-2/GB 14048.2 |
| Rated ultimate short-circuit breaking capacity (Icu) | 65kA @ 220...230V AC per IEC 60947-2/GB 14048.2 |
| Rated ultimate short-circuit breaking capacity for Type D combination (Icu) | 65kA @ 440V AC per IEC 60947-2/GB 14048.2 |
| Repair Options Available | No |
| Storage Temperature | -40 °F |
| Type of control element | Toggle |
| Type of electrical connection of main circuit | Screw connection |
| Watt loss | 16.5 W |
| Weight, approx | 2.6 lb |
| Width | 90 mm mm |
| Wire temperature rating | Al or Cu 75 °C |
| With integrated under voltage release | false |
| With switched-off indicator | false |
Frequently Asked Questions
How do I get pricing for 140MG-H8P-C70-SD-AA?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 140MG-H8P-C70-SD-AA?
140MG-H8P-C70-SD-AA is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 140MG-H8P-C70-SD-AA?
Key specifications include Ambient temperature without derating: 104 °F; Build America, Buy America: No; Degree of protection (IP): IP20; Depth: 82.55 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 140MG-H8P-C70-SD-AA ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
