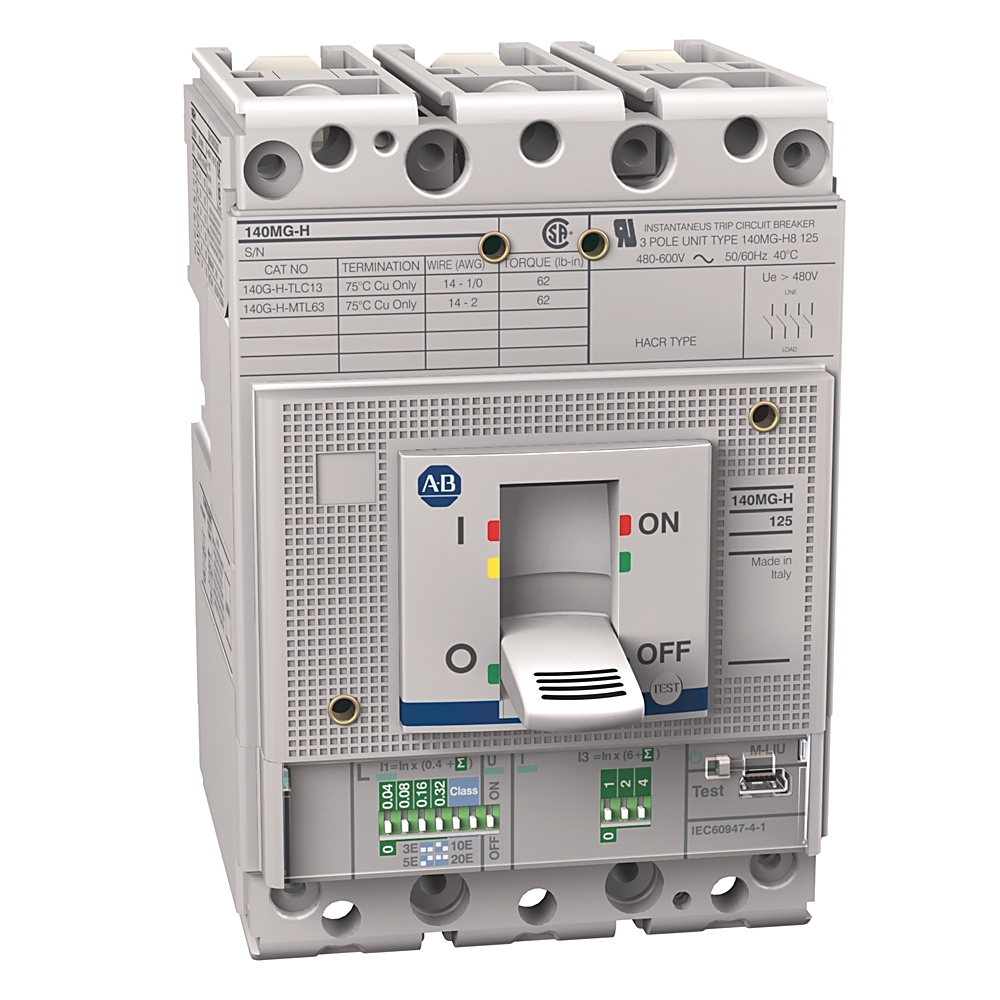

Allen-Bradley 125A H Frame Mtr Protection Ckt-Bkr 140MG-H8E-C60-KJ
Allen-Bradley 140MG-H8E-C60-KJ - industrial components - Width: 90 mm mm; Height: 130 mm mm; Operating Temperature: -13 °F.
The 140MG-H8E-C60-KJ from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Width: 90 mm mm and Height: 130 mm mm.
The specification set recorded for this part number covers Operating Temperature: -13 °F; Storage Temperature: -40 °F; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP20; Depth: 82.5 mm; Type of electrical connection of main circuit: Screw connection; Device construction: Built-in device fixed built-in technique; Electrical life cycle: 8000 @ 415V AC; Mechanical life operations: 25000 /h; Number of poles: 3. See the Specifications tab on this page for the full technical table.
| Adjustable rated motor current | I1 = 0.4...1 x In (24...60 A) |
|---|---|
| Ambient temperature without derating | 104 °F [40 °C] |
| Build America, Buy America | No |
| Control element | Toggle |
| Degree of protection (IP) | IP20 |
| Depth | 82.5 mm |
| Device construction | Built-in device fixed built-in technique |
| Electrical life cycle | 8000 @ 415V AC |
| Factory option | 1 NO/NC auxiliary, 24V AC/DC |
| Frame Size | 125 A |
| Height | 130 mm mm |
| Instantaneous current | Adjustable from 6...13 x In |
| Insulation voltage (Ui) | Rated 1000V per IEC |
| Interrupting rating | 65kA @ 480V AC, 50/60 Hz per NEMA, UL 489/CSA C22.2, No. 5 |
| Interrupting rating/breaking capacity | High break |
| Lifecycle Status | Active |
| Mechanical life operations | 25000 /h |
| Number of poles | 3 |
| Operating Temperature | -13 °F |
| Phase failure sensitive | true |
| Protection type | Thermal/magnetic- adjustable thermal/fixed magnetic TMD |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated motor current, max (In) | 60 A |
| Rated operating voltage | 220 A |
| Rated permanent current Iu | 60 A |
| Rated service short-circuit breaking capacity (Ics) | 100% of Icu @ 690V AC @ 50/60Hz per IEC 60947-2 |
| Rated ultimate short-circuit breaking capacity (Icu) | 70kA @ 500V DC- 3 poles in series per IEC 60947-2 |
| Repair Options Available | No |
| Storage Temperature | -40 °F |
| Switch off technique | Thermomagnetic |
| Trip Class | Class 3E, 5E, 10E, 20E (approx. 2...20 s) |
| Type of control element | Other |
| Type of electrical connection of main circuit | Screw connection |
| Unbalace detection | 50% of I1, ON or OFF |
| Voltage for reverse-fed circuit breaker, max | 480V AC per UL/CSA |
| Weight, approx | 2.6 lb |
| Width | 90 mm mm |
| Wire temperature rating | Cu 75 °C |
| With integrated auxiliary switch | false |
| With integrated under voltage release | false |
| With thermal protection | true |
