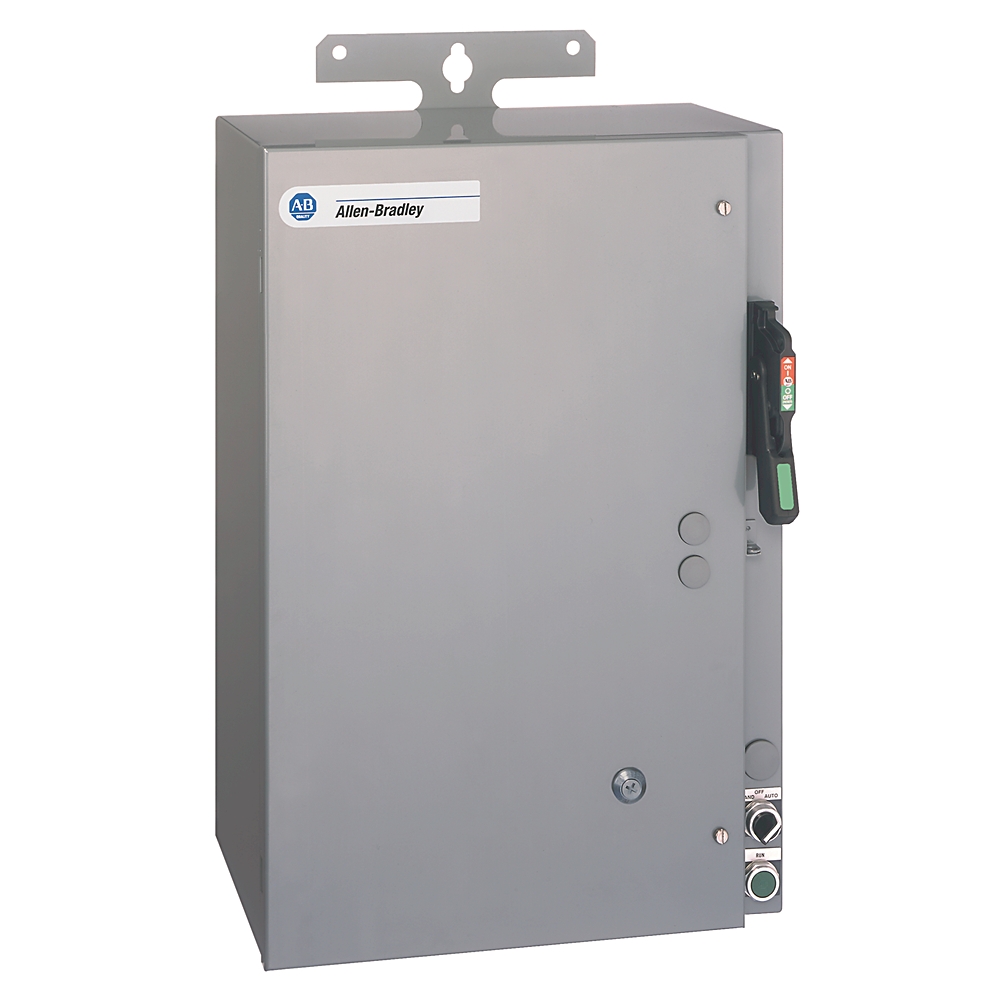

Allen-Bradley NEMA Extra Space Pump Panel Ckt-bkr 1233X-BNBD-38
Allen-Bradley 1233X-BNBD-38 - industrial components - Width: 20.5 mm mm; Height: 30 mm mm; Horsepower: 3 Hp (motor protection) HP.
The Allen-Bradley 1233X-BNBD-38 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 20.5 mm mm and Height: 30 mm mm.
The specification set recorded for this part number covers Horsepower: 3 Hp (motor protection) HP; Weight: 90 lb; Operating Temperature: -25 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: NEMA 3R rainproof; Degree of protection (NEMA): 3R; Depth: 8.72 mm; External reset possible: true; Overload relay: Eutectic alloy overload relay; Rated control supply voltage at AC 50 Hz: 120 V. The complete technical table is shown in the Specifications tab on this page.
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver |
| Available short circuit amperes RMS symmetrical | 65000 A |
| Build America, Buy America | No |
| Circuit closing inrush current peak including offset, max | 288 A |
| Circuit-Breaker Type | 80 A (ftder protection), instant trip |
| Continuous current rating | 27 A |
| Control Voltage | 120V 60 Hz |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 3R |
| Depth | 8.72 mm |
| Disconnect Type | No |
| Enclosure Type | NEMA 3R rainproof |
| External reset possible | true |
| Height | 30 mm mm |
| Horsepower | 3 Hp (motor protection) HP |
| Lifecycle Status | Active |
| Load voltage | 460V |
| Material housing | Steel |
| Mechanical life operations | 1.0E7 |
| NEMA size | Size 1 |
| Number of auxiliary contacts, max | 8 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 14 ms |
| Operating time, pick-up | 22 ms |
| Overload relay | Eutectic alloy overload relay |
| Power contact material | Silver alloy |
| Rated control supply voltage at AC 50 Hz | 120 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Repair Options Available | No |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Type of power terminal | Saddle or wire clA |
| Voltage for starter with circuit breaker, max | 480 V |
| Voltage type for actuating | AC |
| Weight | 90 lb |
| Width | 20.5 mm mm |
| Wire size | For power terminals: 14...8 AWG |
| With short-circuit release | true |
| With transformer | false |
