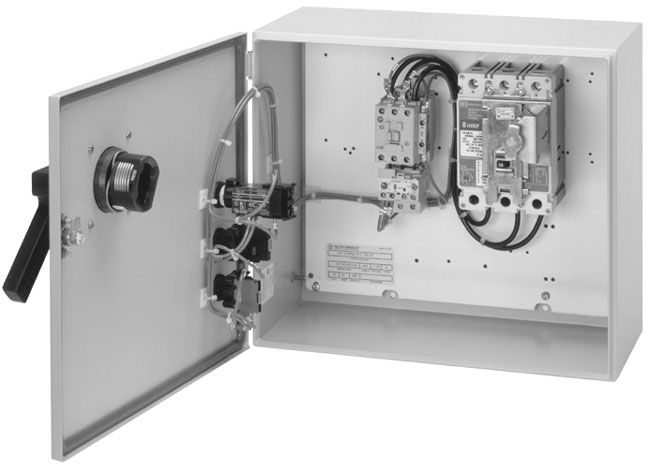

Allen-Bradley Circuit-Breaker Combination Starter 113-C60FAE1G-43-1-4R
Allen-Bradley 113-C60FAE1G-43-1-4R - industrial components - Width: 16 mm mm; Height: 24 mm mm; Lifecycle Status: Active.
The Allen-Bradley 113-C60FAE1G-43-1-4R is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 16 mm mm and Height: 24 mm mm.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: Type 3/4/12 - IP66 (metal); Degree of protection (IP): IP66; Degree of protection (NEMA): 12; Depth: 8.81 mm; External reset possible: false; Factory installed models: START-STOP push button; Hp rating: 20Hp @ 230V (AC3, AC4), 3-phase, 60 Hz; Number of indicator lights: 1; Overload relay: E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 18...90 A. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 12 |
| Depth | 8.81 mm |
| Enclosure Type | Type 3/4/12 - IP66 (metal) |
| External reset possible | false |
| Factory installed models | START-STOP push button |
| Height | 24 mm mm |
| Hp rating | 20Hp @ 230V (AC3, AC4), 3-phase, 60 Hz |
| Lifecycle Status | Active |
| Number of indicator lights | 1 |
| Overload relay | E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 18...90 A |
| Overload release current setting | 18 A |
| Rated control supply voltage at AC 50 Hz | 240 V |
| Rated control supply voltage at AC 60 Hz | 240 V |
| Rated operation current Ie | 60 A |
| Release class | Adjustable |
| Repair Options Available | No |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width | 16 mm mm |
| With fuse | false |
| With short-circuit release | true |
| With transformer | false |
Frequently Asked Questions
How do I get pricing for 113-C60FAE1G-43-1-4R?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 113-C60FAE1G-43-1-4R?
113-C60FAE1G-43-1-4R is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 113-C60FAE1G-43-1-4R?
Key specifications include Build America, Buy America: No; Coordination class according to IEC 60947-4-3: Class 2; Degree of protection (IP): IP66; Degree of protection (NEMA): 12. The full specification table on this page lists every published attribute for this part.
How quickly can 113-C60FAE1G-43-1-4R ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
