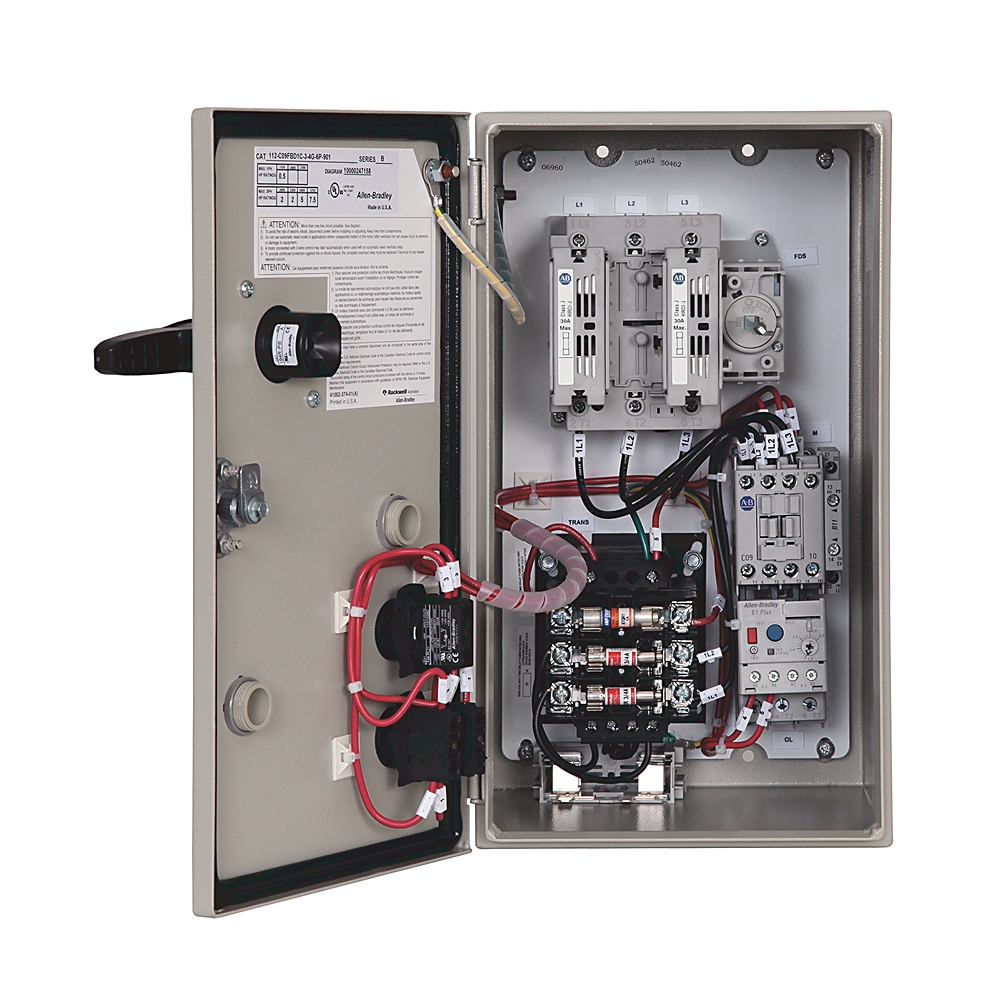

Allen-Bradley Fusible Disconnect Combination Starter 112-C09ABE1D-1-4R-6P
Allen-Bradley 112-C09ABE1D-1-4R-6P - industrial components - Width: 7.87 mm mm; Height: 13.78 mm mm; Lifecycle Status: Active.
Allen-Bradley 112-C09ABE1D-1-4R-6P is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Width: 7.87 mm mm and Height: 13.78 mm mm.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP42; Degree of protection (NEMA): 1; Depth: 7.87 mm; External reset possible: false; Factory installed models: START-STOP push button; Hp rating: 5Hp @ 460V (AC3, AC4), 3-phase, 60 Hz; KW rating: 4 kW @ 415V (AC3, AC4), 3-phase, 50 Hz; Number of indicator lights: 1; Overload relay: E1 plus electronic 3-phase overload relay, manual/auto reset, class 10, 15, 20, 30, full load current adjustment range 3.2...16 A. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Degree of protection (IP) | IP42 |
| Degree of protection (NEMA) | 1 |
| Depth | 7.87 mm |
| Disconnect switch | Standard fusing |
| Enclosure type rating | Type 1 - IP42 (metal) |
| External reset possible | false |
| Factory installed models | START-STOP push button |
| Fuse clip rating | 30 A maximum, Class CC |
| Height | 13.78 mm mm |
| Hp rating | 5Hp @ 460V (AC3, AC4), 3-phase, 60 Hz |
| KW rating | 4 kW @ 415V (AC3, AC4), 3-phase, 50 Hz |
| Lifecycle Status | Active |
| Number of indicator lights | 1 |
| Overload relay | E1 plus electronic 3-phase overload relay, manual/auto reset, class 10, 15, 20, 30, full load current adjustment range 3.2...16 A |
| Overload release current setting | 3.2 A |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated operation current Ie | 9 A |
| Release class | Adjustable |
| Repair Options Available | No |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width | 7.87 mm mm |
| With fuse | true |
| With short-circuit release | true |
| With transformer | true |
Frequently Asked Questions
How do I get pricing for 112-C09ABE1D-1-4R-6P?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 112-C09ABE1D-1-4R-6P?
112-C09ABE1D-1-4R-6P is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 112-C09ABE1D-1-4R-6P?
Key specifications include Build America, Buy America: No; Coordination class according to IEC 60947-4-3: Class 2; Degree of protection (IP): IP42; Degree of protection (NEMA): 1. The full specification table on this page lists every published attribute for this part.
How quickly can 112-C09ABE1D-1-4R-6P ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
