Allen-Bradley IEC Enclosed Starter 109-C16FLE1D-7
Allen-Bradley 109-C16FLE1D-7 - industrial components - Width: 7.87 mm mm; Height: 11.81 mm mm; Lifecycle Status: Active.
This listing covers the Allen-Bradley 109-C16FLE1D-7, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 7.87 mm mm and Height: 11.81 mm mm.
Key manufacturer data on file for this item includes Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: Type 3/4/12 - IP66 (Metal); Degree of protection (IP): IP66; Degree of protection (NEMA): 12; Depth: 6.31 mm; External reset possible: true; Factory installed models: External reset; Hp rating: 5Hp @ 230V, (AC3, AC4), 3-phase, 60 Hz; KW rating: 7.5 kW @ 690V (AC3, AC4), 3-phase, 50 Hz; Overload relay: E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 3.2...16 A. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 12 |
| Depth | 6.31 mm |
| Enclosure Type | Type 3/4/12 - IP66 (Metal) |
| External reset possible | true |
| Factory installed models | External reset |
| Height | 11.81 mm mm |
| Hp rating | 5Hp @ 230V, (AC3, AC4), 3-phase, 60 Hz |
| KW rating | 7.5 kW @ 690V (AC3, AC4), 3-phase, 50 Hz |
| Lifecycle Status | Active |
| Overload relay | E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 3.2...16 A |
| Overload release current setting | 3.2 A |
| Rated control supply voltage at AC 60 Hz | 208 V |
| Rated operation current Ie | 16 A |
| Release class | Adjustable |
| Repair Options Available | No |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width | 7.87 mm mm |
| With fuse | false |
| With short-circuit release | false |
| With transformer | false |
Frequently Asked Questions
How do I get pricing for 109-C16FLE1D-7?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 109-C16FLE1D-7?
109-C16FLE1D-7 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 109-C16FLE1D-7?
Key specifications include Build America, Buy America: No; Degree of protection (IP): IP66; Degree of protection (NEMA): 12; Depth: 6.31 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 109-C16FLE1D-7 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley IEC Enclosed Starter 109-C16NDJOV
Allen-Bradley Allen-Bradley IEC 190 A Safety Contactor 100S-E190KD12C
Allen-Bradley Allen-Bradley IEC Enclosed Starter 109-C23AA-A2A-1-4G-6P-901

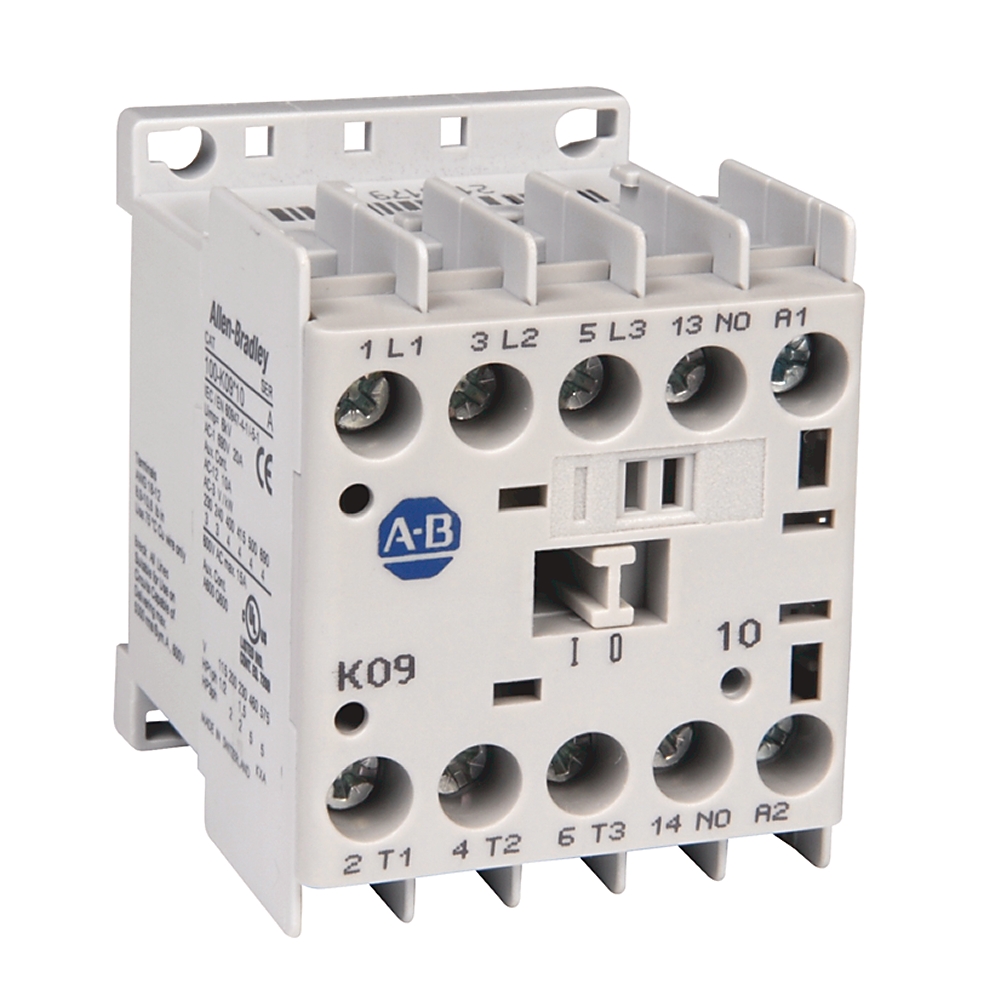

Allen-Bradley Allen-Bradley IEC 12 A Miniature Contactor 100-K12VC10
