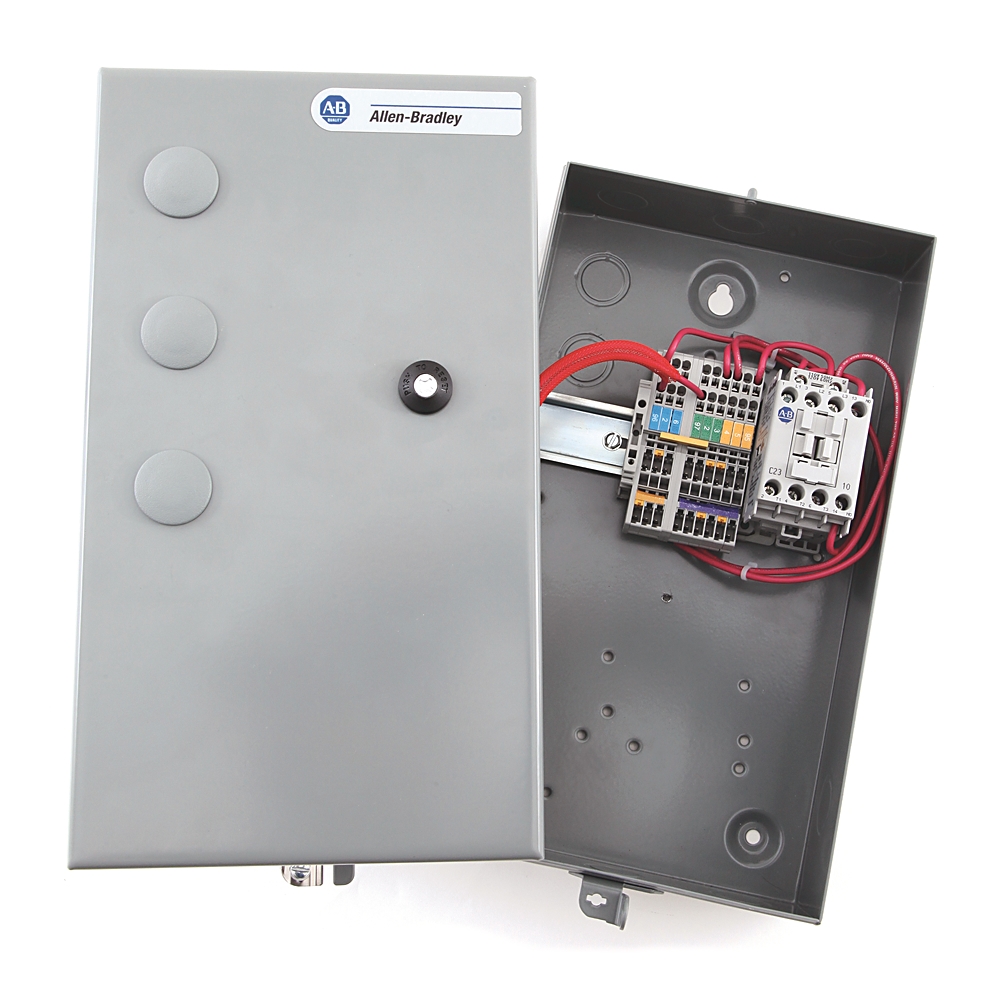

Allen-Bradley IEC Enclosed Starter 109-C16AB-A2E-3-4R-6P
Allen-Bradley 109-C16AB-A2E-3-4R-6P - industrial components - Width: 7.35 mm mm; Height: 12.91 mm mm; Lifecycle Status: Active.
Allen-Bradley 109-C16AB-A2E-3-4R-6P is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Width: 7.35 mm mm and Height: 12.91 mm mm.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: Type 1 - IP42 (Metal); Sub Brand: IEC Enclosed; Degree of protection (IP): IP42; Degree of protection (NEMA): 1; Depth: 5.52 mm; External reset possible: false; Factory installed models: Red pilot light (incandescent); Hp rating: 10Hp @ 460V (AC3, AC4), 3-phase, 60 Hz; KW rating: 7.5 kW @ 500V (AC3, AC4), 3-phase, 50 Hz. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Degree of protection (IP) | IP42 |
| Degree of protection (NEMA) | 1 |
| Depth | 5.52 mm |
| Enclosure Type | Type 1 - IP42 (Metal) |
| External reset possible | false |
| Factory installed models | Red pilot light (incandescent) |
| Height | 12.91 mm mm |
| Hp rating | 10Hp @ 460V (AC3, AC4), 3-phase, 60 Hz |
| KW rating | 7.5 kW @ 500V (AC3, AC4), 3-phase, 50 Hz |
| Lifecycle Status | Active |
| Number of indicator lights | 1 |
| Overload relay | E1 plus electronic 3-phase overload relay, manual reset, Class 20, full load current adjustment range 1.6...5.0 A |
| Overload release current setting | 1.6 A |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated operation current Ie | 16 A |
| Release class | CLASS 20 |
| Repair Options Available | No |
| Sub Brand | IEC Enclosed |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width | 7.35 mm mm |
| With fuse | false |
| With short-circuit release | false |
| With transformer | true |
