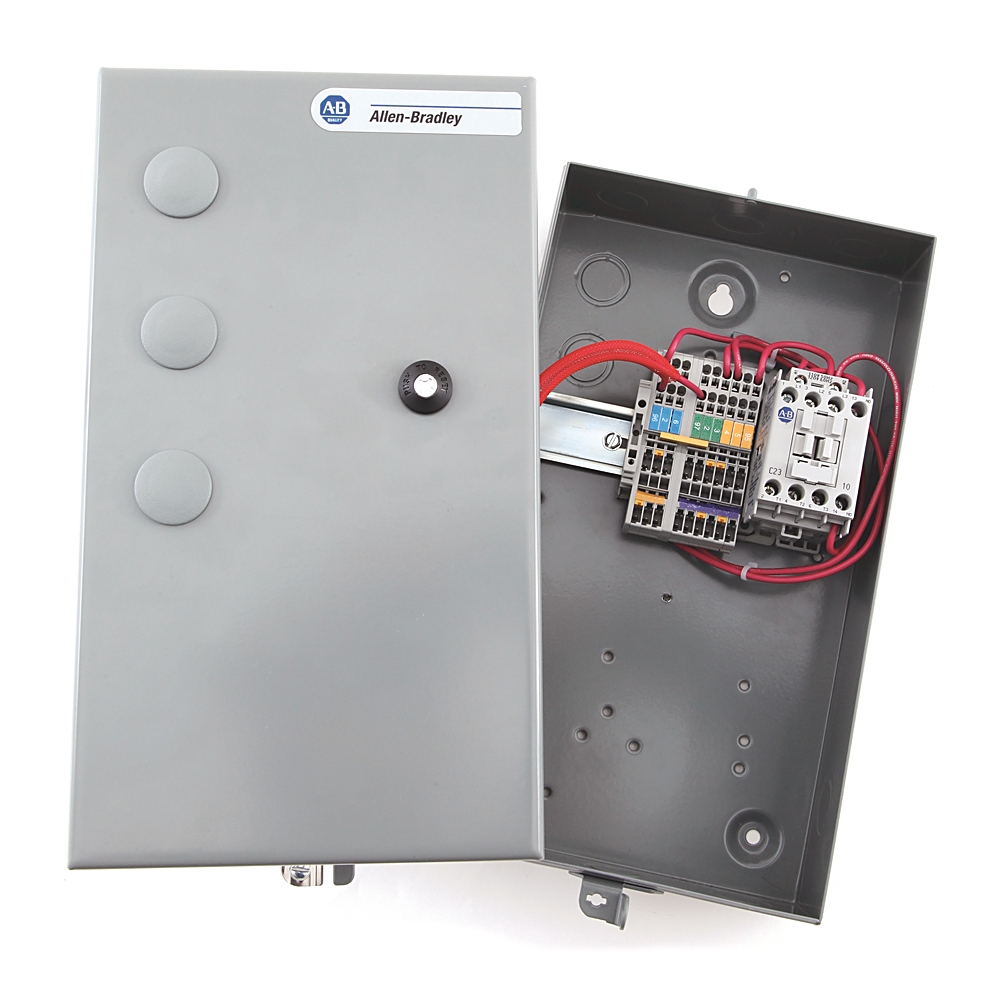

Allen-Bradley IEC Enclosed Starter 109-C09AC-OLR-3-4R-6P
Allen-Bradley 109-C09AC-OLR-3-4R-6P - industrial components - Width: 7.35 mm mm; Height: 12.91 mm mm; Lifecycle Status: Active.
This listing covers the Allen-Bradley 109-C09AC-OLR-3-4R-6P, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 7.35 mm mm and Height: 12.91 mm mm.
Key manufacturer data on file for this item includes Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Control Type: Transformer Control; Enclosure Type: Type 1 - IP42 (Metal); Sub Brand: IEC Enclosed; Degree of protection (IP): IP42; Degree of protection (NEMA): 1; Depth: 5.52 mm; External reset possible: false; Factory installed models: Red pilot light (incandescent); Hp rating: 7.5Hp @ 575V (AC3, AC4), 3-phase, 60 Hz. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Control Type | Transformer Control |
| Degree of protection (IP) | IP42 |
| Degree of protection (NEMA) | 1 |
| Depth | 5.52 mm |
| Enclosure Type | Type 1 - IP42 (Metal) |
| External reset possible | false |
| Factory installed models | Red pilot light (incandescent) |
| Height | 12.91 mm mm |
| Hp rating | 7.5Hp @ 575V (AC3, AC4), 3-phase, 60 Hz |
| KW rating | 4 kW @ 690V (AC3, AC4), 3-phase, 50 Hz |
| Lifecycle Status | Active |
| Number of indicator lights | 1 |
| Overload relay | Provision for overload relay |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated operation current Ie | 9 A |
| Repair Options Available | No |
| Sub Brand | IEC Enclosed |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width | 7.35 mm mm |
| With fuse | false |
| With short-circuit release | false |
| With transformer | true |
Frequently Asked Questions
How do I get pricing for 109-C09AC-OLR-3-4R-6P?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 109-C09AC-OLR-3-4R-6P?
109-C09AC-OLR-3-4R-6P is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 109-C09AC-OLR-3-4R-6P?
Key specifications include Build America, Buy America: No; Control Type: Transformer Control; Degree of protection (IP): IP42; Degree of protection (NEMA): 1. The full specification table on this page lists every published attribute for this part.
How quickly can 109-C09AC-OLR-3-4R-6P ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
