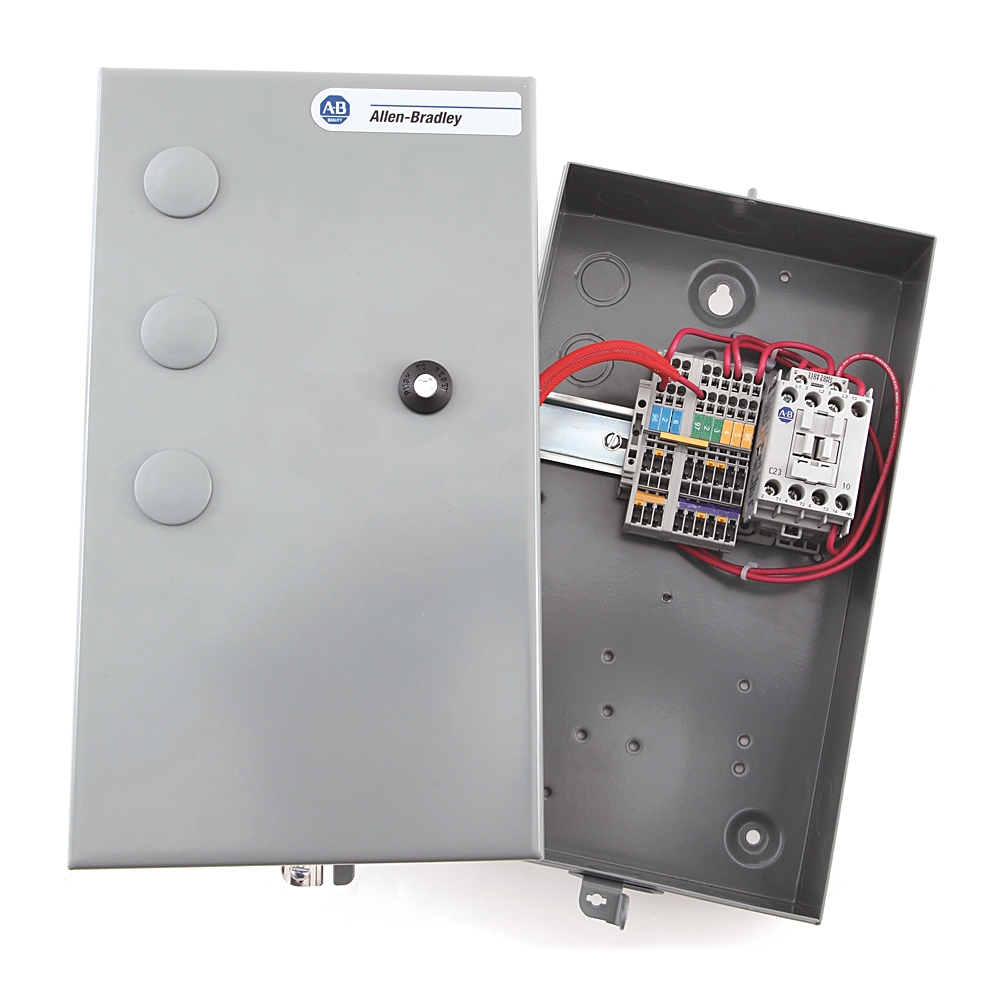

Allen-Bradley IEC Enclosed Reversing Starter 105-C12AD-A2F-1-4GW
Allen-Bradley 105-C12AD-A2F-1-4GW - industrial components - Width: 7.36 mm mm; Height: 12.91 mm mm; Lifecycle Status: Active.
This listing covers the Allen-Bradley 105-C12AD-A2F-1-4GW, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 7.36 mm mm and Height: 12.91 mm mm.
Published specifications for this part include Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: IP42/NEMA 1 Mtl; Degree of protection (IP): IP42; Degree of protection (NEMA): 1; Depth: 5.52 mm; Factory installed models: Pilot light (green - FORWARD, white - REVERSE); Number of indicator lights: 2; Overload relay: E1 plus electronic 3-phase overload relay, manual reset, Class 20, full load current adjustment range 3.7...12 A; Overload release current setting: 3.7 A; Rated control supply voltage at AC 50 Hz: 110 V. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Degree of protection (IP) | IP42 |
| Degree of protection (NEMA) | 1 |
| Depth | 5.52 mm |
| Enclosure Type | IP42/NEMA 1 Mtl |
| Enclosure type rating | Type 1 - IP42 (Metal) |
| Factory installed models | Pilot light (green - FORWARD, white - REVERSE) |
| Height | 12.91 mm mm |
| Hp rating, max | 7.5Hp @ 460V (AC3, AC4), 3-phase, 60 Hz |
| KW power | 5.5 kW @ 500V (AC3, AC4), 3-phase, 50 Hz |
| Lifecycle Status | Active |
| Number of indicator lights | 2 |
| Overload relay | E1 plus electronic 3-phase overload relay, manual reset, Class 20, full load current adjustment range 3.7...12 A |
| Overload release current setting | 3.7 A |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated operation current Ie | 12 A |
| Release class | CLASS 20 |
| Repair Options Available | No |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Reversing starter |
| Voltage type for actuating | AC |
| Width | 7.36 mm mm |
| With fuse | false |
| With short-circuit release | false |
| With transformer | false |
Frequently Asked Questions
How do I get pricing for 105-C12AD-A2F-1-4GW?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 105-C12AD-A2F-1-4GW?
105-C12AD-A2F-1-4GW is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 105-C12AD-A2F-1-4GW?
Key specifications include Build America, Buy America: No; Degree of protection (IP): IP42; Degree of protection (NEMA): 1; Depth: 5.52 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 105-C12AD-A2F-1-4GW ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
