Allen-Bradley IEC Enclosed Reversing Starter 105-C09FHE1C-1-6P
Allen-Bradley 105-C09FHE1C-1-6P - industrial components - Width: 7.87 mm mm; Height: 11.81 mm mm; Lifecycle Status: Active.
The 105-C09FHE1C-1-6P from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Width: 7.87 mm mm and Height: 11.81 mm mm.
Published specifications for this part include Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Control Type: Transformer Control; Sub Brand: IEC Enclosed; Degree of protection (IP): IP66; Degree of protection (NEMA): 12; Depth: 6.31 mm; Factory installed models: FORWARD-REVERSE-STOP push button; Overload relay: E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 1.0...5.0 A; Overload release current setting: 1 A; Rated control supply voltage at AC 50 Hz: 110 V. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Control Type | Transformer Control |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 12 |
| Depth | 6.31 mm |
| Enclosure type rating | Type 3/4/12 - IP66 (Metal) |
| Factory installed models | FORWARD-REVERSE-STOP push button |
| Height | 11.81 mm mm |
| Hp rating, max | 2Hp @ 200V (AC3, AC4), 3-phase, 60 Hz |
| KW power | 3 kW @ 230V (AC3, AC4), 3-phase, 50 Hz |
| Lifecycle Status | Active |
| Overload relay | E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 1.0...5.0 A |
| Overload release current setting | 1 A |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Rated operation current Ie | 9 A |
| Release class | Adjustable |
| Repair Options Available | No |
| Sub Brand | IEC Enclosed |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Reversing starter |
| Voltage type for actuating | AC |
| Width | 7.87 mm mm |
| With fuse | false |
| With short-circuit release | false |
| With transformer | true |
Frequently Asked Questions
How do I get pricing for 105-C09FHE1C-1-6P?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 105-C09FHE1C-1-6P?
105-C09FHE1C-1-6P is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 105-C09FHE1C-1-6P?
Key specifications include Build America, Buy America: No; Control Type: Transformer Control; Degree of protection (IP): IP66; Degree of protection (NEMA): 12. The full specification table on this page lists every published attribute for this part.
How quickly can 105-C09FHE1C-1-6P ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

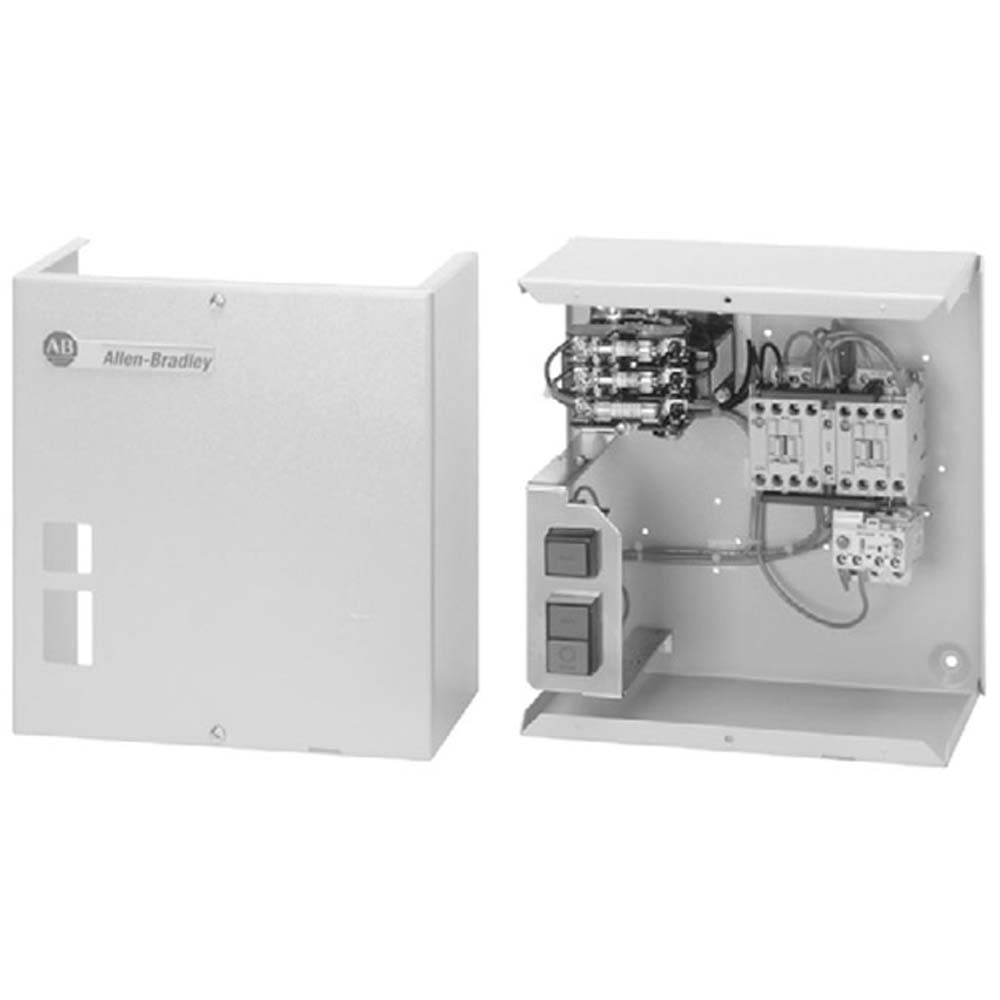

Allen-Bradley Allen-Bradley IEC Enclosed Reversing Starter 105-C09FDD1A-7
Allen-Bradley Allen-Bradley IEC Enclosed Reversing Starter 105-C09FNE1C
Allen-Bradley Allen-Bradley IEC Enclosed Reversing Starter 105-C09FBD1C-1-6P

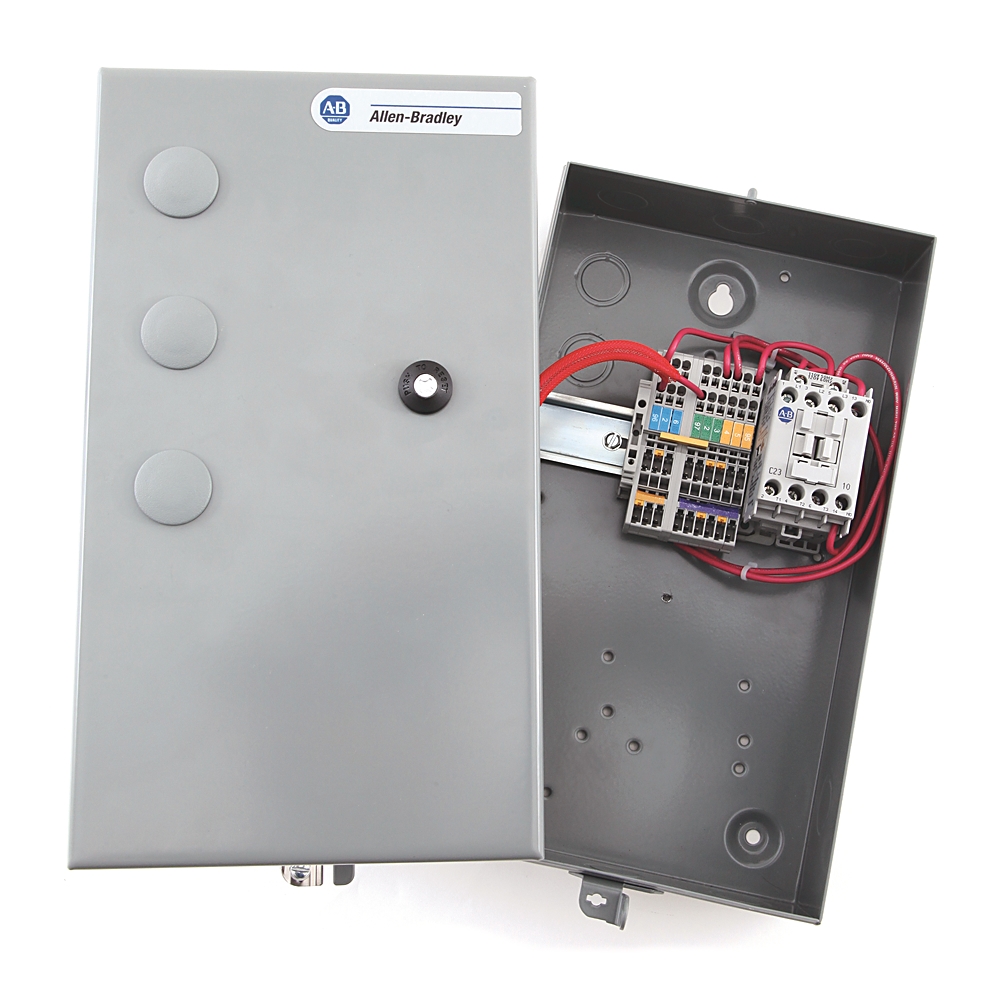

Allen-Bradley Allen-Bradley IEC Enclosed Reversing Starter 105-C12AA-OLR-1-4GW-6P
