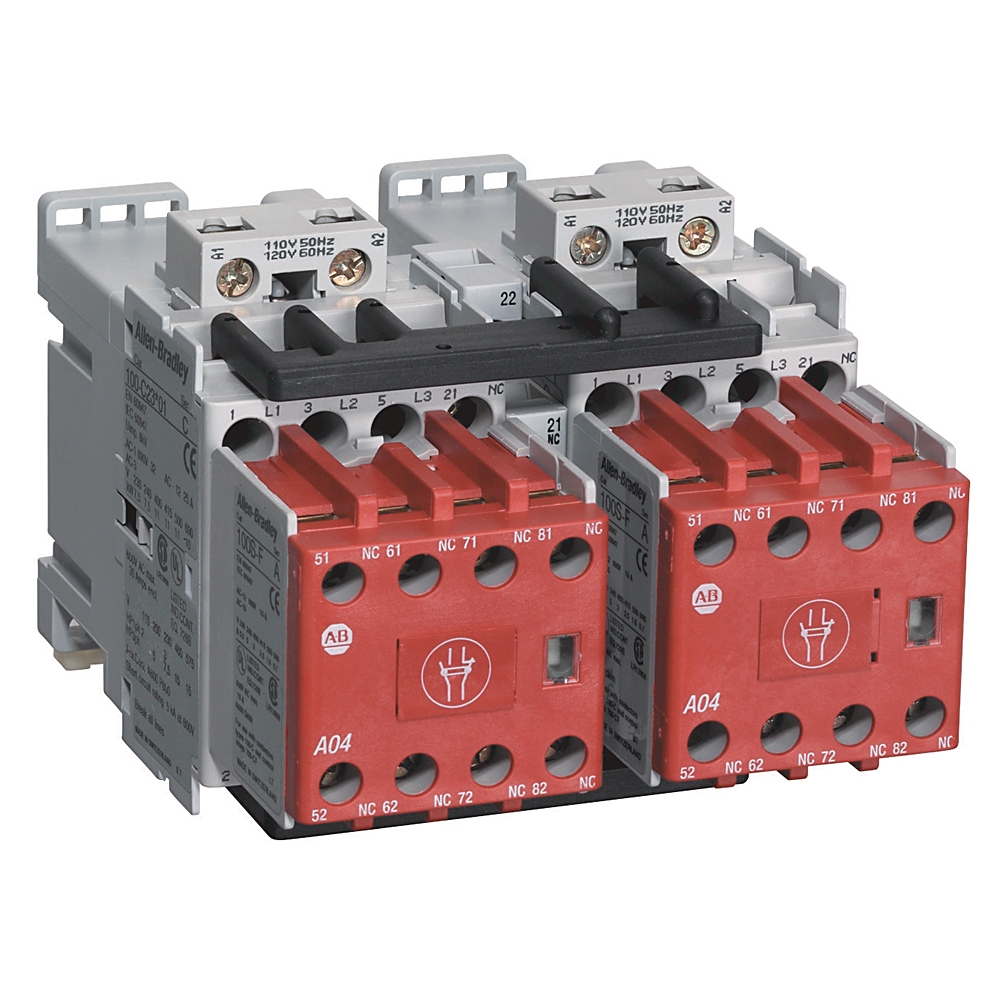

Allen-Bradley IEC 30 A SC Safety Contactor 104S-C30KP010C
Allen-Bradley 104S-C30KP010C - industrial components - Width: 98.8 mm mm; Height: 80.77 mm mm; Function: Reversing contactor.
This listing covers the Allen-Bradley 104S-C30KP010C, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 98.8 mm mm and Height: 80.77 mm mm.
The specification set recorded for this part number covers Function: Reversing contactor; Contacts: 3 main poles with NC mechanically linked or mirror ftdback contacts; Weight: 1.08 kg (2.39 lbs) reverse @ AC; Ambient temperature: Storage: -55...80 °C (-67...176 °F); Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Sub Brand: IEC; Depth: 135.47 mm; Rated control supply voltage at AC 50 Hz: 100 V; Rated control supply voltage at AC 60 Hz: 100 V; Type of electrical connection of main circuit: Screw connection. See the Specifications tab on this page for the full technical table.
| Altitude of installation site, max | 2000 m (NN), per IEC60947-1 |
|---|---|
| Ambient temperature | Storage: -55...80 °C (-67...176 °F) |
| Auxiliary contact type | Standard contact |
| Auxiliary contacts | 0 NO/5 NC |
| BS88 fuses current rating | Type 2 (per IEC 60947-4-1): 63A @ 415V, 65 kA available fault current |
| Build America, Buy America | No |
| Capacitance, max | 540 µF @ short-circuit current of 50 kA |
| Coil consumption pick-up (avg/peak) | 14/22 W @ DC (electronic-EA) |
| Coil consumption, hold-in | 3 W @ DC (electronic-EA) |
| Coil consumption, pick-up | 105VA @ 50 Hz, 60 Hz, 50/60 Hz |
| Coil insulation class | Class F per IEC 60085, UL Class 105 |
| Coil terminal conductor cross section | 1...4 mm² @ 2 conductor |
| Coil termination | Line side connection |
| Coil voltage | 100V 50/60 Hz |
| Conductor cross-section | Main contact, 2 conductor: 2.5...16 mm² |
| Contact configuration | 0 NO / 5 NC |
| Contacts | 3 main poles with NC mechanically linked or mirror ftdback contacts |
| Conventional coil type | true |
| Cross section per UL/CSA | 16 |
| Current (Ie), max | 30 A |
| Depth | 135.47 mm |
| DIN fuses (gG, gL) current rating | Type 2 (per IEC 60947-4-1): 80A @ 690V, 50 kA available fault current |
| Electronic-EI coil type | true |
| Features | Positively guided/mechanically linked auxiliary contacts, front-mounted auxiliary contacts: permanently fixed, protective cover to prevent manual ops, red contact housing for easy identification, incorporates IEC 947-5-1 “Mechanically Linked” symbol |
| Function | Reversing contactor |
| General purpose current (enclosed) | 55 A per UL/CSA |
| Height | 80.77 mm mm |
| Lifecycle Status | Discontinued |
| Lifespan | Mechanical DC control: 13000000 ops |
| Main current circuit resistance | 2 mohm |
| Maximum Load Current | 30 A |
| Operating limits, dropout | (0.3...0.6) x Us @ 50 Hz, 60 Hz, 50/60 Hz |
| Operating limits, pick-up | (0.85...1.1) x Us @ 50 Hz, 60 Hz, 50/60 Hz |
| Operating time | 15...30 ms @ AC, closing delay |
| Optional accessories | Side-mount auxiliary contacts, surge suppressors, electronic timers, mechanical interlocks |
| Options | No options selected |
| Power dissipation | 5.4 W @ 400V, AC-3, Ie |
| Protection against accidental contact | Finger-and back-of-hand proof per VDE0106, part 100 |
| Protection class auxiliary contact | IP2X |
| Rated coil frequency | AC 50/60 Hz, DC |
| Rated control supply voltage at AC 50 Hz | 100 V |
| Rated control supply voltage at AC 60 Hz | 100 V |
| Rated control supply voltage at DC | 0 V |
| Rated current (enclosed) | 28A @ 230V, 3-phase per UL/CSA |
| Rated filament current | 30A @ 230/240V, AC-5b |
| Rated impulse voltage withstand (Uimp) | 6 kV |
| Rated isolation voltage (Ui) | 690V @ IEC |
| Rated operational current (Ie) | 65A @ 690V, AC-1 (50 Hz), ambient temperature 60 °C |
| Rated operational current for contactor at elevator duty (UL/CSA) | 7.5Hp @ 230V |
| Rated operational power (Pe) | 78 kW @ 690V, AC-1 (50 Hz), ambient temperature 60 °C |
| Rated operational power for contactor at wye-delta | 30Hp @ 575V, 60 Hz |
| Rated power (enclosed) | 7.5Hp @ 200V, 3-phase per UL/CSA |
| Rated voltage (Ue) | 690V @ AC, 50/60 Hz |
| Rating for switching AC motors | 7.5Hp @ 200V, 60 Hz, 3-phase (AC-2, AC-3, AC-4) |
| Recommended torque | 9 in-lb |
| Repair Options Available | No |
| Short time withstand (Icw) | 300A @ 10s, 60 °C |
| Sub Brand | IEC |
| Switching frequency, max | 200 ops/h |
| Switching of 3-phase Capacitors | Single capacitor: 20 kVAR @ 690V, AC-6b, 50 Hz, 60 °C (inductance of leads between capacitors in parallel: minimum 6 µH) |
| Switching of DC loads | 3-pole in series: 45A @ 48/60V (shunt-wound motors starting, reverse current braking, reversing, stepping DC-3 at 60 °C) |
| Switching of hermetically sealed cooling compressor motors | 38A @ 500V, AC-8a (manual reset of overload release (50 Hz)) |
| Switching of lamps | Gas discharge lA, open: 40.5A @ 40°C, AC-5a |
| Switching of low inductive loads | 45A @ 440V, AC-7a per IEC 61095 (50 Hz) |
| Switching of motor load | 30A @ 400V, AC-7b per IEC 61095 (50 Hz) |
| Switching of power transformers | Apparent power: 8.3 kVA @ 240V, AC-6a @ 60Hz (n = 30) |
| Total power dissipation | DC control (electronic): 7.1 W @ 400V, AC-3, Ie |
| Type of electrical connection of main circuit | Screw connection |
| UL class J and CSA HRCI-J fuses rating | 50A @ 100kA available fault current per UL 508 and CSA 22.2 No. 14 |
| UL class K5 and RK5 fuses rating | 110A @ 600V, 5 kA available fault current per UL 508 and CSA 22.2 No. 14 |
| UL inverse-time circuit breaker | 50 A @ 600Y/347V @ 25kA available fault current per UL 508 and CSA 22.2 No. 14 |
| Voltage type for actuating | AC |
| Weight | 1.08 kg (2.39 lbs) reverse @ AC |
| Width | 98.8 mm mm |
Frequently Asked Questions
How do I get pricing for 104S-C30KP010C?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 104S-C30KP010C?
104S-C30KP010C is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 104S-C30KP010C?
Key specifications include Altitude of installation site, max: 2000 m (NN), per IEC60947-1; Ambient temperature: Storage: -55...80 °C (-67...176 °F); Auxiliary contact type: Standard contact; Auxiliary contacts: 0 NO/5 NC. The full specification table on this page lists every published attribute for this part.
How quickly can 104S-C30KP010C ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
