Allen-Bradley IEC 60 A Reversing Contactor 104-C60J22
Allen-Bradley 104-C60J22 - industrial components - Function: Reversing contactor; Weight: 3.22 kg (7.1 lbs) reverse @ DC; Ambient temperature: Storage: -55...80 (-67...176).
The 104-C60J22 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Function: Reversing contactor and Weight: 3.22 kg (7.1 lbs) reverse @ DC.
3 power poles with internal NO or NC auxiliary contact or 4 power poles (9...23 A), Optional front-or side mounted 1-2 or 4-pole external auxiliary contact block
Published specifications for this part include Ambient temperature: Storage: -55...80 (-67...176); Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Sub Brand: IEC; Rated control supply voltage at AC 60 Hz: 24 V; Type of electrical connection of main circuit: Screw connection; Voltage type for actuating: AC; Recommended torque: 9 in-lb; Switching frequency, max: 120 ops/h; Coil voltage: 24V 60 Hz; Rated isolation voltage (Ui): 690V @ IEC. See the Specifications tab on this page for the full technical table.
| Altitude of installation site, max | 2000 m (NN), per IEC60947-1 |
|---|---|
| Ambient temperature | Storage: -55...80 (-67...176) |
| Auxiliary contacts | 1 NO, 1 NC |
| BS88 fuses current rating | Type 2 (per IEC 60947-4-1): 100A @ 415V, 65 kA available fault current |
| Build America, Buy America | No |
| Capacitance, max | 800 µF @ short-circuit current of 50 kA |
| Coil consumption, hold-in | 4 W @ DC (conventional) |
| Coil consumption, pick-up | 235VA @ 50 Hz, 60 Hz, 50/60 Hz |
| Coil insulation class | Class F per IEC 60085, UL Class 105 |
| Coil terminal conductor cross section | 1…4 mm² @ 2 conductor |
| Coil termination | Line side connection |
| Coil voltage | 24V 60 Hz |
| Conductor cross-section | Main contacts, 2 conductor: 2.5…35 mm² |
| Contacts | 3 power poles with internal NO or NC auxiliary contact or 4 power poles (9...23 A), Optional front-or side mounted 1-2 or 4-pole external auxiliary contact block |
| Conventional coil type | true |
| Cross section per UL/CSA | 16 |
| Current (Ie), max | 97 A |
| DIN fuses (gG, gL) current rating | Type 2 (per IEC 60947-4-1): 160A @ 690V, 50 kA available fault current |
| Features | Panel mounting or mounting on 35 mm DIN rail, AC or DC coil control, Reversible coil terminals (line or load side), Common accessories, Made of environmentally friendly materials |
| Function | Reversing contactor |
| General purpose current (enclosed) | 90 A per UL/CSA |
| Lifecycle Status | Discontinued |
| Lifespan | Mechanical DC control: 6000000 ops |
| Main current circuit resistance | 0.9 mohm |
| Maximum Load Current | 60 A |
| Operating limits, dropout | (0.3...0.6) x Us @ 50 Hz, 60 Hz, 50/60 Hz |
| Operating limits, pick-up | (0.85...1.1) x Us @ 50 Hz, 60 Hz, 50/60 Hz |
| Operating time | 20…40 ms @ DC (conventional) opening delay |
| Optional accessories | Front or side-mount auxiliary contacts, Surge suppressors, Electronic or pneumatic timers, Mechanical interlocks, Mechanical latches |
| Optional overload relays | Electronic or bimetallic |
| Options | Empty |
| Power dissipation | 9.7 W @ 400V, AC-3, Ie |
| Protection against accidental contact | Finger-and back-of-hand proof per VDE0106, part 100 |
| Protection class auxiliary contact | IP2X |
| Rated coil frequency | AC 50/60 Hz, DC |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Rated current (enclosed) | 56A @ 115V, 1-phase per UL/CSA |
| Rated filament current | 60A @ 230/240V, AC-5b |
| Rated impulse voltage withstand (Uimp) | 6 kV |
| Rated isolation voltage (Ui) | 690V @ IEC |
| Rated operational current (Ie) | 95A @ 500V, Star-Delta starting (50 Hz) |
| Rated operational current for contactor at elevator duty (UL/CSA) | 42.0A @ 230V |
| Rated operational power (Pe) | 87 kW @ 500V, AC-1 active power load (50 Hz), ambient temperature 60 °C |
| Rated operational power for contactor at elevator duty (UL/CSA) | 40Hp @ 575V |
| Rated operational power for contactor at wye-delta | 75Hp @ 575V, 60 Hz |
| Rated power (enclosed) | 50Hp @ 575V, 3-phase per UL/CSA |
| Rated voltage (Ue) | 690V @ AC, 50/60 Hz |
| Rating for switching AC motors | 3-poles: 50Hp @ 575V (AC-2, AC-3, AC-4), 3-phase (60 Hz) |
| Recommended torque | 9 in-lb |
| Repair Options Available | No |
| Shock resistance | IEC 60068-2-27 |
| Short time withstand (Icw) | 700A @ 10s, 60 °C |
| Sub Brand | IEC |
| Switching frequency, max | 120 ops/h |
| Switching of 3-phase Capacitors | Single capacitor: 50 kVAR @ 690V, AC-6b 50 Hz, 40 °C (Inductance of leads between capacitors in parallel: min. 6 µH) |
| Switching of DC loads | 3-Poles in series: 90A @ 48/60V (Non-inductive or slightly inductive loads or resistance furnaces DC-1 at 60 °C) |
| Switching of hermetically sealed cooling compressor motors | 72A @ 500V, AC-8a (manual reset of overload release (50 Hz)) |
| Switching of lamps | Gas discharge lA, open: 81A @ 40°C (104 °F), AC-5a |
| Switching of power transformers | Apparent power: 93.7 kVA @ 660V, AC-6a 60 Hz (n = 30) |
| Total power dissipation | DC control (conventional): 13.7 W @ 400V, AC-3, Ie |
| Type of electrical connection of main circuit | Screw connection |
| UL class J and CSA HRCI-J fuses rating | 80A @ 100kA available fault current per UL 508 and CSA 22.2 No. 14 |
| UL class K5 and RK5 fuses rating | 200A @ 600V, 5 kA available fault current per UL 508 and CSA 22.2 No. 14 |
| UL inverse-time circuit breaker | 250A @ 600V, 5 kA available fault current per UL 508 and CSA 22.2 No. 14 |
| Vibration resistance | IEC 60068-2-6 |
| Voltage type for actuating | AC |
| Weight | 3.22 kg (7.1 lbs) reverse @ DC |
Frequently Asked Questions
How do I get pricing for 104-C60J22?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 104-C60J22?
104-C60J22 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 104-C60J22?
Key specifications include Altitude of installation site, max: 2000 m (NN), per IEC60947-1; Ambient temperature: Storage: -55...80 (-67...176); Auxiliary contacts: 1 NO, 1 NC; BS88 fuses current rating: Type 2 (per IEC 60947-4-1): 100A @ 415V, 65 kA available fault current. The full specification table on this page lists every published attribute for this part.
How quickly can 104-C60J22 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley IEC 72 A Reversing Contactor 104-C72J22
Allen-Bradley Allen-Bradley IEC 60 A Reversing Contactor 104-C60C22
Allen-Bradley Allen-Bradley IEC 85 A Reversing Contactor 104-C85F22

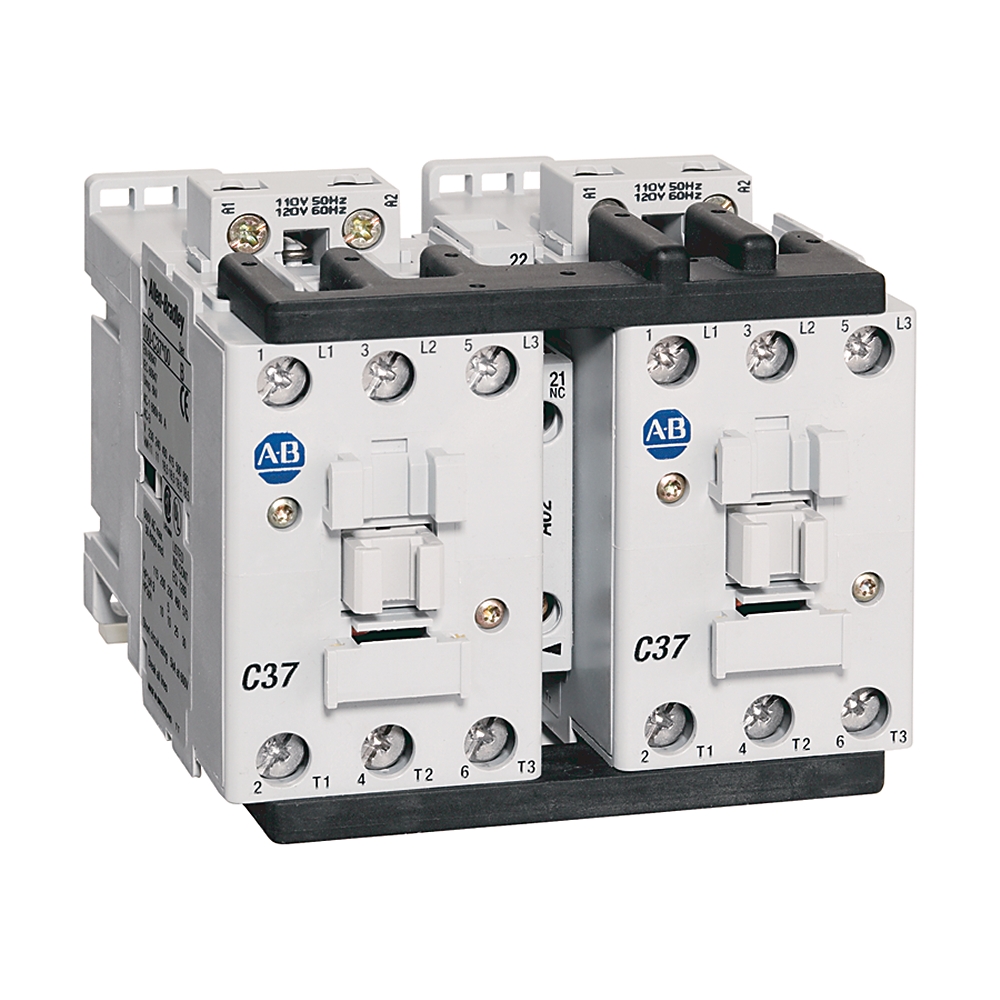

Allen-Bradley Allen-Bradley IEC 30 A Reversing Contactor 104-C30P22
