Allen-Bradley IEC Combination Starter 103T-FWKD2-TC45C-E1F-R
Allen-Bradley 103T-FWKD2-TC45C-E1F-R - industrial components - Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No.
The 103T-FWKD2-TC45C-E1F-R from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Lifecycle Status: Discontinued and Build America, Buy America: No.
The specification set recorded for this part number covers Repair Options Available: No; Factory installed models: Surge suppressor RC; Overload relay: E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 9.0...45 A; Overload release current setting: 9 A; Release class: Adjustable; Temperature compensated overload protection: true; Type of electrical connection for auxiliary- and control current circuit: Screw connection; Type of electrical connection of main circuit: Screw connection; Type of motor starter: Direct online starter (DOL); Voltage type for actuating: AC; With short-circuit release: true; Circuit breaker frame size: 140M-F8N high break plus (F Frame). See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Circuit breaker auxiliary and trip contacts | Internal circuit-breaker auxiliary contact 1 NO + 1 NC |
| Circuit breaker current adjustment range | 45 A instantaneous release circuit-breaker |
| Circuit breaker frame size | 140M-F8N high break plus (F Frame) |
| Coil voltage | 110V 50/60 Hz |
| Contactor auxiliary contacts | 1 NO |
| Contactor size | 100-C37 |
| Factory installed models | Surge suppressor RC |
| Fuse or circuit breaker per NEC, max | 600 A with 100-C/104-C contactors on standard bus bar modules |
| Hp ratings as a UL508 motor controller in group motor installations | 7.5...30Hp @ 575V AC, 60 Hz (with 100-C/104-C contactors on standard bus bar modules) |
| Hp ratings as a UL508 self-protected Type E combination motor controller | 7.5...30Hp @ 460V AC, 60 Hz (with 100-C/104-C contactors on standard bus bar modules) |
| IEC kW ratings | 7.5 kW @ 230V AC @ 50Hz (with 100-C/104-C contactors on standard bus bar modules) |
| Lifecycle Status | Discontinued |
| Number of auxiliary contacts as normally open contact | 1 |
| Overload relay | E1 plus electronic 3-phase overload relay, manual/auto reset, Class 10, 15, 20, 30, full load current adjustment range 9.0...45 A |
| Overload release current setting | 9 A |
| Rail mounting possible | true |
| Release class | Adjustable |
| Repair Options Available | No |
| Short-circuit current as a IEC (Type 1 coordination), max | 65kA @ 400V AC, 50 Hz (with 100-C/104-C contactors on standard bus bar modules) |
| Short-circuit current as a IEC (Type 2 coordination), max | 65kA @ 400V AC, 50 Hz (with 100-C/104-C contactors on standard bus bar modules) |
| Short-circuit current as a UL508 motor controller in group motor installations (Type 1 coordination), max | 65kA @ 480V AC, 60 Hz (with 100-C/104-C contactors on standard bus bar modules) |
| Short-circuit current as a UL508 motor controller in group motor installations (Type 2 coordination), max | 65kA @ 480V AC, 60 Hz (with 100-C/104-C contactors on standard bus bar modules) |
| Short-circuit current as a UL508 self-protected Type E combination motor controller, max | 65 kA @ 480Y/277V AC @ 60Hz (with 100-C/104-C contactors on standard bus bar modules) |
| Side mount auxiliary and trip contacts | Without auxiliary and trip contacts |
| Style | 141A panel mounting system |
| Supporting protocol for DeviceNet | true |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for PROFIBUS | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| With short-circuit release | true |
Frequently Asked Questions
How do I get pricing for 103T-FWKD2-TC45C-E1F-R?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 103T-FWKD2-TC45C-E1F-R?
103T-FWKD2-TC45C-E1F-R is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 103T-FWKD2-TC45C-E1F-R?
Key specifications include Build America, Buy America: No; Circuit breaker auxiliary and trip contacts: Internal circuit-breaker auxiliary contact 1 NO + 1 NC; Circuit breaker current adjustment range: 45 A instantaneous release circuit-breaker; Circuit breaker frame size: 140M-F8N high break plus (F Frame). The full specification table on this page lists every published attribute for this part.
How quickly can 103T-FWKD2-TC45C-E1F-R ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

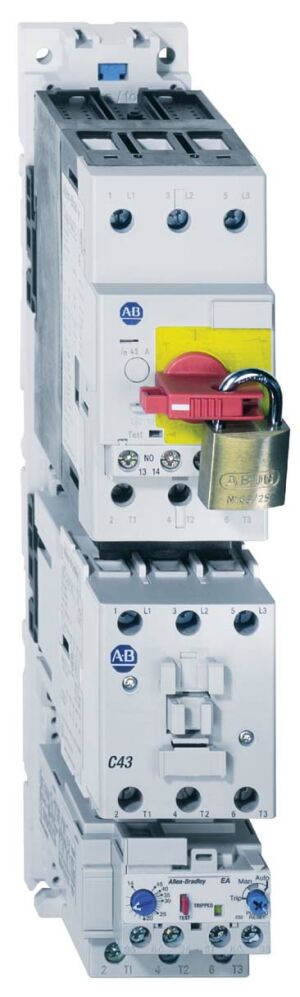

Allen-Bradley Allen-Bradley IEC Combination Starter 103T-CWD2-RC10X-E1D
Allen-Bradley Allen-Bradley IEC 9 A Reversing Contactor 104-C09UD22
Allen-Bradley Allen-Bradley IEC 9 A Reversing Contactor 104-C09UKJ22
Allen-Bradley Allen-Bradley Enclosed 1 - 1.6 A C Comb DOL…

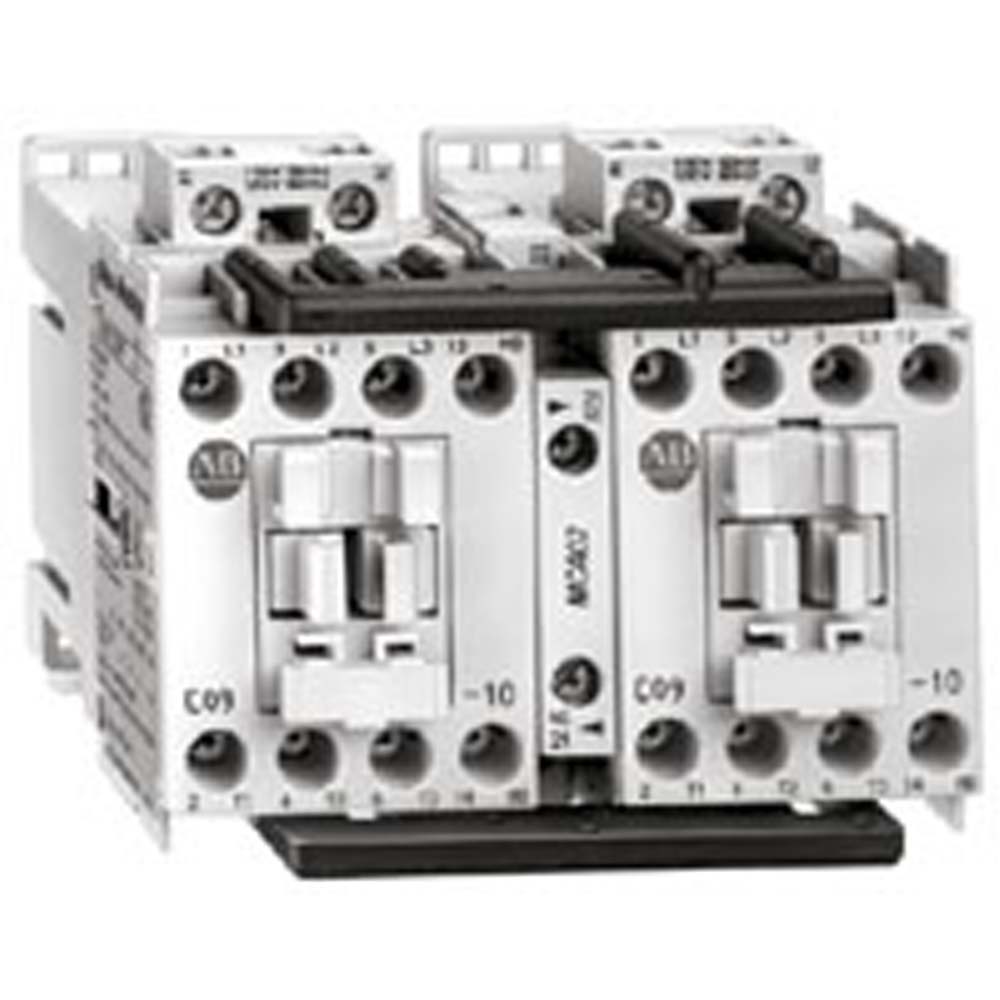

Allen-Bradley Allen-Bradley IEC 23 A Reversing Contactor 104-C23KY22
