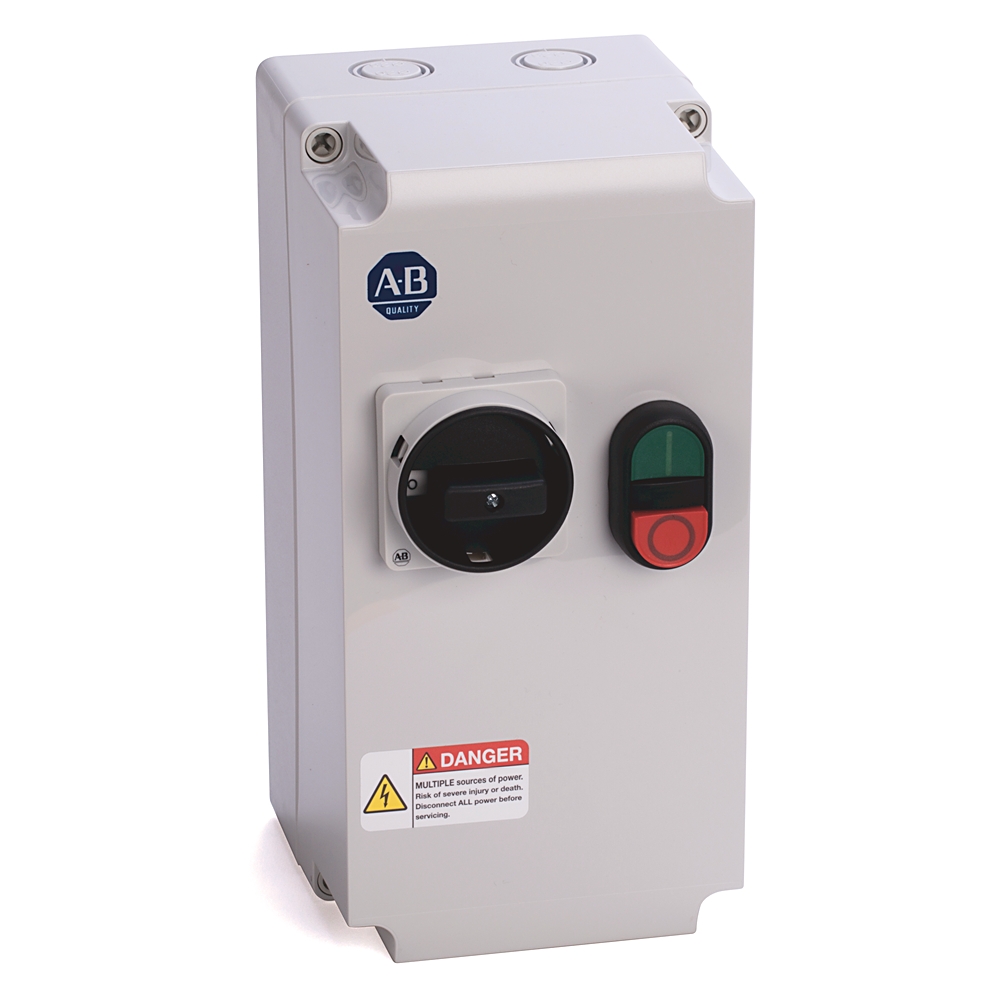

Allen-Bradley Enclosed 2.5 - 4 A C Comb DOL Starter 103C-09LB-DB40X-1M
Allen-Bradley 103C-09LB-DB40X-1M - industrial components - Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No.
The 103C-09LB-DB40X-1M from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Lifecycle Status: Discontinued and Build America, Buy America: No.
The specification set recorded for this part number covers Repair Options Available: No; Enclosure Type: Type 4/4X/12 - IP66 plastic - large; Degree of protection (IP): IP66; Degree of protection (NEMA): 4X; External reset possible: true; Factory installed models: Multifunction push button - START-STOP; Overload release current setting: 2.5 A; Rated control supply voltage at AC 50 Hz: 440 V; Rated control supply voltage at AC 60 Hz: 480 V; Release class: CLASS 10; Temperature compensated overload protection: true; Type of electrical connection for auxiliary- and control current circuit: Screw connection. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Circuit breaker frame size | 140M-D8E high break plus (Type E - standard version, magnetic + thermal) |
| Contactor size | 9 A |
| Coordinated breaking capacity (Iq) as a UL508 Type F combination motor controller (Type 1 coordination) | 65kA @ 480V |
| Coordinated breaking capacity (Iq) as IEC 60947-4-2 (Type 1 coordination) | 8kA @ 690V AC |
| Coordinated breaking capacity (Iq) as IEC 60947-4-2 (Type 2 coordination) | 65kA @ 400/415V AC |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Enclosure Type | Type 4/4X/12 - IP66 plastic - large |
| External reset possible | true |
| Factory installed models | Multifunction push button - START-STOP |
| Hp ratings as a UL508 Type F combination motor controller | 3/4Hp @ 230V, 3-phase |
| Lifecycle Status | Discontinued |
| Overload release current setting | 2.5 A |
| Rated control supply voltage at AC 50 Hz | 440 V |
| Rated control supply voltage at AC 60 Hz | 480 V |
| Rated output power as IEC 60947-4-2 | 3 kW @ 690V AC, AC-3 |
| Release class | CLASS 10 |
| Repair Options Available | No |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| With short-circuit release | true |
