1FG1510-5QF33-2AK1-Z D19+G20+G23+K07+Q92+W90+Y84
Request a Quote Email orderdesk@kkmsolutions.com for pricing and availability.
Sourced to exact specCross-checked against manufacturer part data
Fast quote turnaroundOur order desk replies within 1 business day
Worldwide shippingWe ship to your site, warehouse, or freight forwarder

1FG1510-5QF33-2AK1-Z D19+G20+G23+K07+Q92+W90+Y84

Brand: Siemens SKU: 1FG1510-5QF33-2AK1-ZD19G20G23K07Q92W90Y84 Mfr Part #: 1FG1510-5QF33-2AK1-ZD19G20G23K07Q92W90Y84
Ships Same Day* Worldwide Shipping

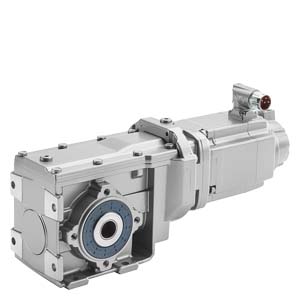

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox K89 motor type CT 600V AH80 Mmax=50.0 Nm Pn=2.95 kW hollow shaft with keyway H50 absolute encoder AS20DQI foot-mounted design; transmission i=19.46 N1max: 4500 r/min N2max: 231 r/min, M2max: 1560 Nm D19: changing mounting position E02: ang

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox K89 motor type CT 600V AH80 Mmax=50.0 Nm Pn=2.95 kW hollow shaft with keyway H50 absolute encoder AS20DQI foot-mounted design; transmission i=19.46 N1max: 4500 r/min N2max: 231 r/min, M2max: 1560 Nm D19: changing mounting position E02: angle of rotation Y axis 10° G20: radially reinforced output shaft bearing G23: seal longer service life K07: oil CLP PG VG220 Q92: plug position at bottom W90: customer-specific design Y84: customer-specific text/labeling plate customer-specific:(*)

Category 1FG1510
