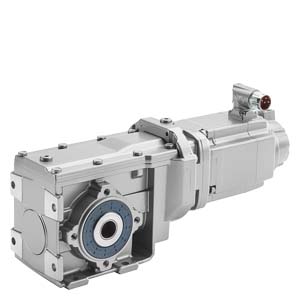

1FG1508-5RG53-2HG1-Z D13+E02+K12+K82+N34+Q95+R72+Y84
SIMOTICS S-1FG1 geared motor Bevel gearbox K79 Motor type CT 600V AH100 Mmax=150 Hollow shaft H40 Absolute encoder single-turn Absolute encoder 20 bit +12-bit multi-turn Enclosure fl.; Transmission ratio i=13.07 N1max=4350 rpm N2max = 333 rpm, M2max = 665 Nm D13=Mounting position M3-A E02=Angle of r
SIMOTICS S-1FG1 geared motor Bevel gearbox K79 Motor type CT 600V AH100 Mmax=150 Hollow shaft H40 Absolute encoder single-turn Absolute encoder 20 bit +12-bit multi-turn Enclosure fl.; Transmission ratio i=13.07 N1max=4350 rpm N2max = 333 rpm, M2max = 665 Nm D13=Mounting position M3-A E02=Angle of rotation Y axis 10° K12=Oil: CLP ISO PAO VG220 K82=Manual release with check N34=Spring-loaded brake M2BR=80 Nm Y84=Rating plate customer specifications Q95=Manual release bottom R72=Encoder for low temperature Customer-specific motor according to SMR-19-2017, Po(*)
| Category | 1FG1508 |
|---|
